enFORCE DSP1500 Main Unit Hardware Manual
(Rev. 4.0) PAGE 5 - 16
Chapter 5: Control Interfaces
5.4 Interbus S
®
Interface
InterBus S from Phoenix Contact is an open-ring based, distributed device I/O network. I/O data is
transmitted in frames that provide simultaneous and predictable updates to all devices in the
network. This interface board (S - version) has up to 512 bytes of assigned input data and 512 bytes
of assigned output data* (64bytes default). The 64 bytes of assigned I/O data allow a maximum of
512 inputs and 512 outputs per node. FEC I/O is assigned to the I/O points in these data areas
(some I/O will be designated spare). FEC Inputs match the discrete input layout. FEC Output
locations are programmed using the DSP User Console Software.
* When using Master boards where the PCP channel is NOT supported, the maximum number of
I/O will be 20 input bytes and 20 output bytes.
FEC integrates the Interbus S board manufactured by HMS Fieldbus Systems AB into the Main Unit
modular I/O board. For further technical information on the Interbus S interface go to the HMS
website. (www.hms.se)

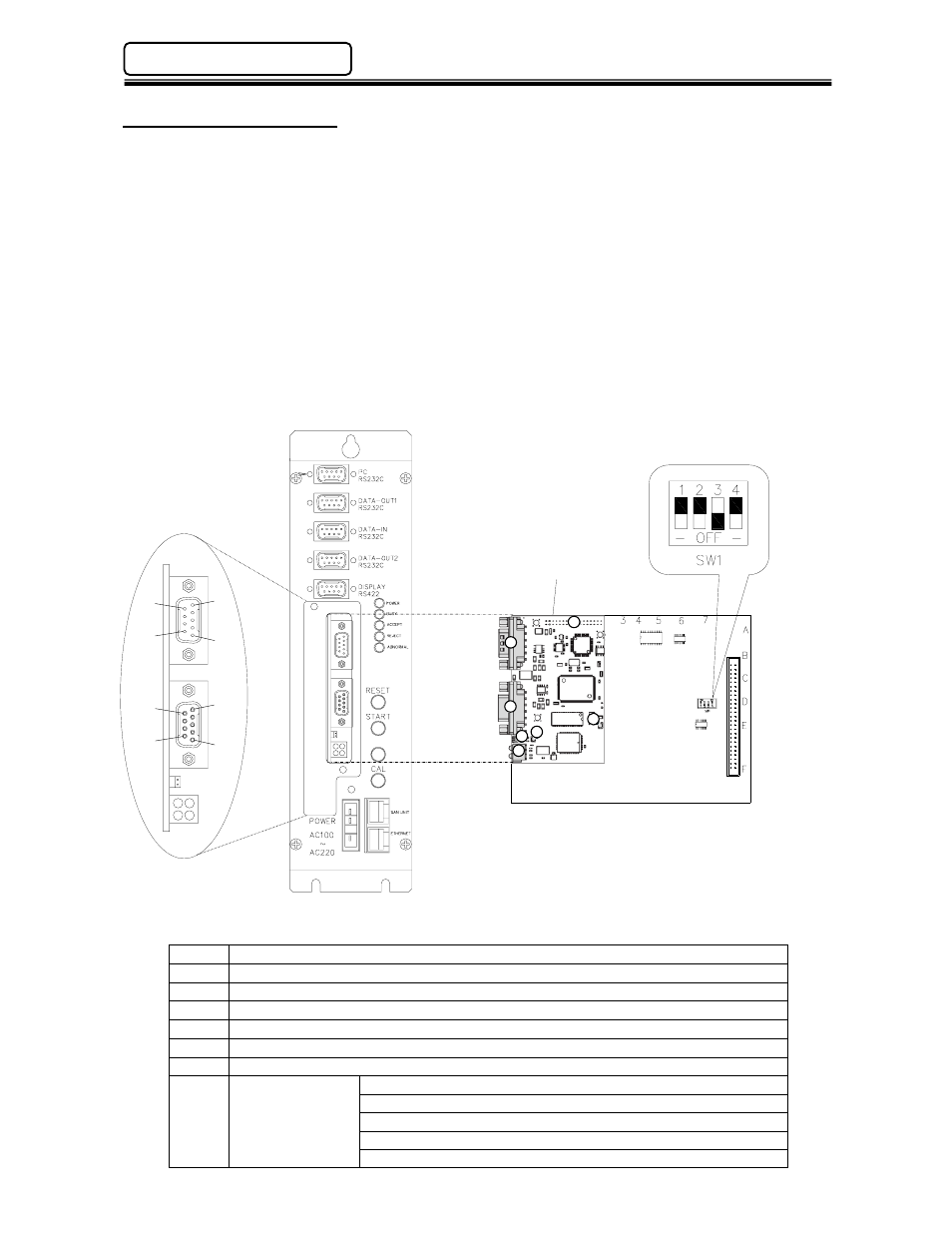

Item Description
1 Application Connector
2 BUS-IN Connector
3 BUS-OUT Connector
4 Baud Rate Jumper
5 Status LEDs (4)
6 UL LED - Green if voltage is OK at Bus
7 Watchdog LED
Red - (flashing @ 2Hz) - ASIC and FLASH ROM check fault.
Green (flashing @ 2Hz) - module not initialized.
Green (flashing @ 1Hz) - module initialized and running OK.
Red (flashing @ 1Hz) - RAM check fault.
Red (flashing @ 4Hz) - DPRAM check fault.
Daughter board
5
1
5
1 6
9
9
6
2
1
3
4
5
6
7
1
2 3
4
