enFORCE DSP1500 Main Unit Hardware Manual
PAGE 5 - 67 (Rev. 4.0)
Chapter 5: Control Interfaces
5.11 Ethernet-I/P Interface
The Ethernet-I/P communication interface allows slave connection to PLC networks that support
Ethernet communication via TCP/IP.
Maximum I/O data is 256 input bits & 256 output bits. FEC Inputs match the discrete input layout.
FEC Output location is programmed using the DSP User Console Software. Communication speeds
of 10/100M baud (auto-selectable) are supported.
FEC integrates the Ethernet-I/P board manufactured by HMS Fieldbus Systems AB into the Main
Unit’s modular I/O board. For further technical information on the Ethernet-I/P interface go to the
HMS website. (
www.hms.se )

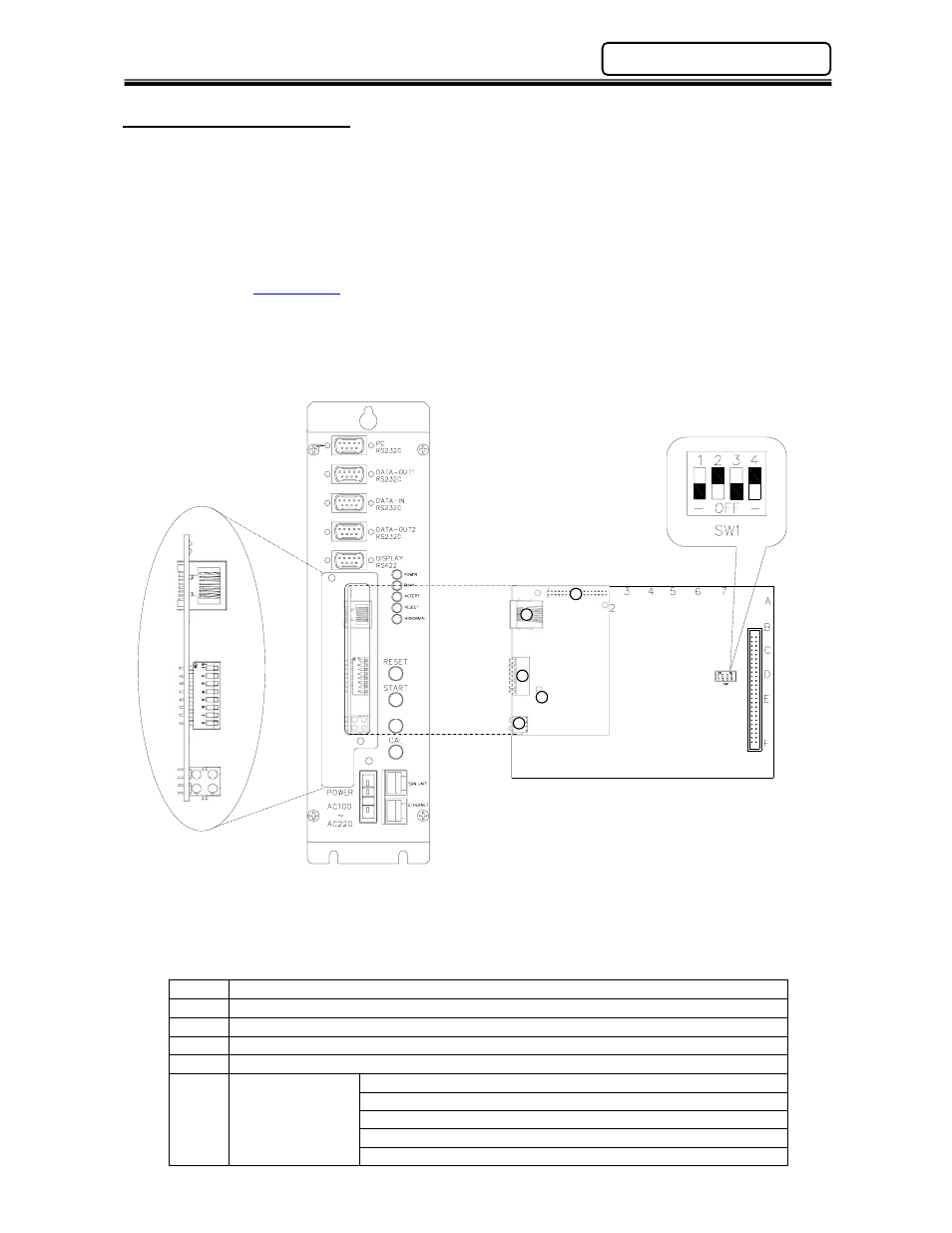

Item Description
1 Application Connector
2 Ethernet Connector
3 Configuration Switches
4 Status LEDs (4)
5 Watchdog LED
Red - (flashing @ 2Hz) - ASIC and FLASH ROM check fault.
Green (flashing @ 2Hz) - module not initialized.
Green (flashing @ 1Hz) - module initialized and running OK.
Red (flashing @ 1Hz) - RAM check fault.
Red (flashing @ 4Hz) - DPRAM check fault.
2
1
3
4
5
