FEC DSP1500 Main Unit User Manual
Page 28
enFORCE
DSP1500 Main Unit Hardware Manual
(Rev. 4.0)
PAGE 4 - 2
Chapter 4: Installation & Wiring

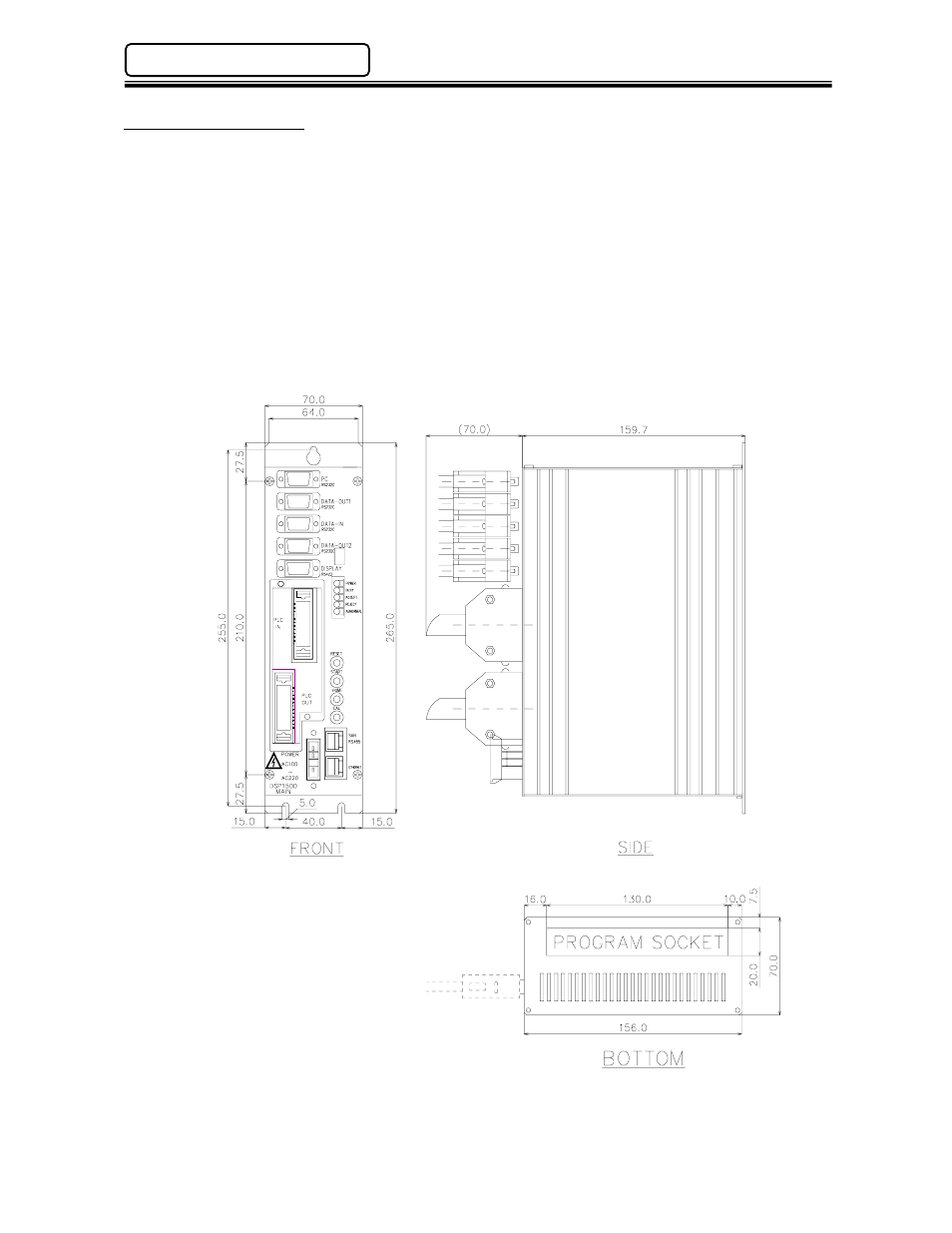

4.1 Unit Dimensions
Main Units must be mounted with a minimum clearance of 13mm on each side to allow proper heat
dissipation. Cable connections on the front of the units require 100mm of clearance. Allow a
minimum of 100mm clearance on the bottom of the unit for flash connector hook up when updating
firmware.
Mounting: Top
(1)
place
#8-32
screw
Bottom
(2)
places
#8-32
screw
Weight: 1.4
kg
