enFORCE DSP1500 Main Unit Hardware Manual
(Rev. 4.0) PAGE 4 - 12
Chapter 4: Installation & Wiring

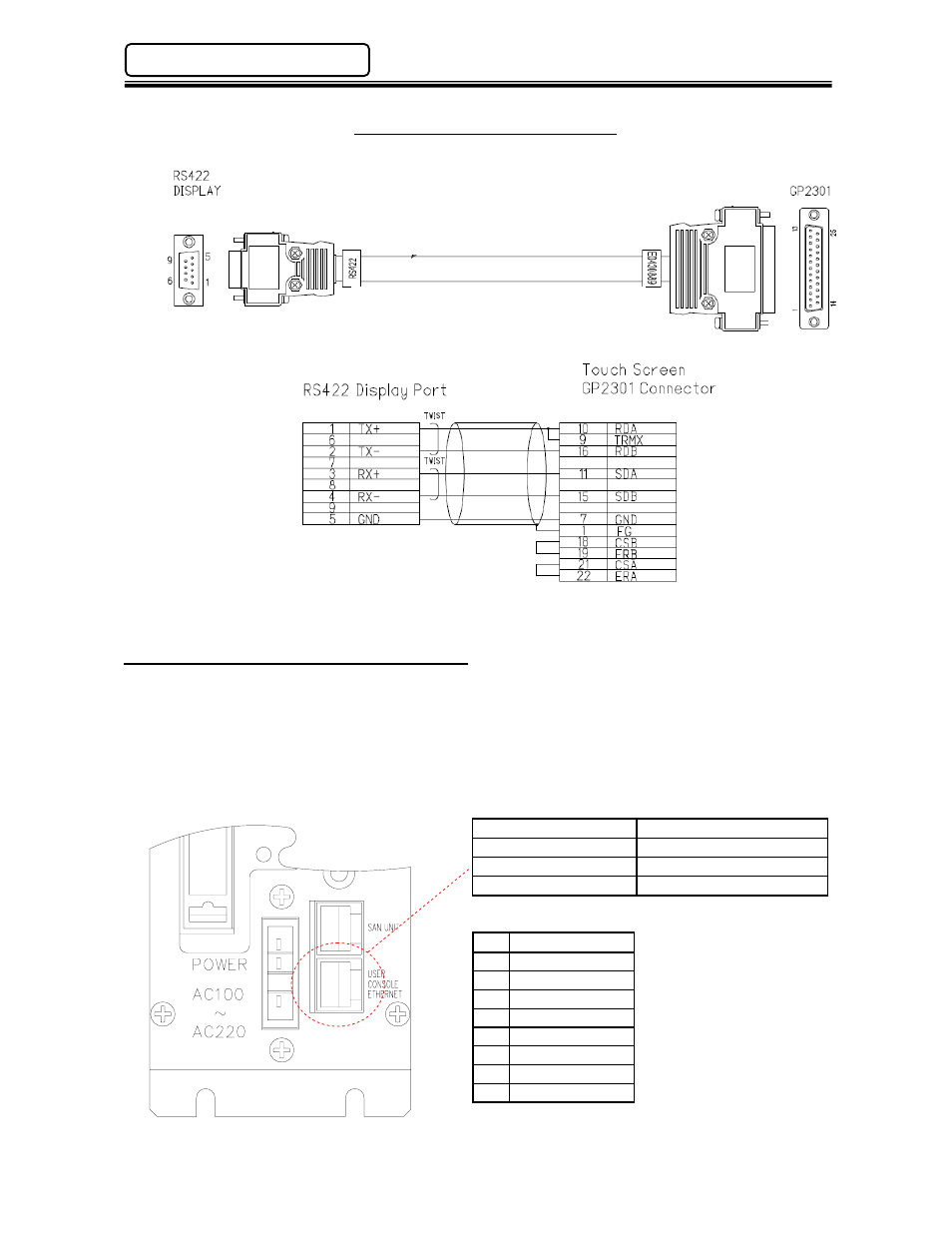

RS-422 CABLE DRAWING (DISPLAY)
4.7 User Console Ethernet Connection
The “User Console Ethernet” port is for communicating with the DSP Software in the User Console
PC. In order to use this connection you must first connect through the RS232 “PC” port and
configure this port using the DSP Software.
The connecting cable is a standard Ethernet “Crossover” cable (if connected to a PC or Straight
Cable if connected through an Ethernet switch) and can be purchased through FEC (Part
#FEB-1331) or through any authorized Ethernet cable supplier.
Ethernet port specifications (RJ45)
Speed
10/100Mbps (auto select)
Cable Std Cat 5 Ethernet
Protocol Proprietary
Operating Voltage
Ethernet Standard
Ethernet Wiring
Pin Signal Name
1 Tx+
2 Tx-
3 Rx+
4 -
5 -
6 Rx-
7 -
8 -
1
8
