Chapter 5: Control Interfaces

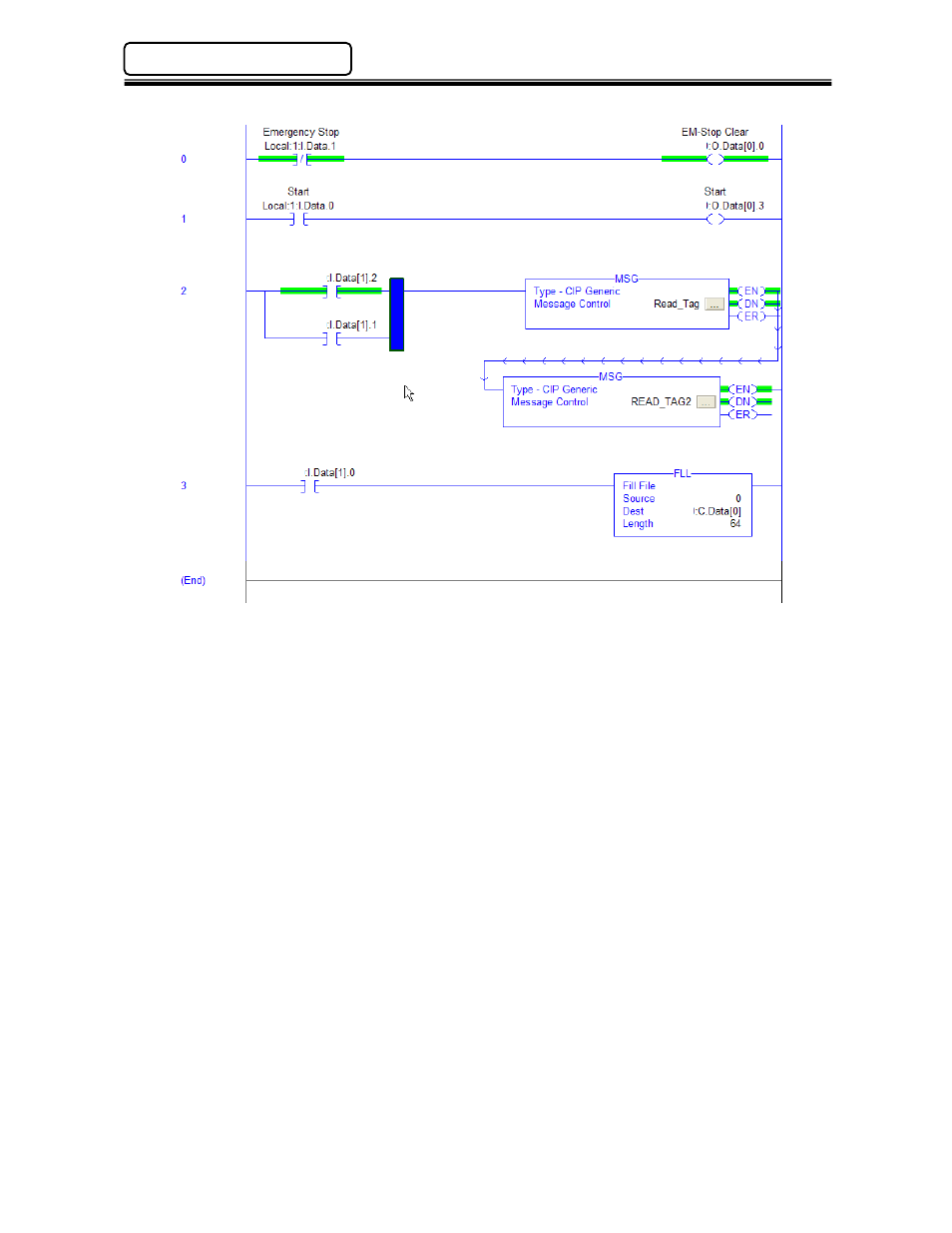

An example of a message transfer program is shown below.

This program transfers up to 800 bytes of pressing result data.
The first MSG command has “1” as the attribute and is sending the data into DSP1500:C
memory block. The second MSG command has “2” as the attribute and is sending the data into
another data memory block that would have been manually added when the second Read_tag
was added.

Note

: The above information contained in this procedure is meant for REFERENCE ONLY

when configuring an FEC Ethernet I/P interface using FEC DSP User Console Software, FEC
DSP1500 Press System with Main Unit, Rockwell Automation RSlogix 5000 software and
Allen- Bradley CompactLogix L32E hardware. Actual application configuration may differ from
this set-up.

DSP1500

Pressing Accept

Pressing Reject

DSP1500

Press Busy
