Micromod Micro-DCI: 53MC5000 PLC AND PRINTER INTERFACES User Manual
Page 44
STATION NUMBER
ASYNCHRONOUS LINK NETWORK LINK
FEATURES
COMMUNICATION RATE
RS-232-C/RS-422-A
ASYNCHRONOUS LINK
COMMUNICATION
RATE
NETWORK
LINK
SELECTION
SW8 SW1 SW2 SW3 SW4 SW5 SW6 SW7
RS-232C
FULL DUPLEX STATION NUMBER 015 9600
BAUD
BCC ERROR
57,600 PEER
CHECKING
BITS PER COMM
SECOND LINK
EVEN PARITY (KF2 MODULE’S
NETWORK LINK)
NO EMBEDDED
RESPONSES
PASS ANY RECEIVED
DIAGNOSTIC COMMANDS
DETECT AND IGNORE
TO THE ATTACHED
DUPLICATE MESSAGES
ASYNCHRONOUS DEVICE
IGNORE HANDSHAKING
SIGNALS
NOTES: POWER UNIT OFF; SELECT SWITCH SETTINGS; THEN POWER UNIT UP, BECAUSE
THE STATUS OF THE COMMUNICATION OPTION SWITCHES IS ONLY READ AT
POWER-UP.
THE SWITCH SETTINGS ILLUSTRATED WERE THE ACTUAL KF2 COMMUNICATION
SELECTIONS FOR A TEST UNIT. IT IS RECOMMENDED THAT
THESE SAME SETTINGS BE USED WHENEVER POSSIBLE.

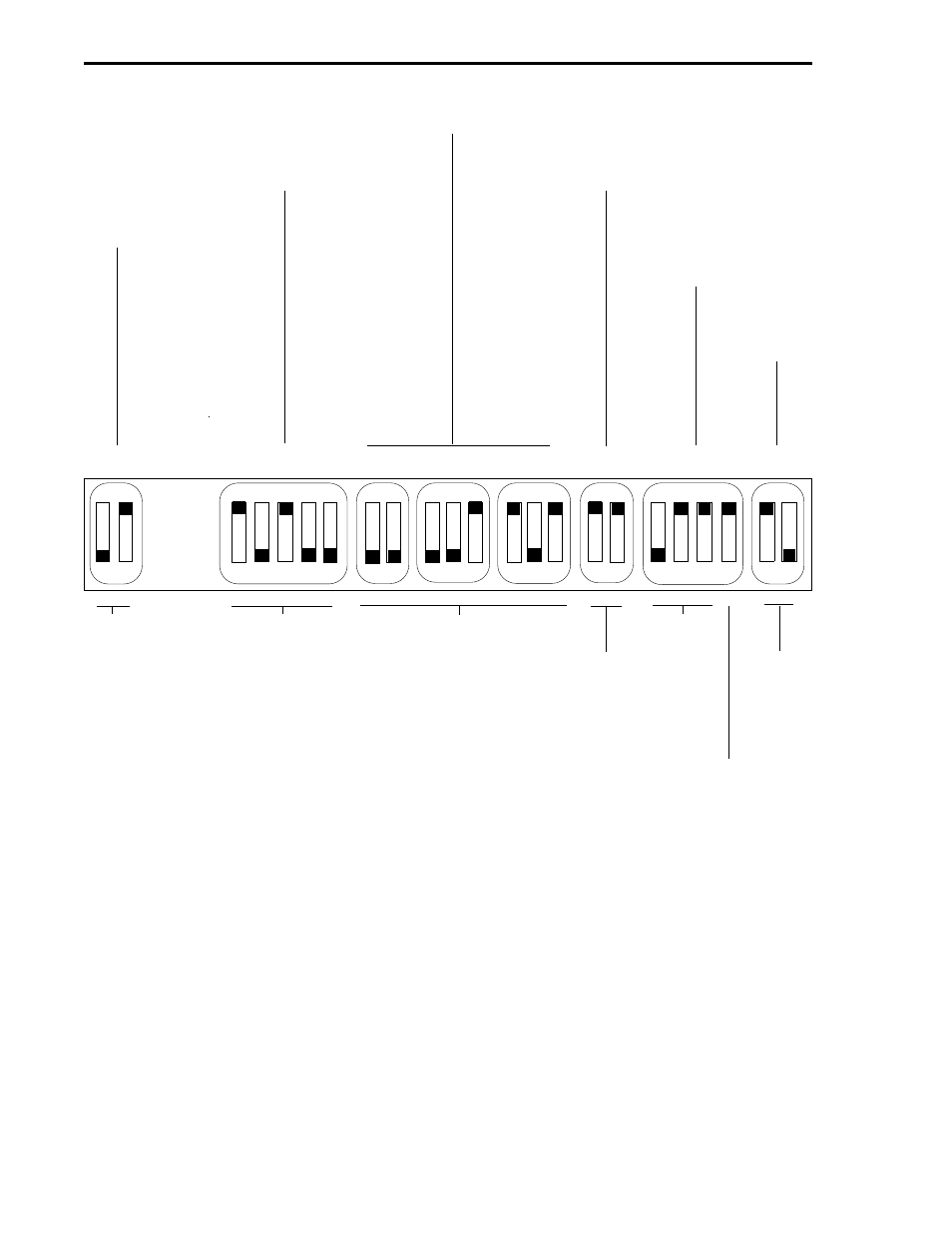

Figure 4-5. Allen-Bradley KF2 Communication Option Switches
ON
OFF
53MC9015 53MC5000 PLC and Printer Interfaces
4-10
