SD-53-2675
Printer/PLC
Option
16DI/DO
or
6DI/4DO
Micro-
Link B Expansion Board Slots
DDI-A DDI-B DIDO MLBC 5 4 3 2 1
No No No Yes MLAC MLBC
No No Yes No DIDO MLAC
No No Yes Yes DIDO MLAC MLBC
Yes No No No APB MLAC
Yes No No Yes APB MLAC MLBC
No Yes No No MLAC APB
No Yes Yes No DIDO MLAC APB
Yes Yes No No APB MLAC APB
Notes: DDI-A/B = Digital Device Interface-A/B, APB = Auxiliary Processor Board, DIDO = 16 Digi-
tal Input/Digital Output or 6 Digital Input/4 Digital Output Board, MLBC = MicroLink B Communica-
tions Board, MLAC = MicroLink A Communications Board (It is required if there is an MLBC Board.
It is assumed in the example that the PCS always has a minimum MicroLink A Communications op-
tion).

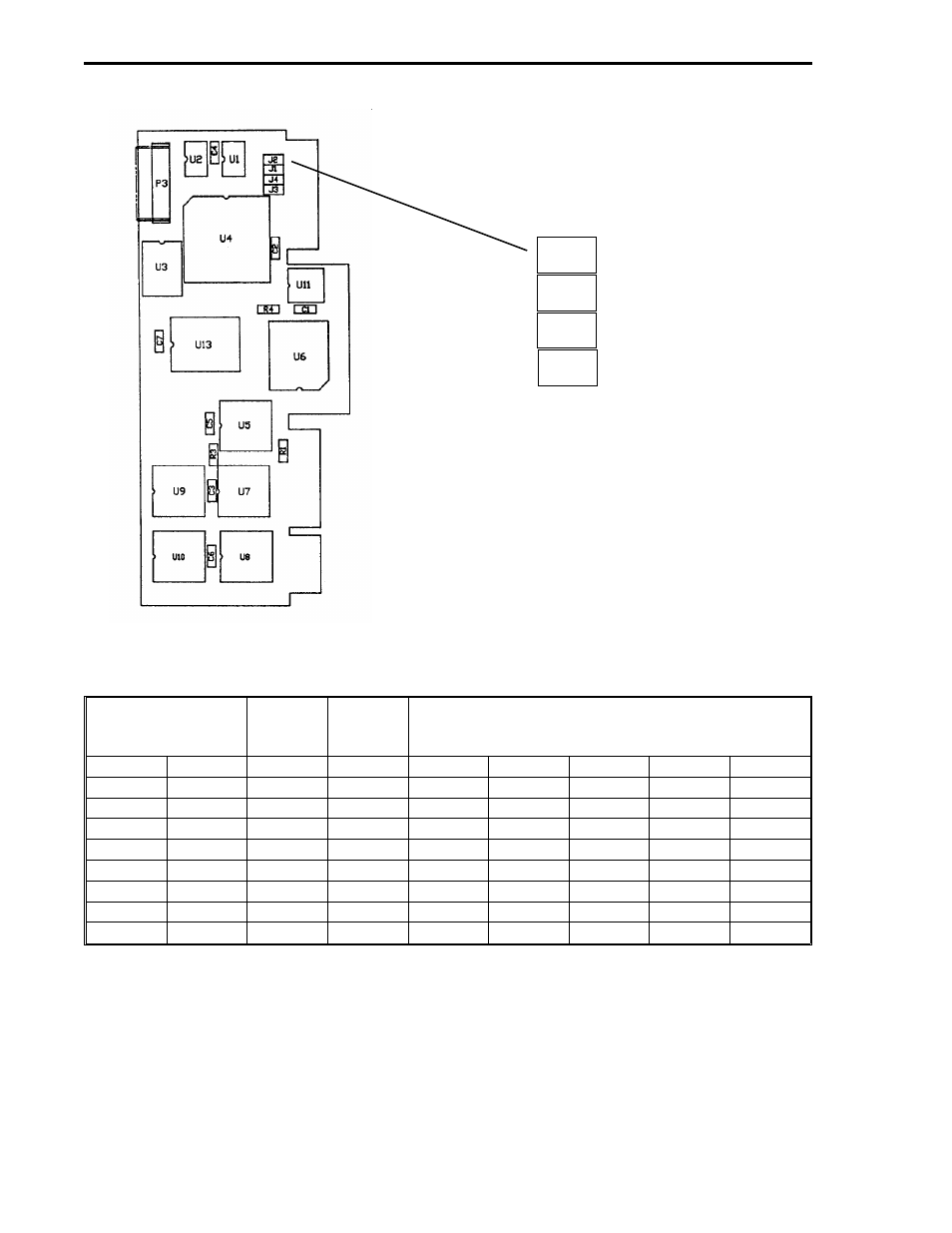

Figure 10-2. Auxiliary Processor Board (APB)
READING LINE 5 OF THE TABLE BELOW:
IF THE CONTROLLER WERE CONFIGURED WITH THE
PRINTER/PLC DDI-A OPTION AND MicroLink B
COMMUNICATIONS OPTION, THEN THE EXPANSION
BOARD WOULD HAVE AN APB OPTION CARD IN
SLOT 3, AN MLAC OPTION CARD IN SLOT 2, AND AN
MLBC OPTION CARD IN SLOT 1.
APB JUMPER CONFIGURATION FOR DDI-A
AND DDI-B PLC/PRINTER OPTIONS
•
•
•
•
•
•
•
•
J2 T -
J1 R -
J4 T+
J3 R+-
53MC9015 53MC5000 PLC and Printer Interfaces
10-4
