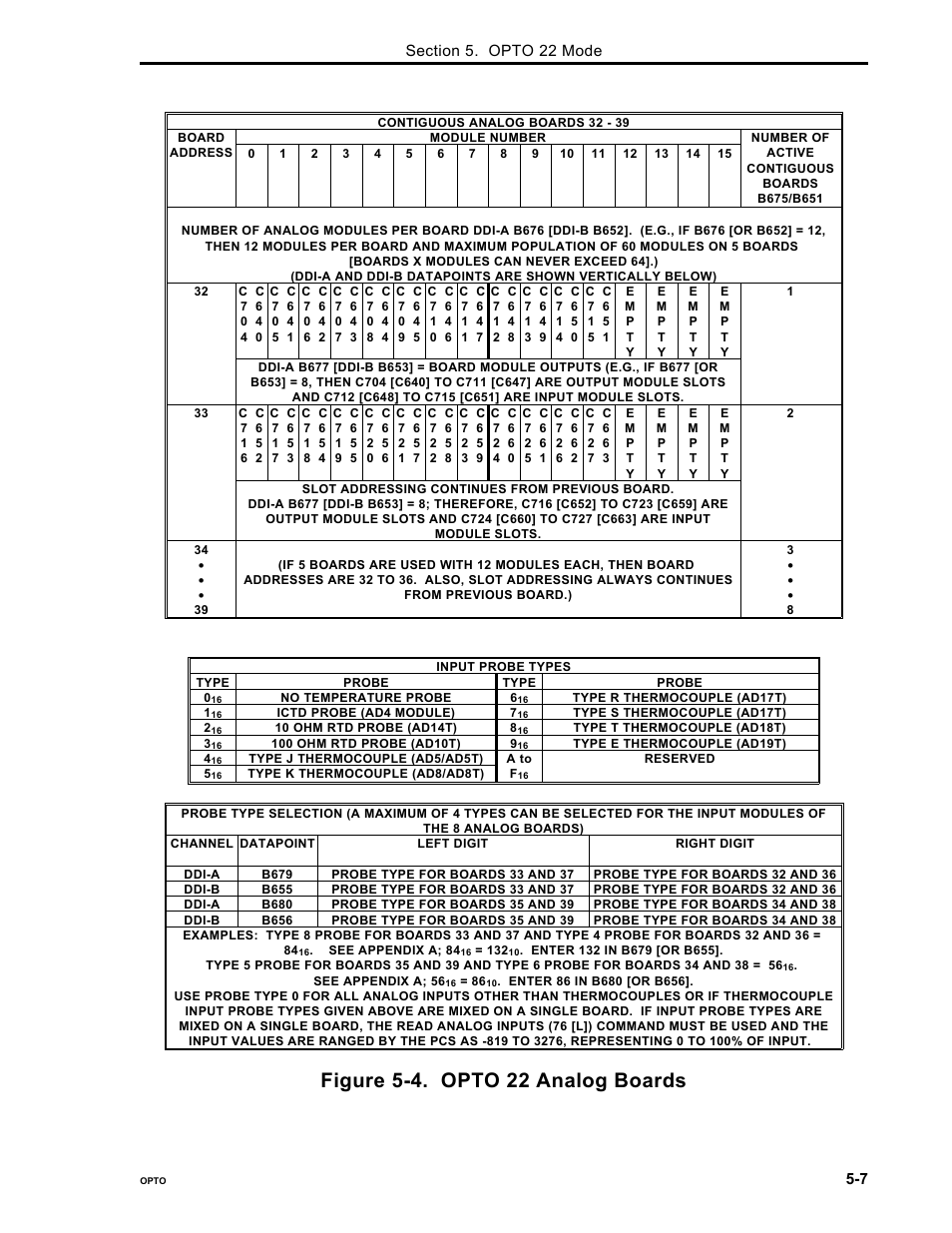

Figure 5-4. opto 22 analog boards – Micromod Micro-DCI: 53MC5000 PLC AND PRINTER INTERFACES User Manual
Page 53
