MAP Technology Maintenance and Cleaning
PN 89-00002-00-150 Rev. A 7 - 9
Change Fuses
‹
To replace fuses on the Luminex analyzer or the Luminex XYP
instrument.
1. Turn off the power switch on both the Luminex analyzer and the
Luminex XYP.
2. Unplug the power cord from the analyzer or instrument,
depending on which fuses you are changing.
3. Use a small, flathead screwdriver to open the power module door.
See Figure 7-6.
4. Remove the red cartridge. Check both fuses for damage.
5. Replace damaged fuses with Luminex CN-0019-01, ordered
through Luminex.
6. Push the cartridge back into the power module, then push the
power module door back into place.

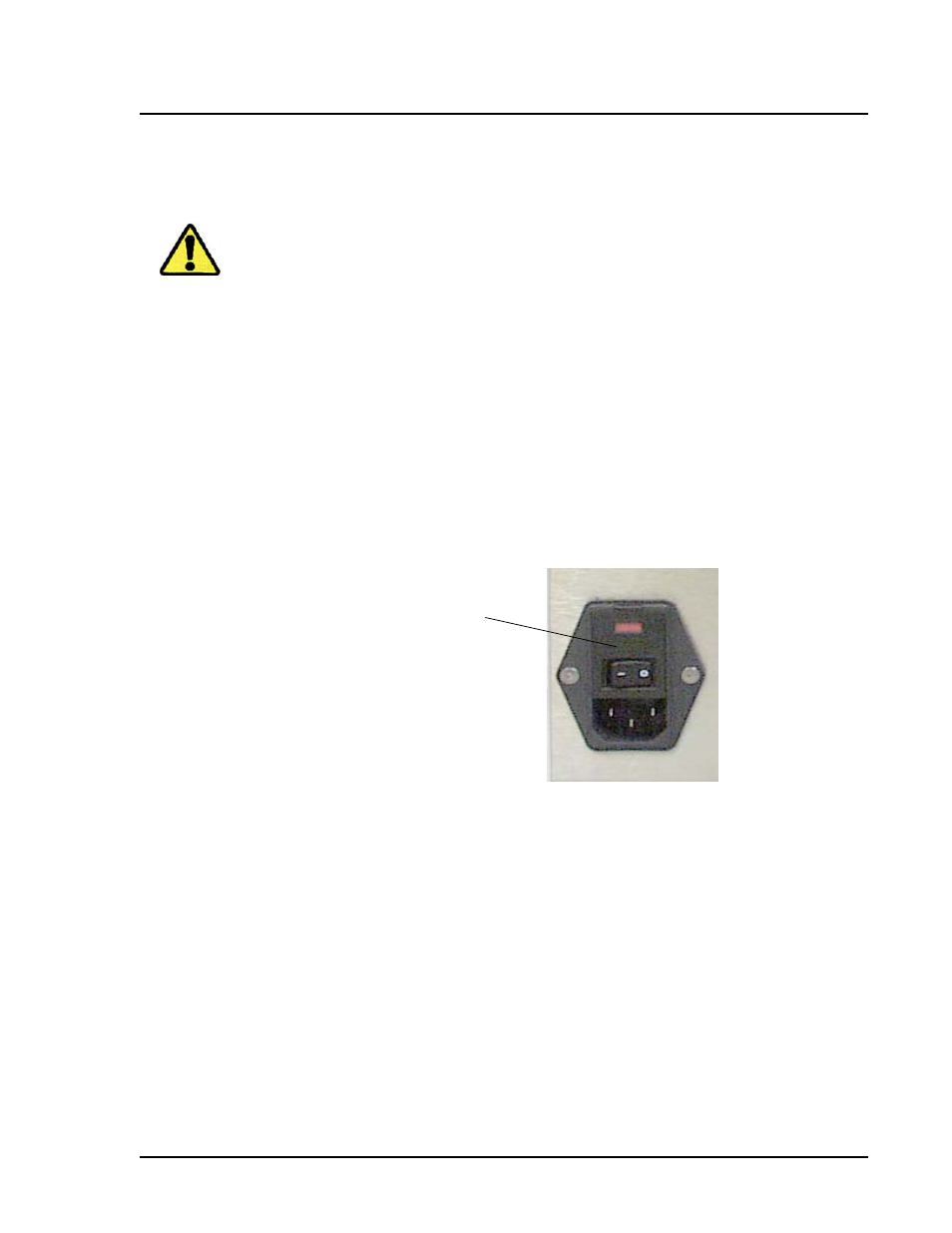

Figure 7-5. Power Module
Adjust Sample
Probe Vertical
Height
The vertical height determines how far the sample probe goes into
the sample tube or sample well when aspirating a sample. It is set
when the Luminex analyzer is shipped. Readjust the vertical
alignment any time the instrument is moved, the probe is removed or
replaced, the type of plate you are running changes, or any time
sample acquisition is slow or sporadic. To adjust the sample probe
vertical height, refer to “Adjusting the Sample Probe Height” on
page 4-4.
DANGER! To avoid serious injury
or death by electric shock, you
must turn off the system and
unplug it from the wall outlet.
Power Module Door
