Fluidics
Luminex XYP Sample Probe: A stainless steel sample probe
that acquires the sample..
Cheminert ® fitting: The fitting attaches the sample probe to the
sample tubing. Disconnect this fitting when you remove the sample
probe. See Figure 3-2.

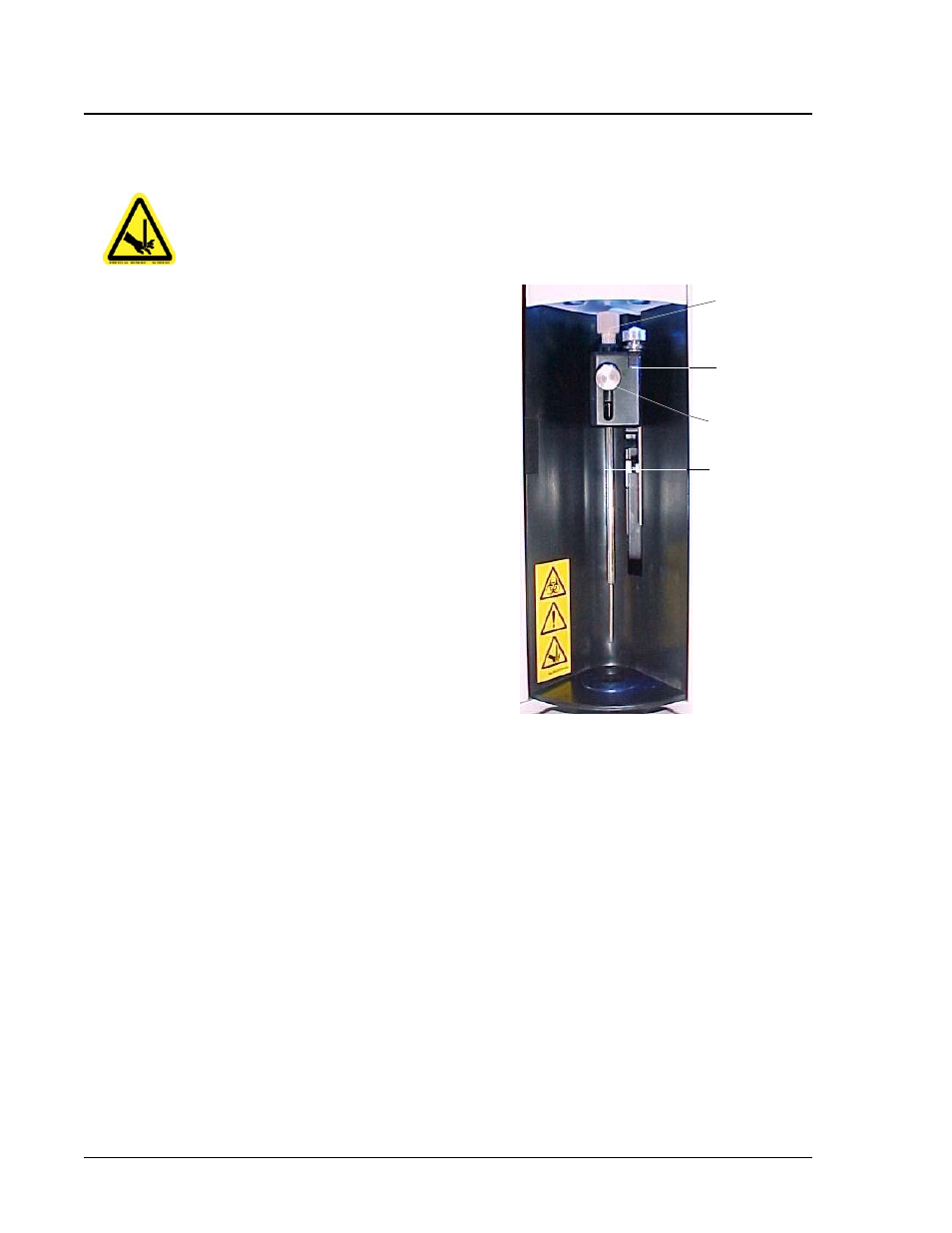

1. Cheminert Fitting 3. Probe Adjustment Screw
2. Probe Holder 4. Luminex XYP Instrument Sample Probe
Figure 3-2 Fluidics Components
Access doors: The Luminex 200 analyzer has three access doors.
Two of the access doors are on the front, and the third is on the back.
The front left access door provides access to the sheath filter. The
front center access door provides access to the syringe. The rear
access door provides access to the air intake filter. See Figure 3-3.
Warning: During operation,
this system contains exposed,
moving parts which can cause
puncture wounds. Risk of per-
sonal injury is present. Keep
hands and fingers away from the
sample probe.
Note: The probe shield is not in
place for this photo. You should
always replace the probe shield
before operating the system.
