PN 89-00002-00-150 Rev. A 4 - 1
Installation
Luminex 200
System Installation
Ensure that the facility complies with all system and safety
requirements. If you are using the optional Luminex SD, install it
after completely installing the Luminex analyzer and the Luminex
XYP. See the Luminex Sheath Delivery System appendix for
instructions.
‹
To set up and start up the Luminex 200 system:
1. Unpack the Luminex analyzer, Luminex XYP instrument, and
the PC. Review the hardware list on page 3-1 and identify each
system component.
2. Place the Luminex XYP on a clean, flat surface and remove the
blue shipping pin. Leave the black knob in place.
3. Attach the power cord and the communication cable to the
Luminex XYP. Do not plug the power cord into the outlet.
4. Maneuver the Luminex analyzer until the hole in the alignment
plate lines up with the black knob of the Luminex XYP.

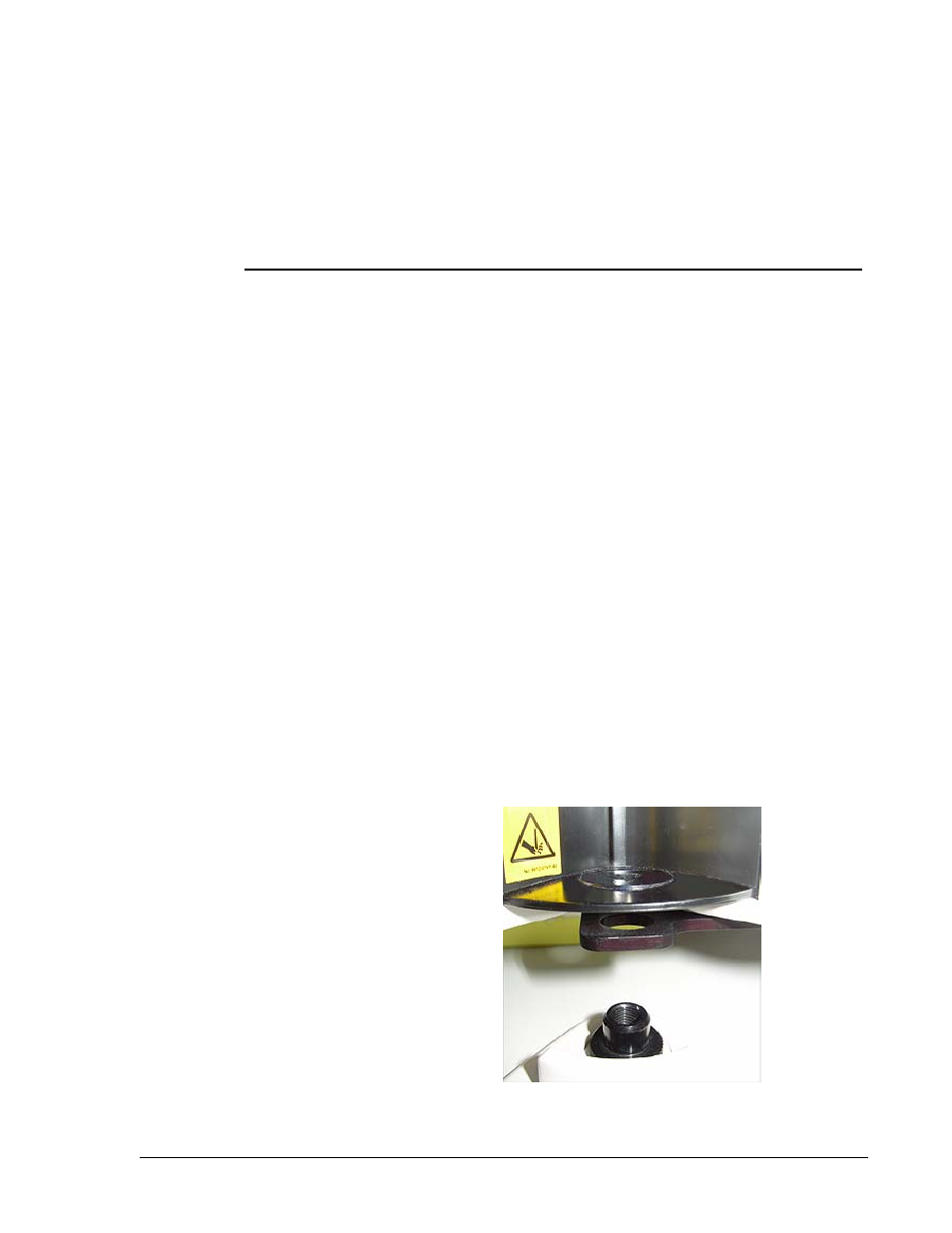

Figure 4-1. Alignment Plate and Knob
4
Note: The Luminex 200 System is
too heavy for one person to lift
alone. Two people should unpack
and lift the system to the
workbench.
