Luminex 200 User Manual for LDS Version 1.7
x
MAP Technology
3 - 10
PN 89-00002-00-150 Rev. A
Syringe: The syringe delivers a sample from the 96 well microtiter
plate to the cuvette. It is located in the compartment behind the
center door.
1. Syringe Seal 2. Syringe

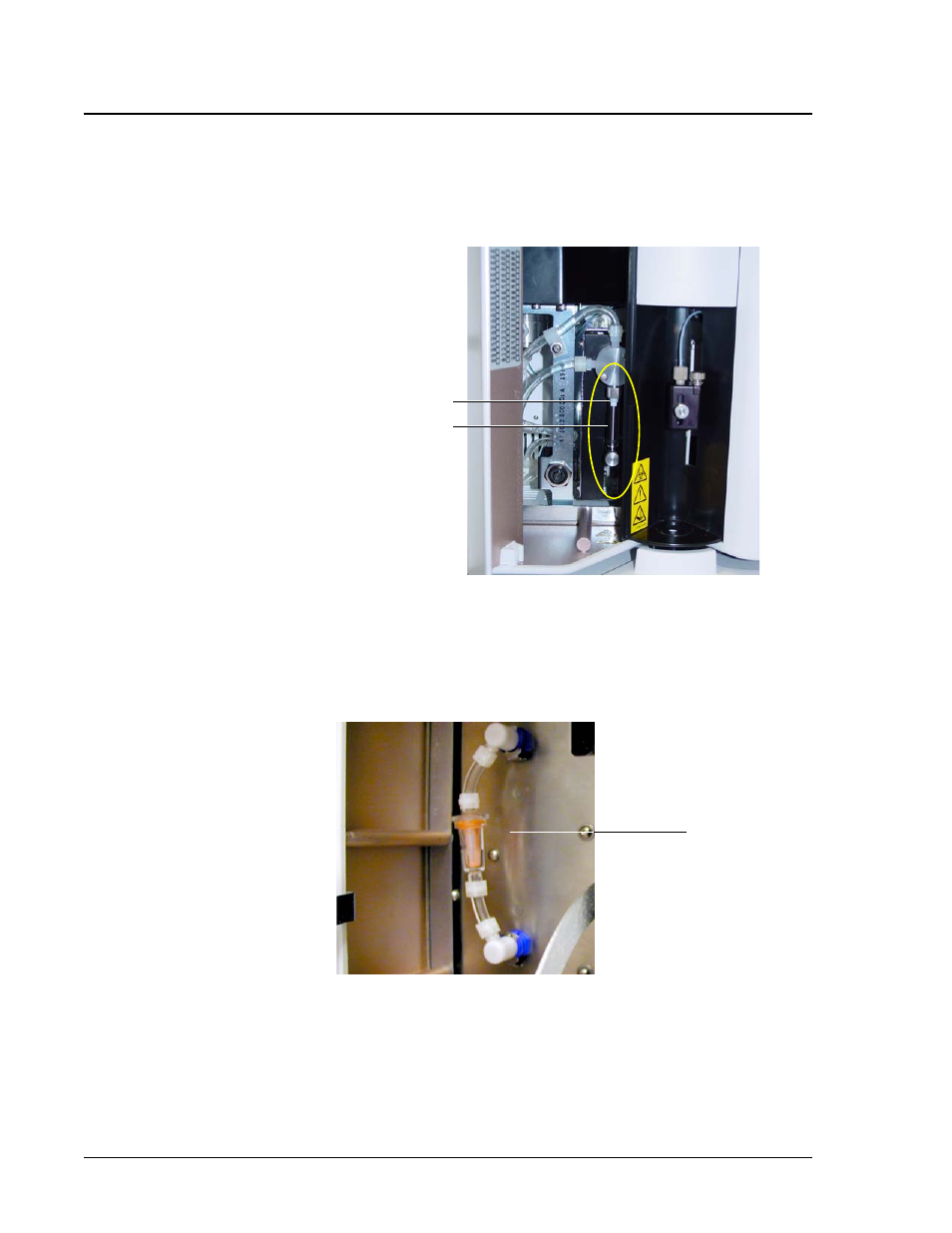

Figure 3-5 Syringe and Syringe Seal
Sheath filter: The sheath filter removes particles greater than 10
microns in diameter from the sheath fluid. It is located behind the left
access door.
Figure 3-6 Sheath Filter Assembly
Air, waste fluid, and sheath fluid connectors: The air, waste,
and sheath connectors, located on the left side of the analyzer,
connect to the SD system and waste fluid containers using clear
tubing. The air connector is green, the sheath fluid connector is blue,
and the waste fluid connector is orange.
1
2
Sheath Filter
Assembly
