Software Utilities

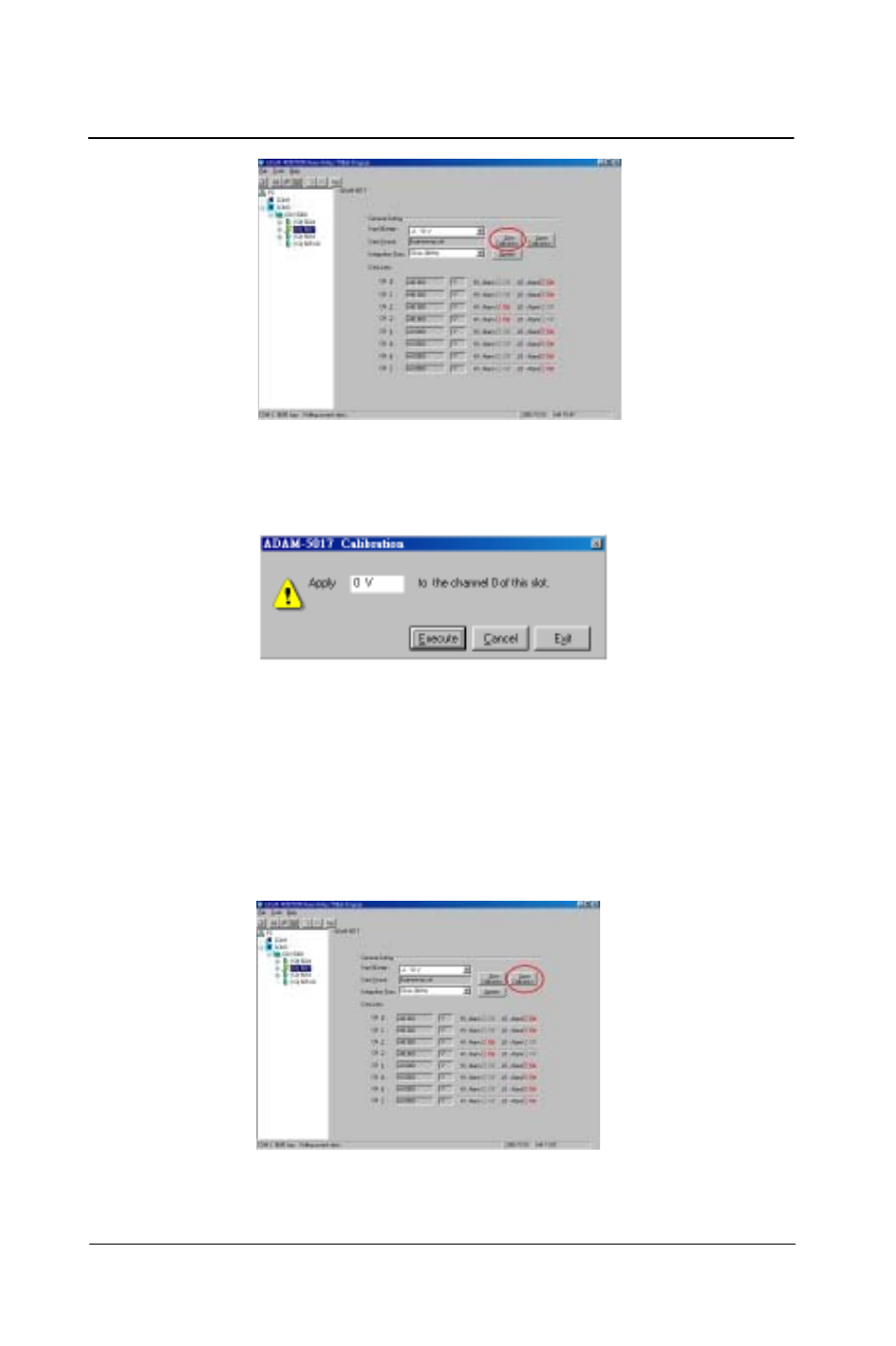

Figure 5-7 Zero Calibration
(5). Click the Execute button to begin the calibration
Figure 5-8 : Execute Zero Calibration
Span Calibration:
(1). Use a precision voltage source to apply a calibration voltage to the
modules’ terminals of the specific channel.
(2). Click the “Span Calibration” button. See Figure 5-9
Figure 5-9 : Span Calibration
5-16 ADAM-5000
