Grounding Reference
• Never stripping too long of the plastic cable cover. Otherwise, this
improper status will destroy the characteristic of the Shielded-
Twisted-Pair cable. Besides, those nude wires are easy to adhere the
noise.
• Cascade those shields together by “Soldering”. Please refer
to following page for further detail explanation.
• Connect the shield to Frame-Ground of DC power supply to
force those adhered noise flow to the ‘frame ground’ of the DC
power supply. (The ‘frame ground’ of the DC power supply
should be connected to the system ground)

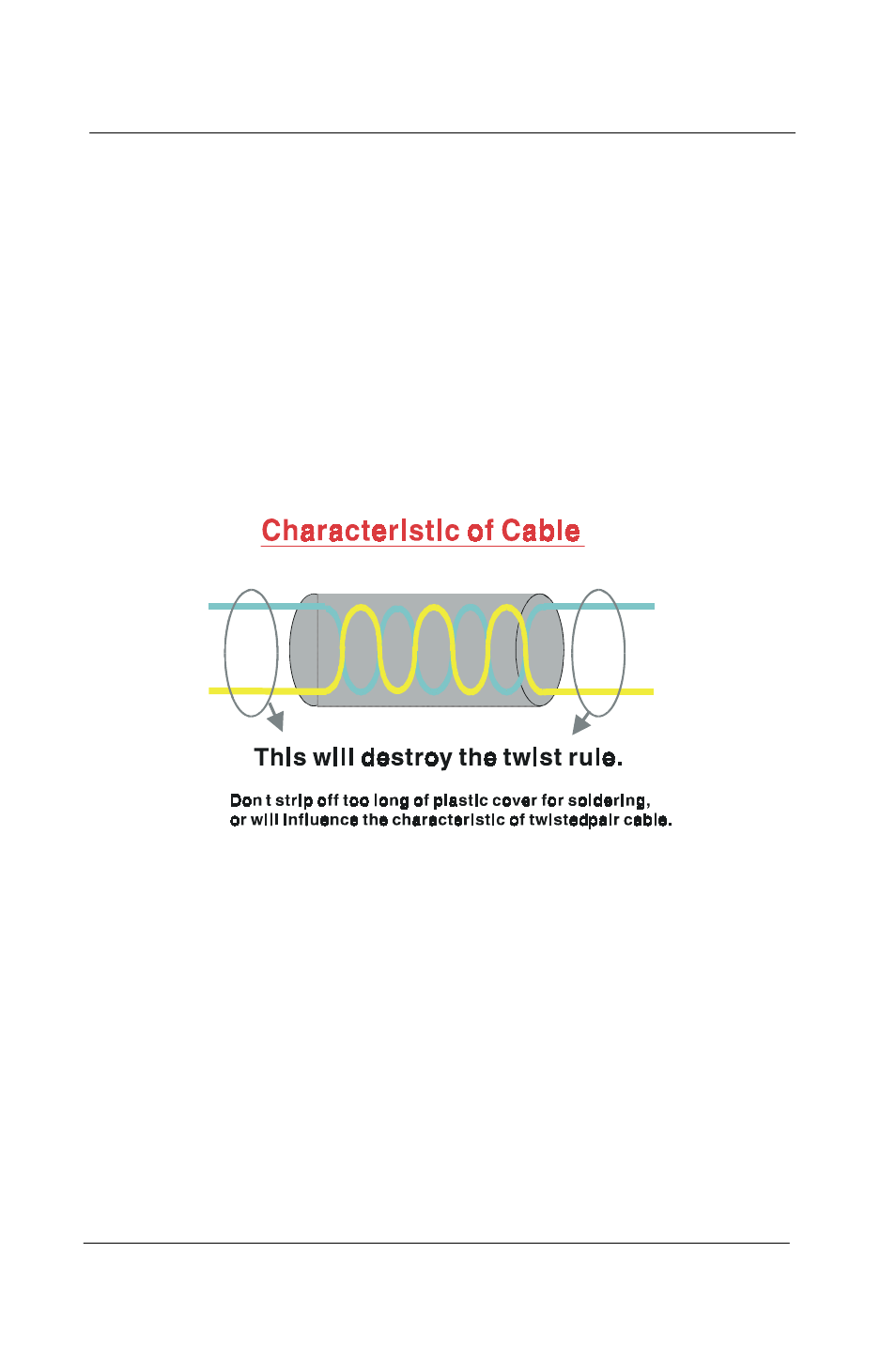

Figure F-12 :The characteristic of the cable
• The characteristic of the cable
Don’t strip off too long of plastic cover for solderinF. Otherwise will
influence the characteristic of the Shielded-Twisted-Pair cable, and will
make an easy way to adhere noise.
