Command Set 5017/5018
Analog Input
$aaSiArrff
Name Configuration
Description Sets slot index, input range, data format and integration
time for a specified analog input module in a specified
system.
Syntax $aaSiArrff(cr)
$ is a delimiter character.
aa (range 00-FF) represents the 2-character hexadecimal
address of the ADAM-5000 system you want to
configure.
Si identifies the I/O slot you want to configure.
A is I/O module configuration command.
rr represents the 2-character hexadecimal code of the
input range. (See Appendix B)
ff is a hexadecimal number that equals the 8-bit parame-
ter representing data format. Bits 0 and 1 represent data
format. Bit 7 represents integration time. The layout of
the 8-bit parameter is shown in Figure 6-3. The other bits
are not used and are set to 0.
(cr) is the terminating character, carriage return (0Dh)

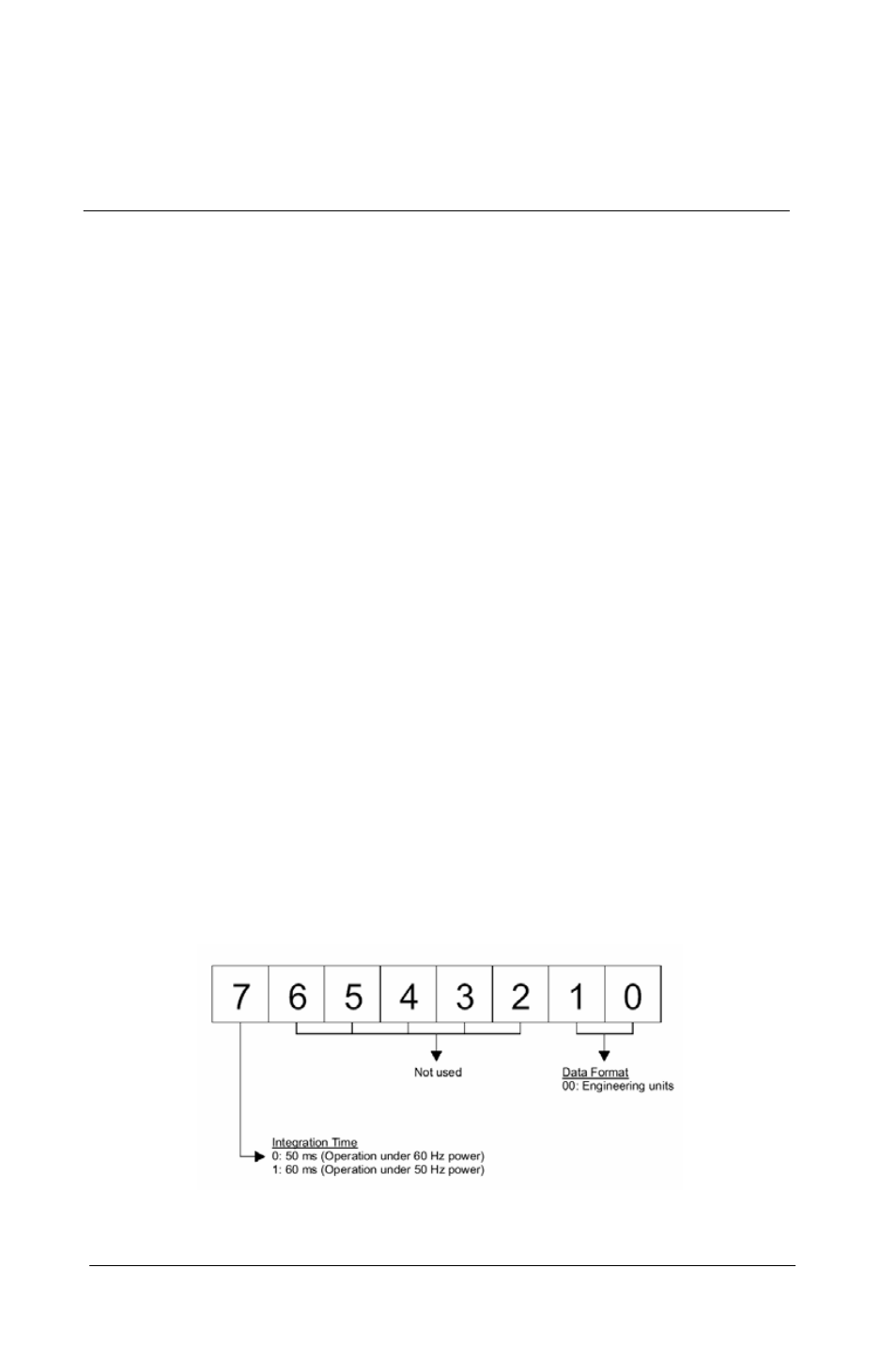

Figure 6-3 Data format for 8-bit parameters
6-38 ADAM-5000
