Chapter 2
A complete description of the diagnostic indicators and how to use them
for troubleshooting is explained in Chapter 7.

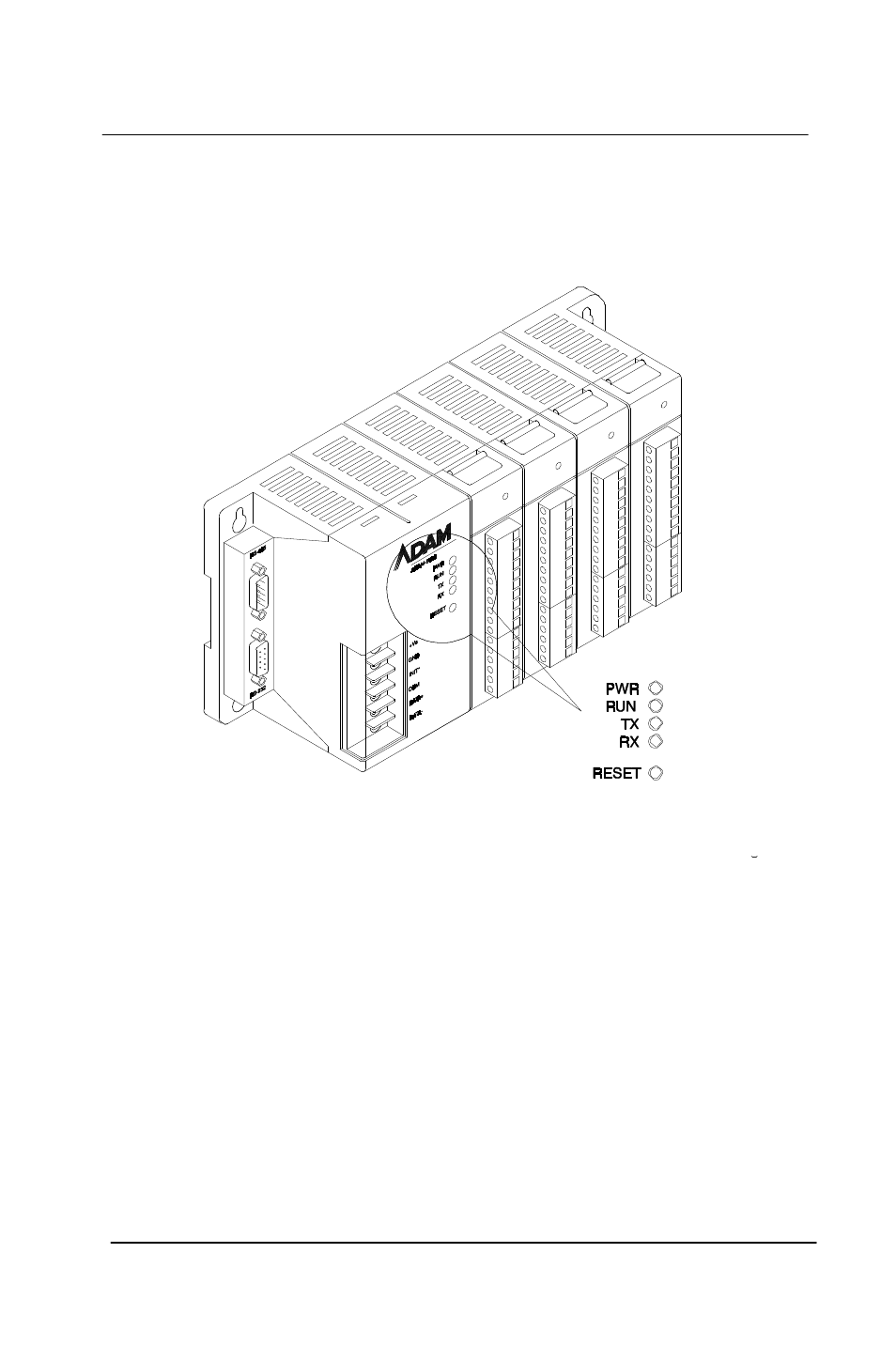

Figure 2-1 ADAM-5000 Diagnostic indicators
Setting the Network Address Switch
Set DIP switch 8 to OFF to install Avvantech Protocol , Set the network
address using the 8-pin DIP switch. Valid settings range from 0 to 127
(00h to 7Fh) where ON in any of the 8 DIP switch positions equates to a
binary 1, and OFF equates to a binary 0.
Note: 00h is special for initial setting. If 00h is setting by user, the baud
rate setting will be fixed to 9600 bps. It is recommand to setting the range
from 1 to 127 (01h to 7Fh).
Setting the Network Address Switch
Set DIP switch 8 to ON to install Modbus function , Set the Modbus
address using the 8-pin DIP switch. Valid settings range from 0 to 127
(00h to 7Fh) where ON in any of the 8 DIP switch positions equates to a
binary 1, and OFF equates to a binary 0.
ADAM-5000 2-3
