Software Utilities
5.1.8 Load Module’s Configuration File
• Reload previous settings. Sets the input range, baud rate, data
format, checksum status and/or integration time and alarm status
for a specified analog input module.
• Sets the output range, baud rate, data format, checksum status and
slew rate for a specified analog output module.
• Sets the baud rate and checksum status for a digital I/O module.
• Sets the input mode, baud rate, checksum status and/or frequency
gate time, input signal mode, gate mode, alarm status, etc. for a
specified counter/frequency module.
Note: Baud rate and checksum can only be changed in the
INIT* state. Changed settings can only take effect
after a module is rebooted.

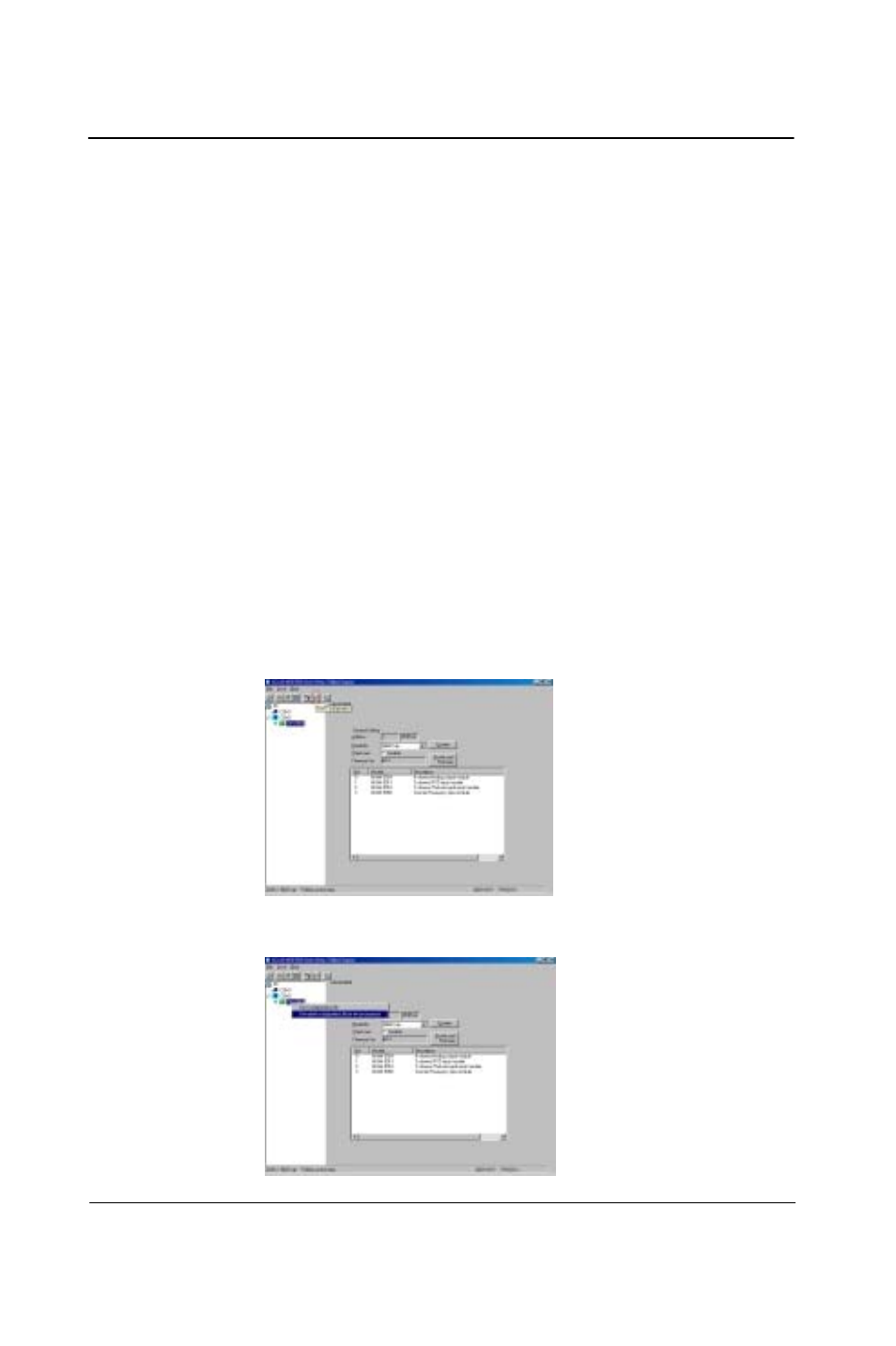

There are three ways to load a configuration file:
1. Click the Toolbar button:
2. Click the right mouse button:
5-12
ADAM-5000
