ADAM-4000/5000 System Grounding Installation

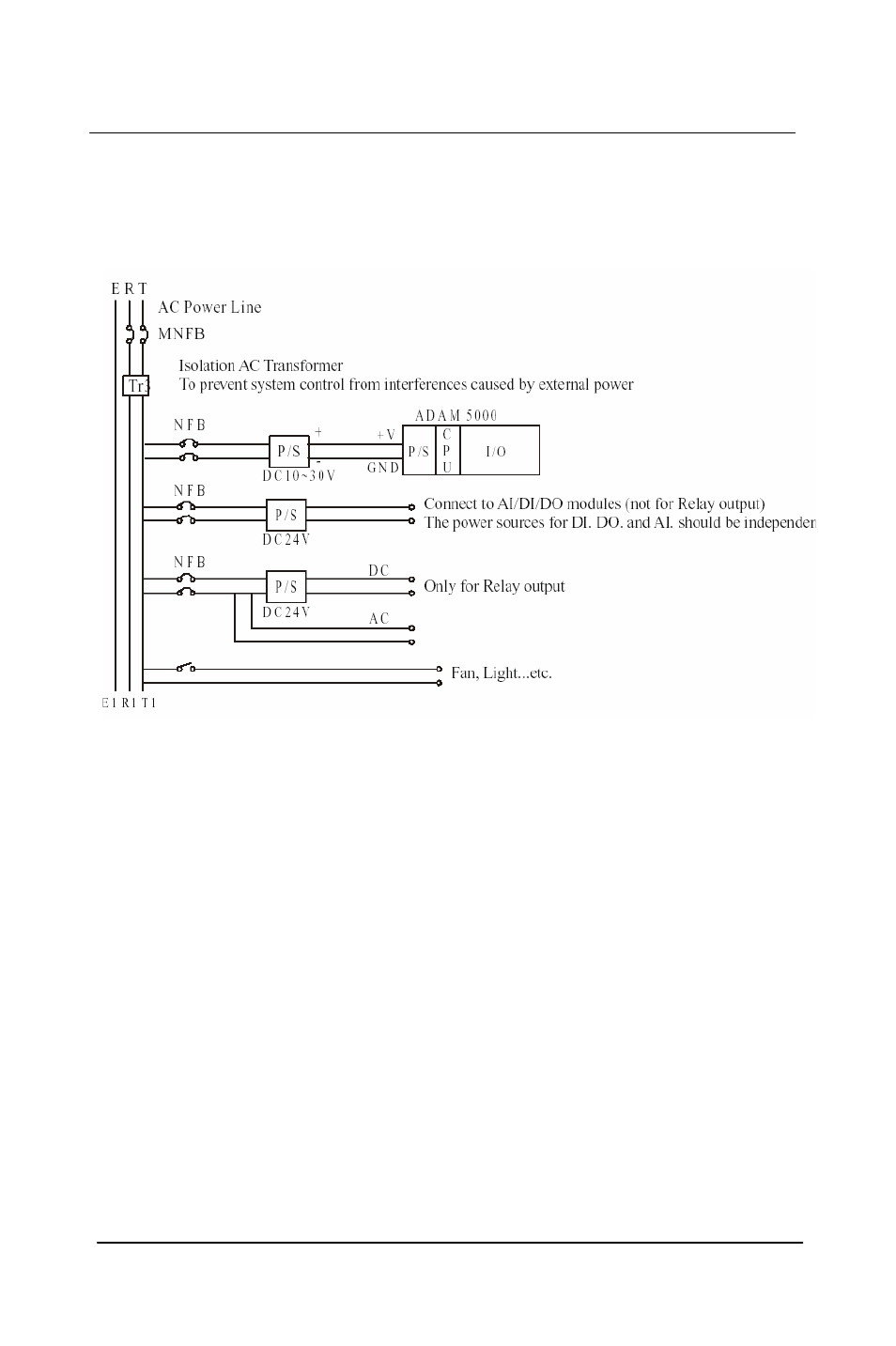

E.1 Power Supplies For relevant wiring issues, please
refer to the following scheme:
Figure E-1 : Grounding Scheme
E.2 Grounding Scheme
The outer case for the module is made of iron and fitted with a fan
and convection holes with filters.
If possible, wiring should be connected to the module through an
external terminal block (T/B) to avoid external wires directly getting
into the inside of the module. Its advantages are (1) a clear demar-
cation for external/internal wiring responsibility, (2) wire numbering
can be arranged in an explicit and concise manner, and (3) an easy
diagnostics for the wiring problems and a more aesthetical layout
plan.
