2-18

GF100 Series

Installation and Operation Manual

X-TMF-GF100-Series-MFC-eng

Part Number: 541B137AAG

March, 2013

Section 2 Installation

2-21 GF135 Commissioning

Download the GF135 commissioning software, part number 805-C-026,
from the Brooks Instrument website. The software will need to be
downloaded onto a computer with a Windows

®

based operating system.

Necessary equipment:

• Computer that runs a Windows operating system
• Power (either DeviceNet or RS485) to the device
• Need gas supply for pneumatic valve
• BB 485 to 232 converter
• 9-pin to diagnostic cable

In order to ensure best results, commission the GF135 at operating
temperature and pressure on tool.

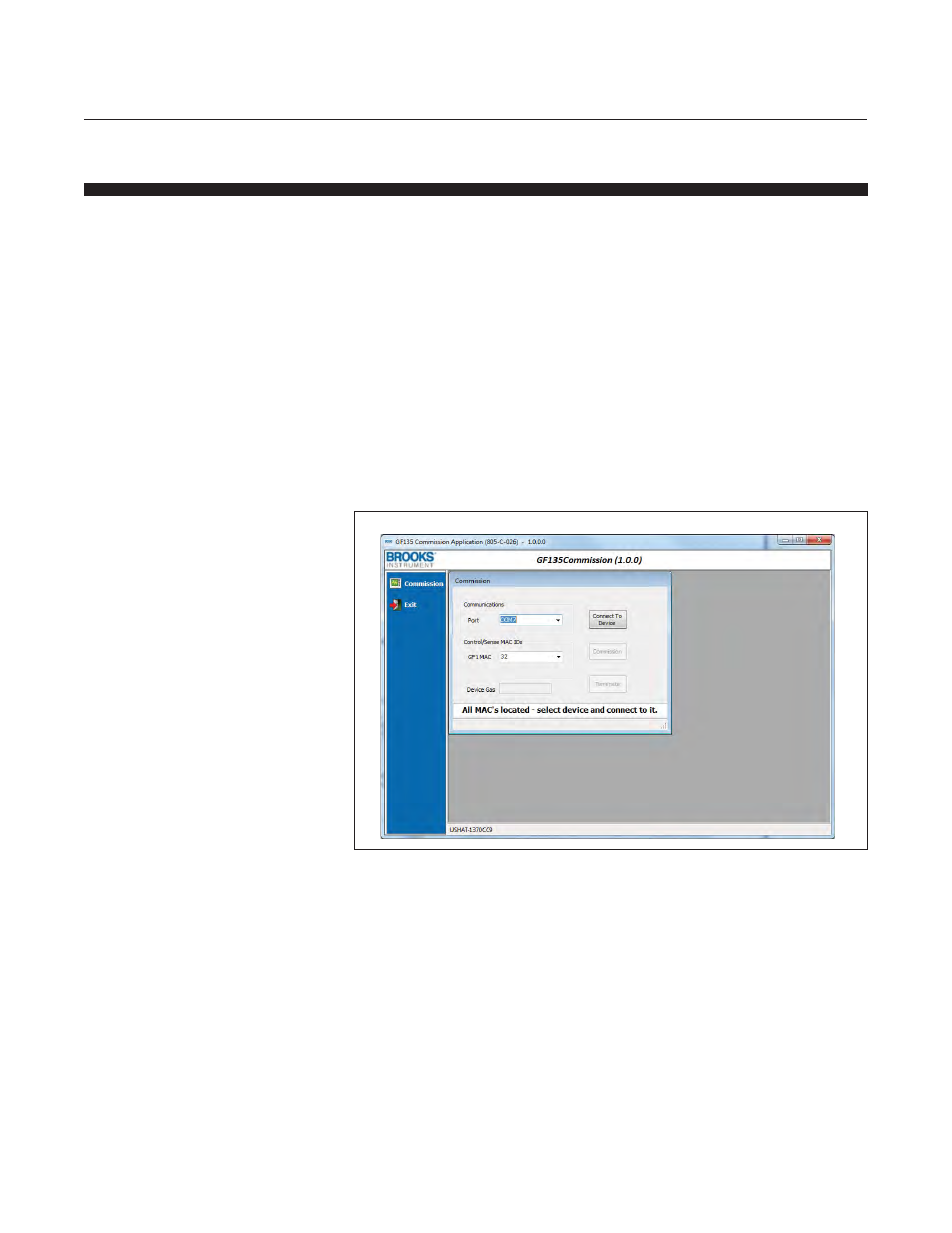

1. Start up the GF135 Commission Application and select a port. This will
bring up all of the devices on this port.
