2-14

GF100 Series

Installation and Operation Manual

X-TMF-GF100-Series-MFC-eng

Part Number: 541B137AAG

March, 2013

Section 2 Installation

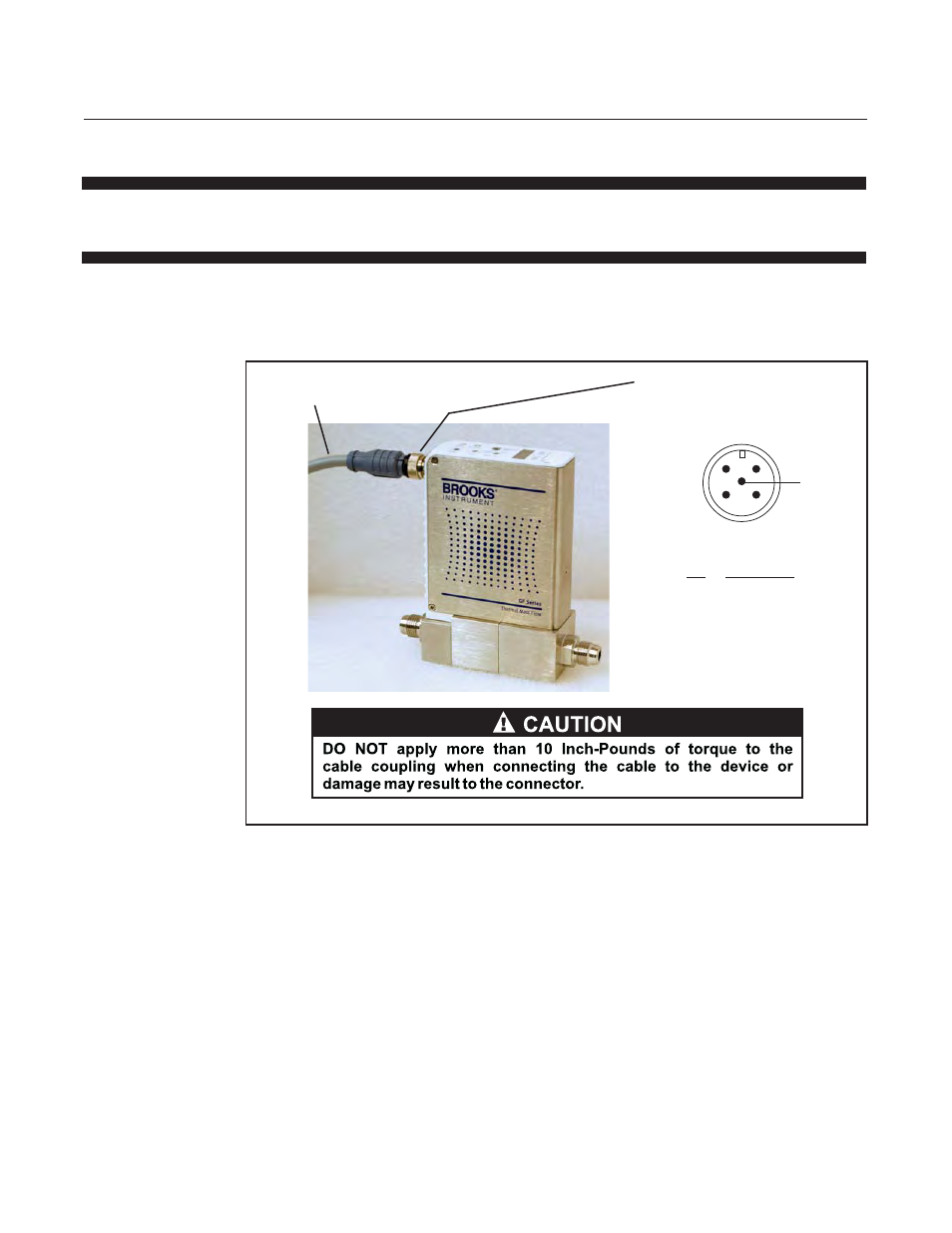

Figure 2-13 GF100 Series DeviceNet Connection

DeviceNet (M-12)

Connector Cable

Pin

Connection

1

Drain

2

V+ (11-25 Vdc)

3

V--

4

CAN-H

5

CAN-L

1

5

4

2

3

DeviceNet 5-Pin (M-12)
Connector (M)

2-19 Electrical Connections

2-19-1 DeviceNet Connections

DeviceNet is a 5 wire local network connection that employs a command
response communication protocol for communicating between a master and
slave. Obtain a DeviceNet communication cable (Micro M-12) and fasten it
to the 5-pin connector as shown in Figure 2-13.
