2-4
GF100 Series
Installation and Operation Manual
X-TMF-GF100-Series-MFC-eng
Part Number: 541B137AAG
March, 2013
Section 2 Installation
2-10 Flow Controller Installation Arrangement

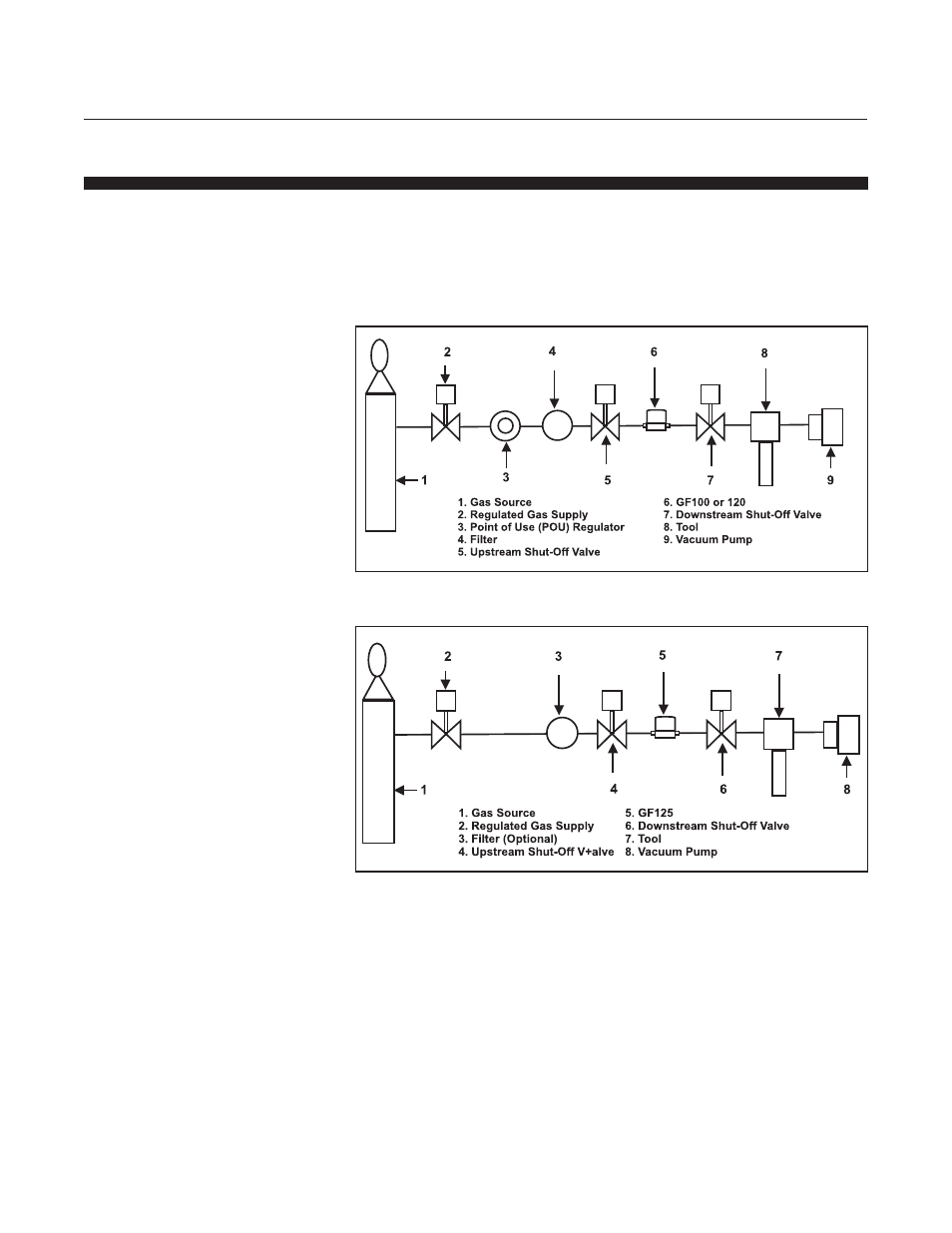

Typical gas supply arrangements are shown in Figures 2-1 and 2-2.
GF100's are often arranged inside a gas panel. Configure standard
configurations ("SHs") or "blanks" for a variety of pure gases and mixtures.
As a result, MultiFlo technology enables the user to reduce unique
inventory requirements.
Figure 2-1 Typical Gas Supply Arrangement with non-PTI MFC
Figure 2-2 Typical Gas Supply Arrangement with PTI MFC
