2-10

GF100 Series

Installation and Operation Manual

X-TMF-GF100-Series-MFC-eng

Part Number: 541B137AAG

March, 2013

Section 2 Installation

After completion of the pressure transducer zeroing, the LCD display will

read 0.0 with the last two digits flickering as shown in Figure 2-7.

2-15-2 Zeroing GF100 Series Flow from LCD Display Panel

1. Place the GF100 Series under normal inlet operating pressure. Close

the down stream valve to prevent any flow.

2. Looking at the top of the GF100 Series, press the "Display" button until

the LCD display label is "%FS" as shown in Figure 2-8. Three button
depressions from the MACID label display.

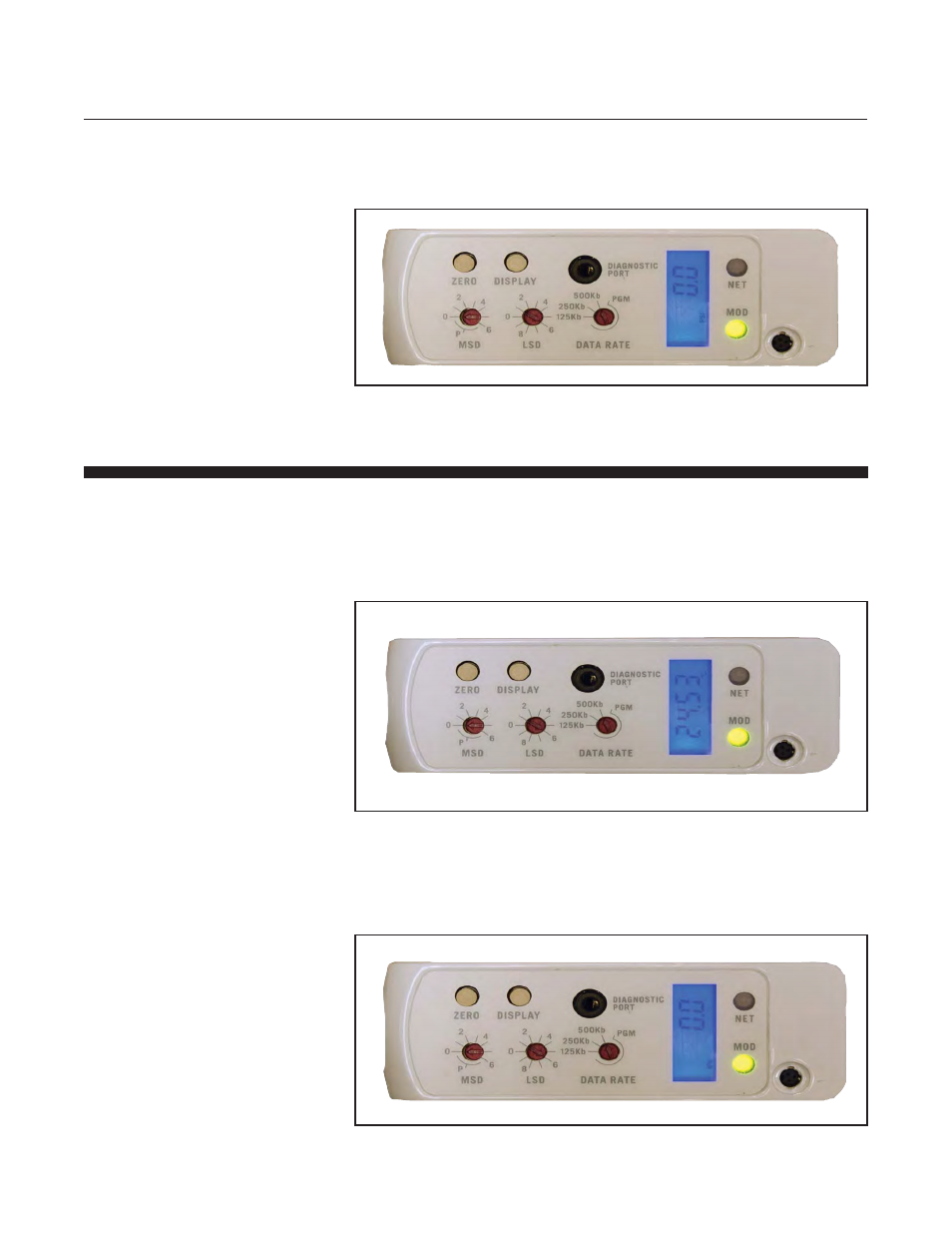

Figure 2-7 Display Reading Zero PSI

Figure 2-8 Display Set to %FS

Figure 2-9 % Flow Display Set to Zero

3. Press and hold down the Zero button for a minimum of 5 seconds or until

the "%FS" display reads 0.0 as shown in Figure 2-9. The %FS label will
flash during this procedure.
