7. Assemble Accessories
7.1 Assemble Rack Mount Brackets
The XLN3640/XLN6024/XLN8018/XLN10014 is designed to fit in a space of
one rack unit (1U) and can be mounted in a standard 19-inch rack panel or
cabinet. Rack mount brackets must be assembled before mounting the unit in a

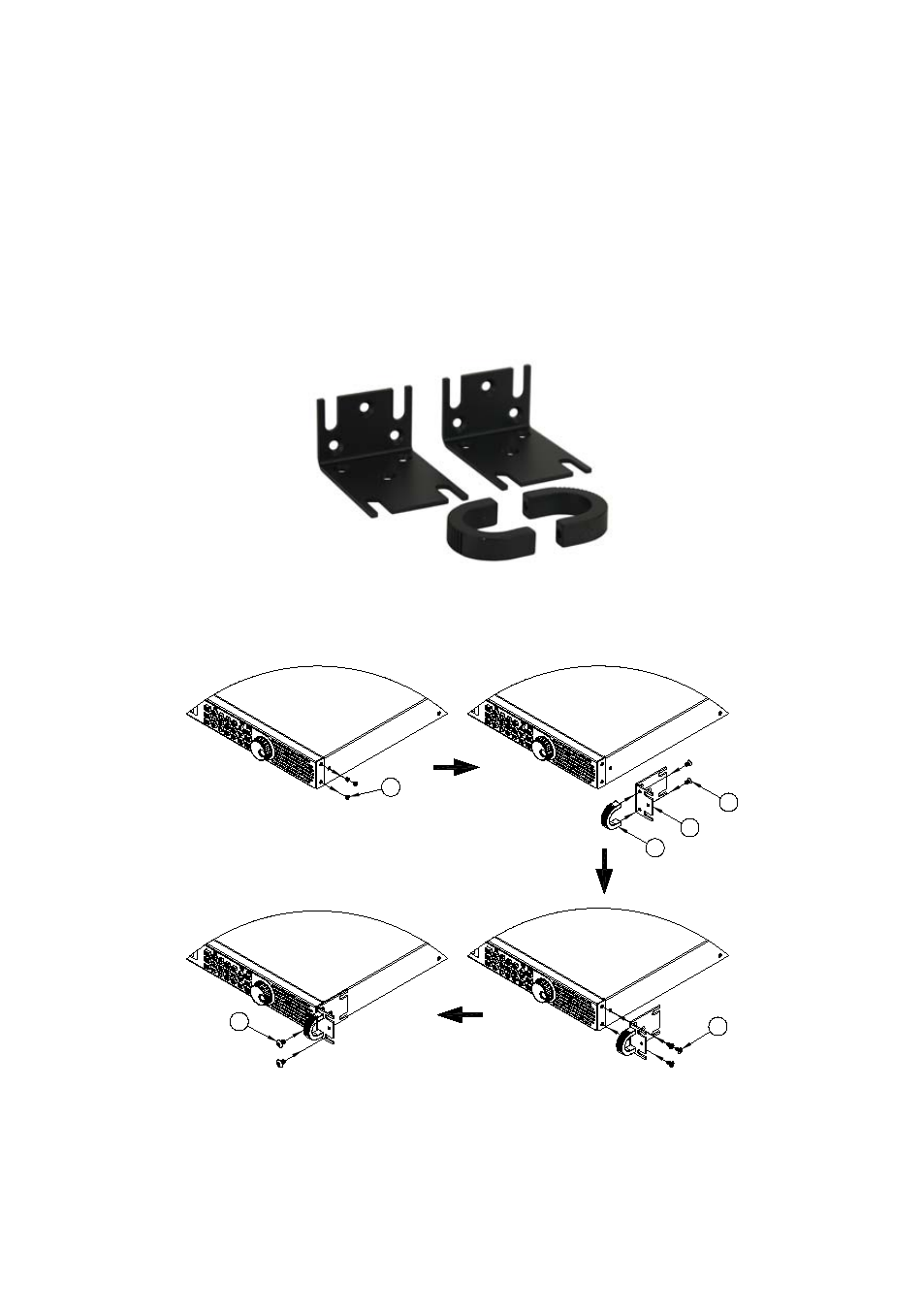

rack. Refer to the following figure to assemble the rack mount brackets.
Rack mount Brackets
Step 1
Step 3
6
2
3
4
5
Step 2
Step 4
1
