6.5.7 Provisioning The ROM
The ROM can be configured to operate its outputs when specific Jar or String alarms occur. To
configure these alarms presses the Setup button for the desired output on the ROM display. The

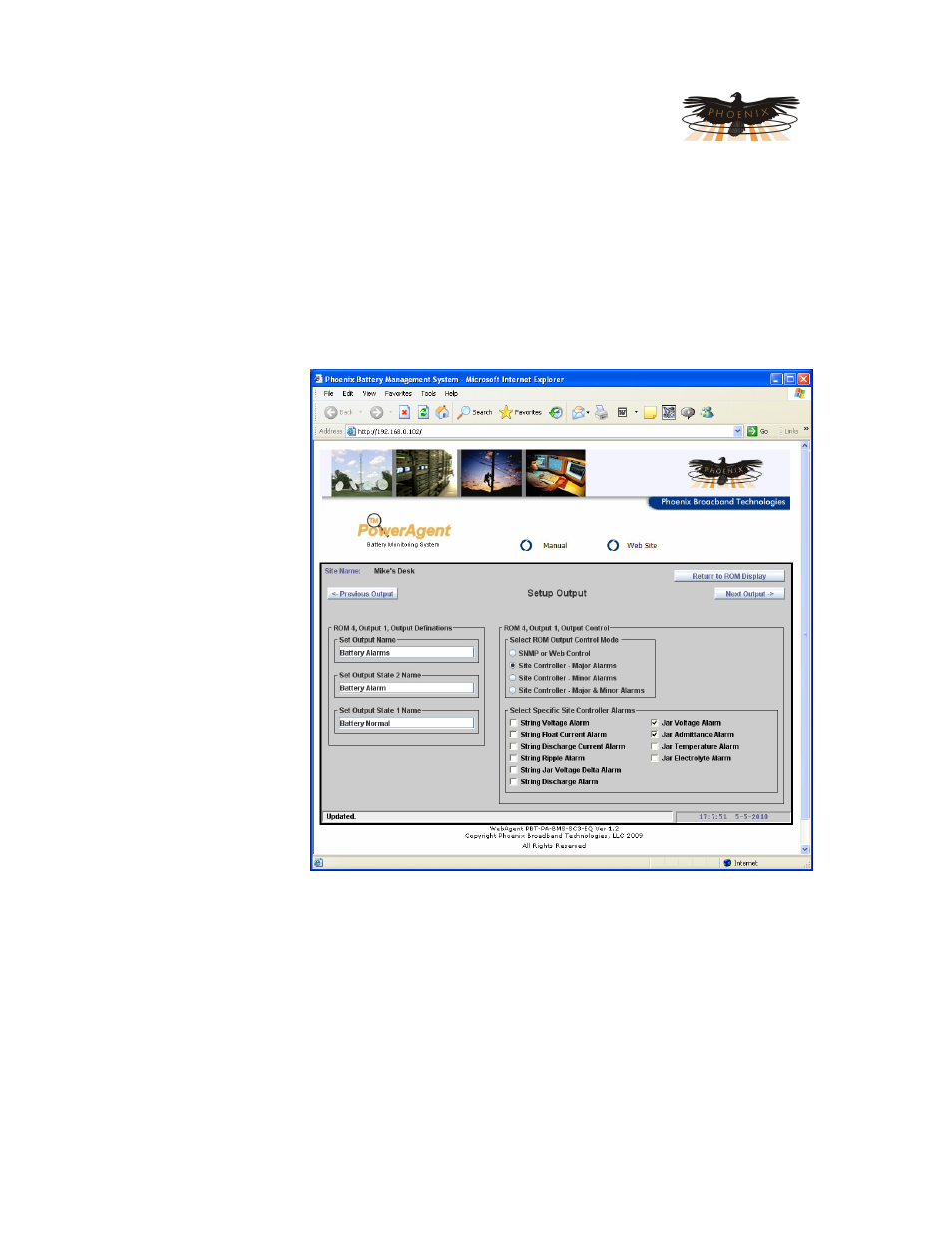

screen shown below will appear. Assign an appropriate name to the output and the states as
shown in the example below. Output state 1 will be the normal state, and state 2 will be the alarm
state. When the alarm is detected the relay will switch to state 2. When the alarm clears the
relay will switch to state 1.
Select the desired
Output Control
Mode. For the Site
Controller to control
the output select any
of the three Site
Controller Modes. In
the example we have
selected Site
Controller – Major
Alarms. In this mode
only major alarms will
activate the output.
For normal operation
of the output select
SNMP or Web
Control.
Next select the
specific alarms that
will operate this
output. In the
example shown Jar
Voltage Alarms and
Jar Admittance
Alarms will trigger the
output.
Any number of ROM
outputs can be configured in this manor. Each ROM output can be programmed differently.
