6.5.3 Provisioning Jar Settings

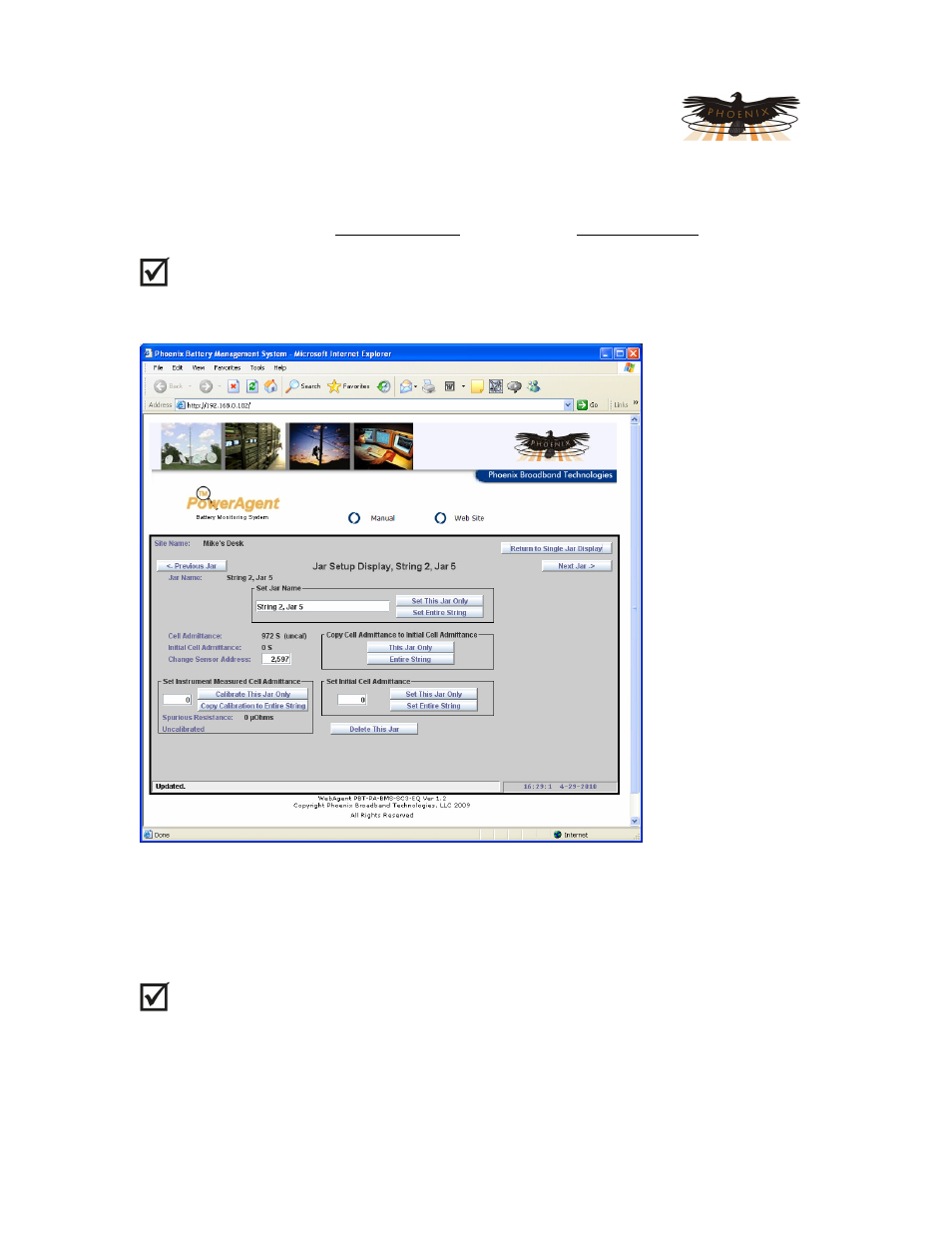

Pressing the S button in the Single Jar Display will produce the Jar Setup Display shown below.
NOTE: For High Voltage sensors reorder the jars as described below before entering any
other jar specific information.
To change the Jar Name enter a new name and press one of the buttons to apply the name to
this jar or to all the
jars on this string.
The Cell Admittance
Change alarm
requires the
specification of an
Initial Cell
Admittance. This
can be done in one of
two ways.
To use the present
Cell Admittance
reading as the Initial
Cell Admittance
press one of the
buttons in the Copy
Cell Admittance to
Initial Cell
Admittance group.
Pressing the This Jar
Only button will copy
the Cell Admittance
to the Initial Cell
Admittance for this
jar. Pressing the
Entire String button
will copy the Cell
Admittance to the
Initial Cell Admittance for each jar in the string.
To use a specified value for the Initial Cell Admittance enter the value in the field in the Set
Initial Cell Admittance group, then press on of the buttons. Pressing the Set This Jar Only
button will copy the value entered to the Initial Cell Admittance for this jar. Pressing the Set
Entire String button will copy the value entered to the Initial Cell Admittance for each jar in the
string.
NOTE: Low Voltage sensors are automatically discovered in string order so the following
process is not required. The Change Sensor Address field will not appear on the screen
for Low Voltage sensors.
Each High Voltage sensors has a factory programmed address. These addresses are recorded
during the discovery process that occurs when the Site Controller is powered on. The sensors
are discovered in a random order and assigned sequentially to the jars. This results in the
