Extron Electronics TLP 710TV User Guide User Manual
Page 46

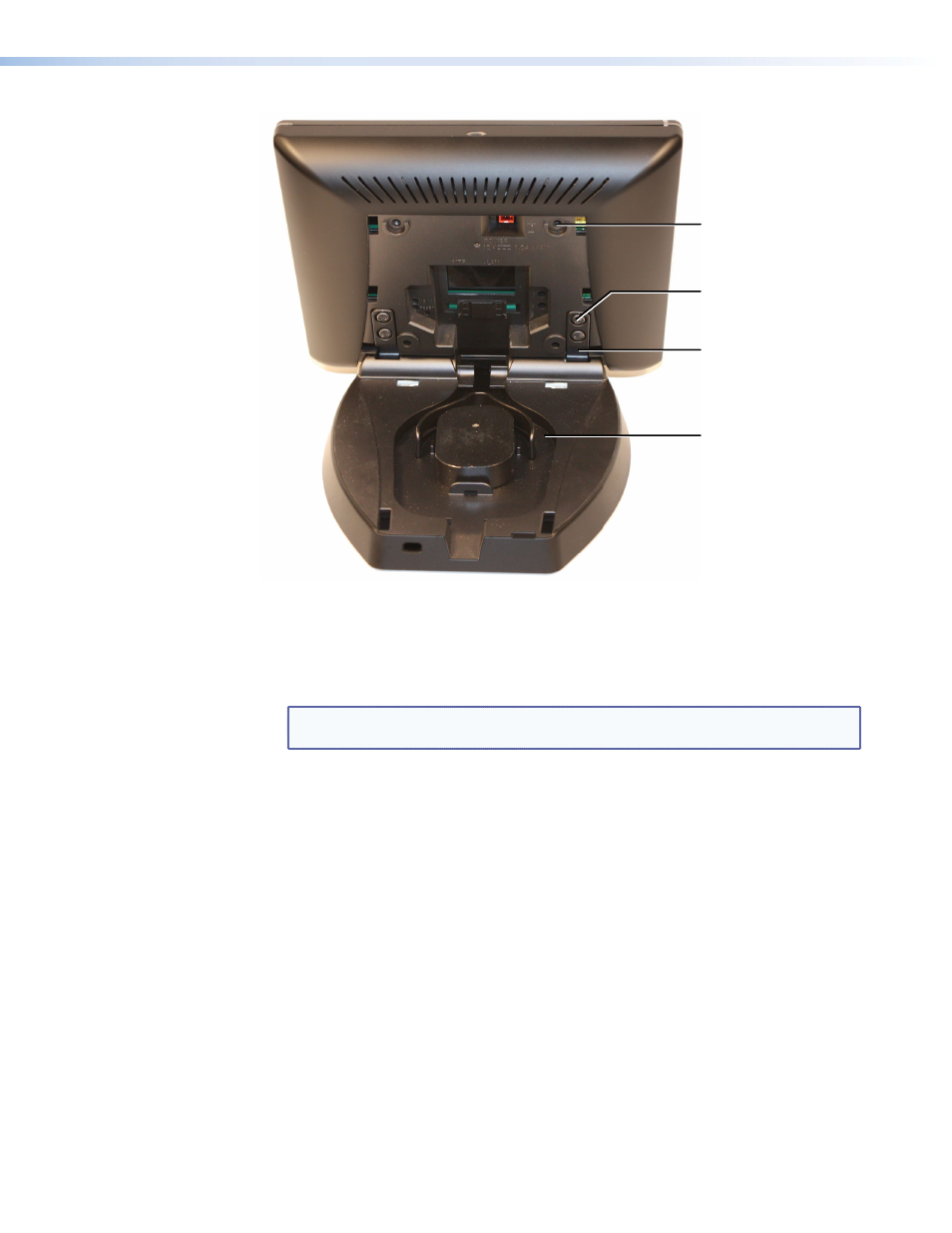

VESA Mounting Holes (4)
Hinges (2)
Cable Runway
Spanner Drive
Security Screws
(2 for each hinge)
Figure 46.
Removing the Base from the Touchpanel
3.
If necessary, cut the zip tie holding the twisted pair cables to the TLP 710TV base.
4.
If necessary, remove the cables from the cable runway in the base.
5.
Remove the four spanner drive security screws holding the hinges to the touchpanel.
NOTE: The spanner drive screws holding the hinges require a #6 spanner bit or
#6 spanner head screwdriver, which is not provided.
6.
Lift the TLP away from the base.
TLP 710MV and TLP 710TV • Mounting
40
