Extron recommends using a Power over Ethernet (PoE) power supply. Use a
straight-through Ethernet cable to connect the power supply to a switch or router.
This cable carries network information from the switch or router to the power
supply input. A second straight-through cable carries the network information and
48 VDC from the power supply to the TLP 710MV. Connect the IEC power cord to a
convenient 100 VAC to 240 VAC, 50-60 Hz power source.

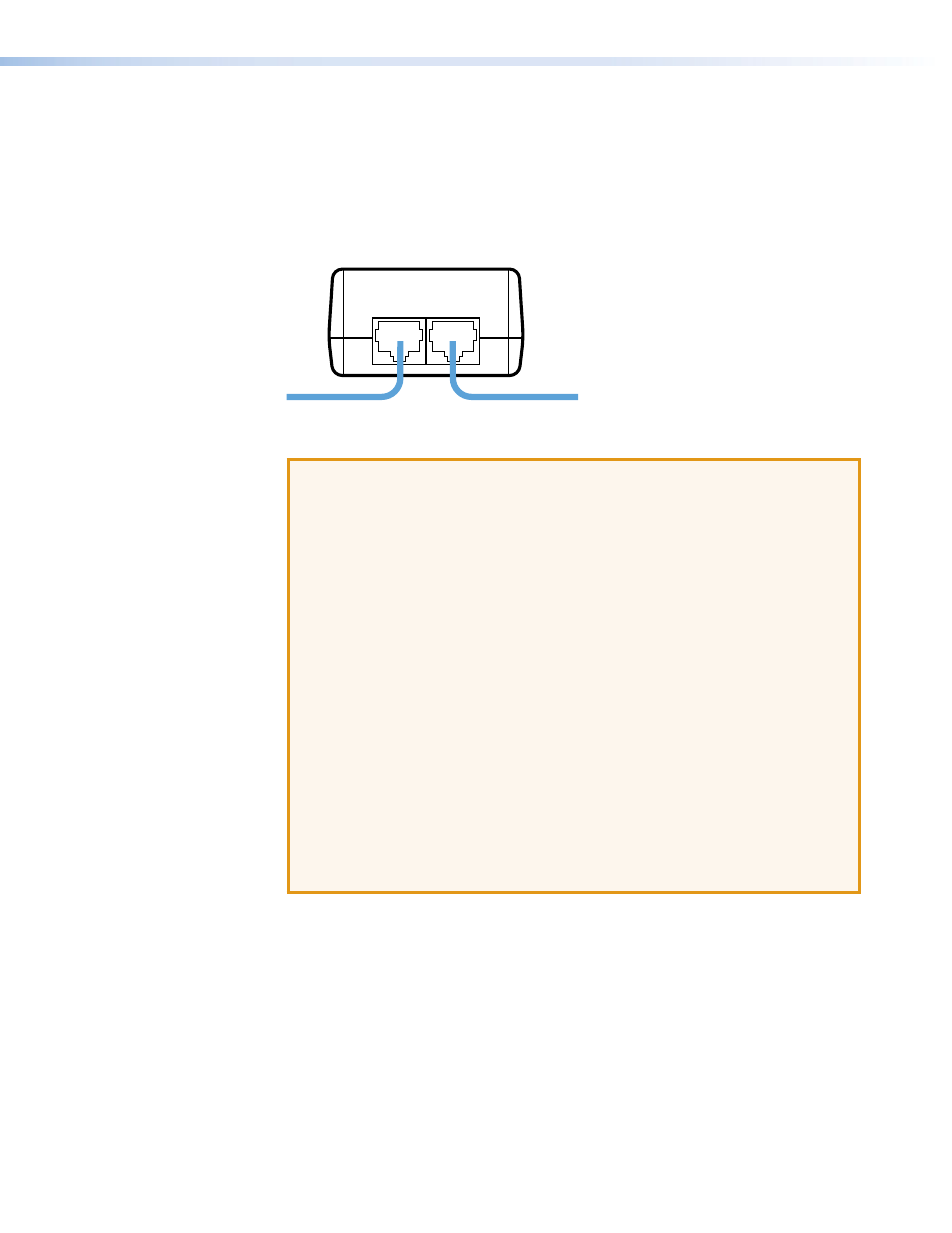

PWR LAN-OUT LAN-IN
To Network Switch To TLP 710MV
Power over Ethernet (PoE) Power Supply
Figure 7. Connecting the Power over Ethernet Power Supply
ATTENTION:
• The TLP 710MV and TLP 710TV are intended for connection to a Power
over Ethernet circuit for intra-building use only and are considered to be
part of a Network Environment 0 per IEC TR62101.
• Always use a power supply supplied or specified by Extron. Use of an
unauthorized power supply voids all regulatory compliance certification and
may damage the supply and end product.
• Extron power supplies are certified to UL/CSA 60950-1 and are classified
as LPS (Limited Power Source). Use of a non-LPS or unlisted power
supply will void all regulatory compliance certification.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in
air handling spaces or in wall cavities. The power supply is to be located
within the same vicinity as the Extron AV processing equipment in an
ordinary location, Pollution Degree 2, secured to the equipment rack
within the dedicated closet, podium or desk. Power over Ethernet (PoE) is
intended for indoor use only. No part of the network that uses PoE can be
routed outdoors.
• The installation must always be in accordance with the applicable
provisions of National Electrical Code ANSI/NFPA 70, article 75 and the
Canadian Electrical Code part 1, section 16. The power supply shall not be
permanently fixed to building structure or similar structure.
TLP 710MV and TLP 710TV • Panel Features 8
