6.
Click
OK

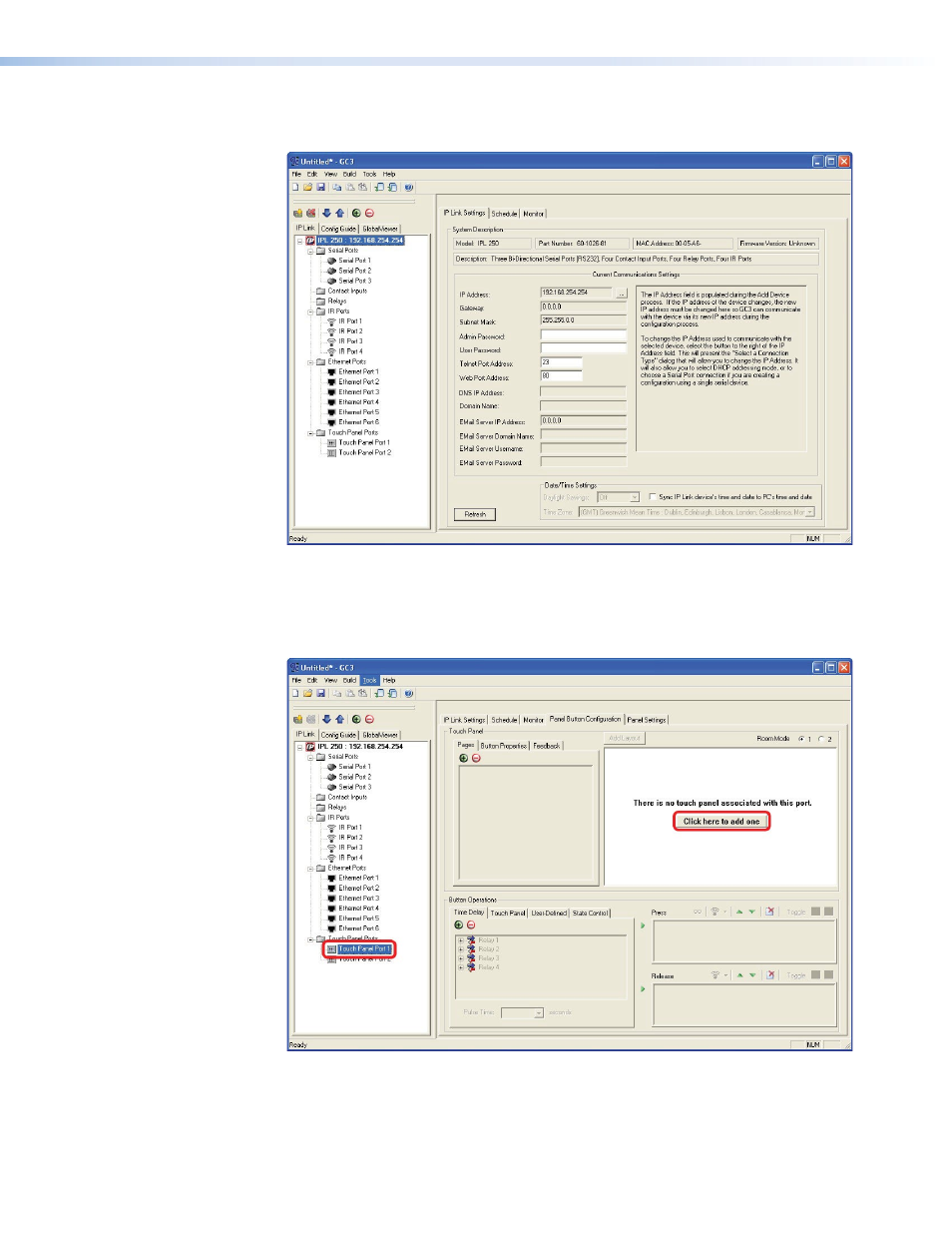

. The Add Device dialog box closes. The start-up screen, which was behind
it, is now visible, showing the IPL 250 and the available ports:
Figure 36.
Configuring an IP Link Device
7.
Select
TouchPanel Port 1
. The screen shows the available options for the
TouchLink panel.
8.
Click
Click here to add one
.
Figure 37.
Adding a TouchLink Panel
TLP 710MV and TLP 710TV • Configuration Software
33
