TLP 710TV Rear Panel Features and Connections
The TLP 710TV has a stand that allows it to be placed on desktop. The stand can be
removed to VESA mount the unit. Both the stand and the touchpanel have removable
covers that conceal the rear panel features and protect cables that are attached to the
TLP 710TV.
The
rear and base covers can be removed using the Extron removal tool (provided)
(see page 38).
14 15
11
13
8
9
10
12

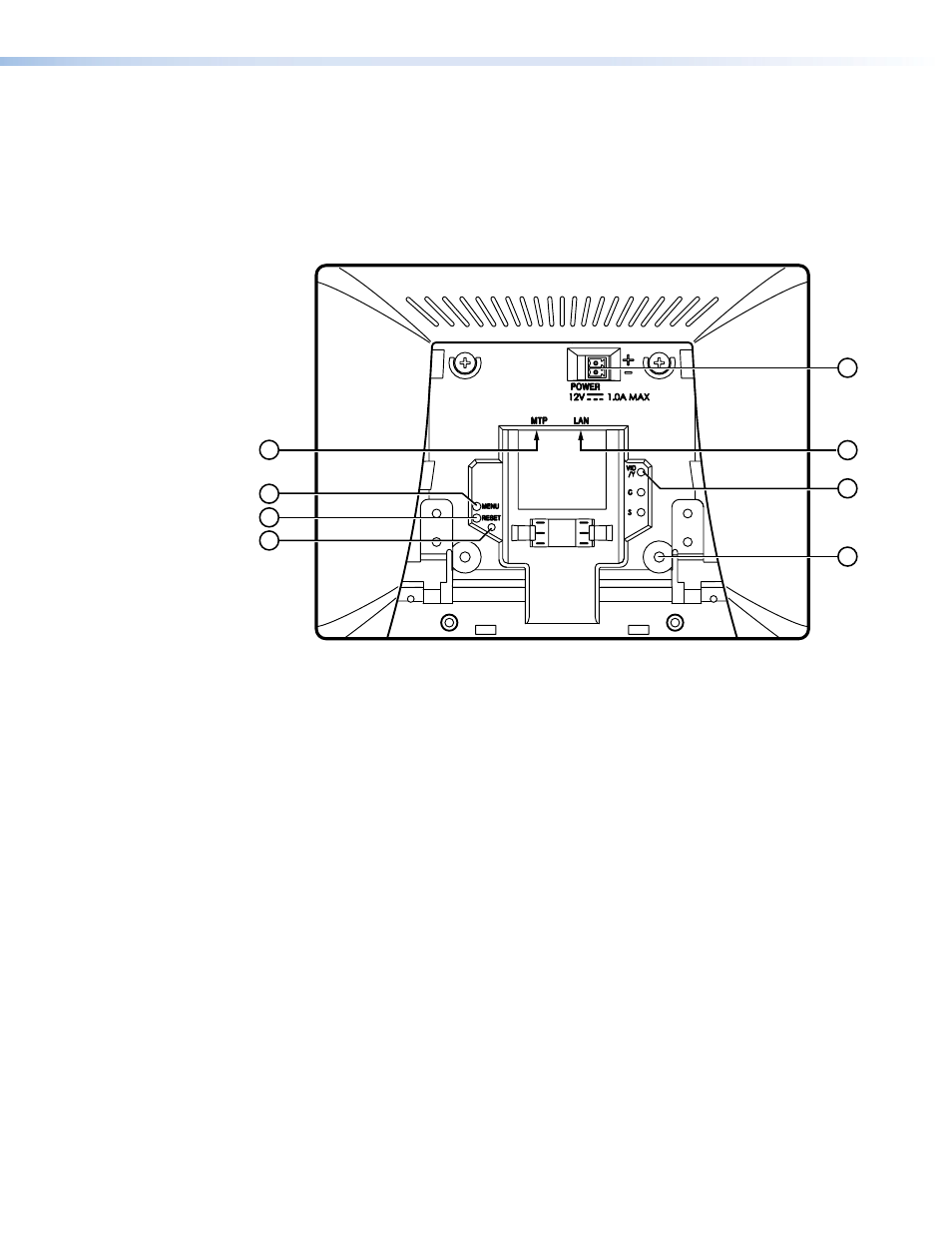

Figure 9. TLP 710TV with the Stand and Cover Removed
The following features and connections are available through the back panel.
h
Menu button — activates the on-screen menus for calibrating the unit (see
page 14).
i
Reset button — allows the unit to be reset in any of four different modes. For further
information see “
Reset Modes ” on page 41.
j
Reset LED — provides feedback about the reset status when the user presses the
reset button. For further information see “
Reset Modes ” on page 41.
