Connection status LED — is unlit during normal operation. Blinks red if the
connection to the IP Link controller is lost.
g
Bezel — removable with Extron removal tool (provided). Clips fit into attachment
points on the front panel (see figure 4 below) and snap into place.
8

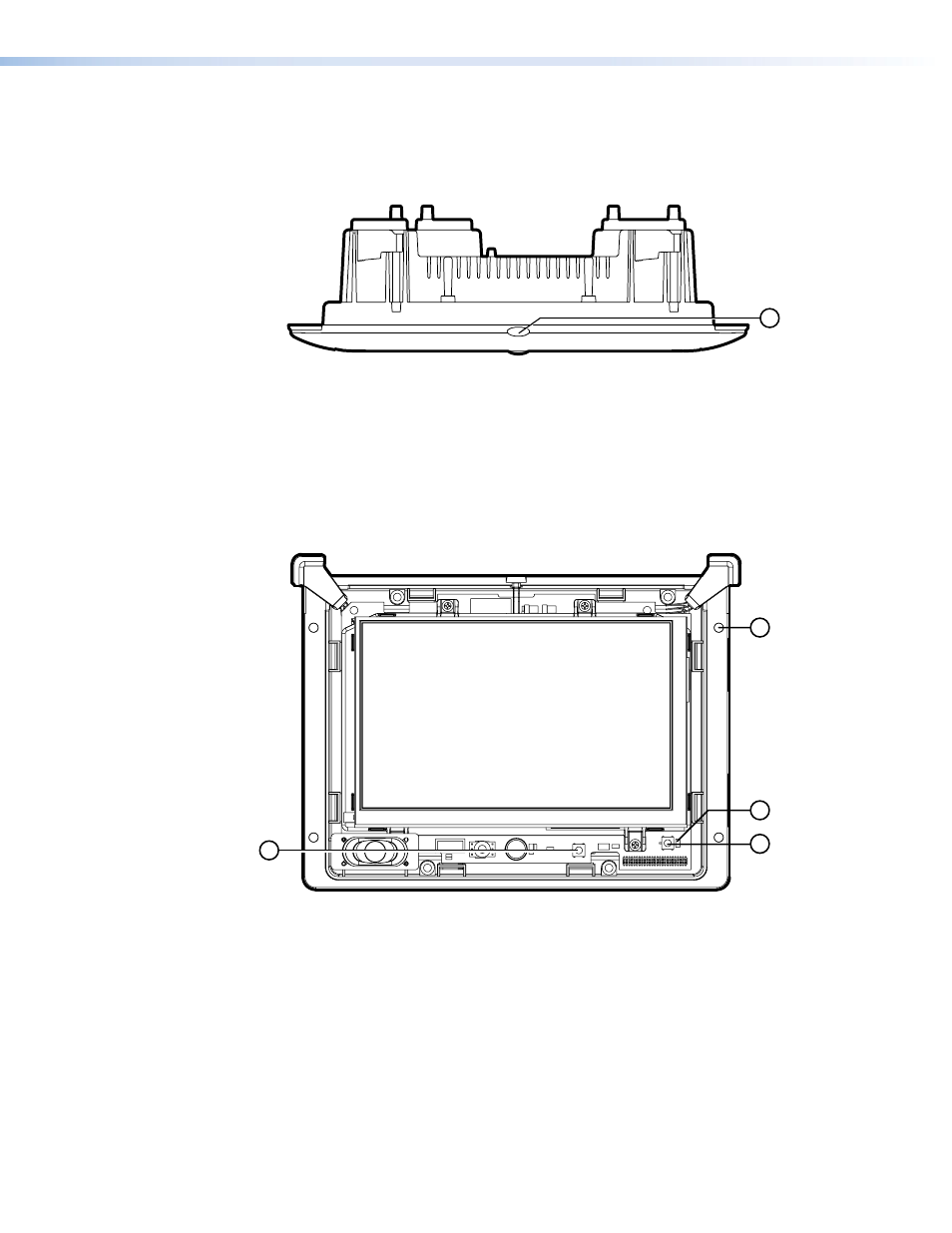

Figure 3. TLP 710MV Top View
h
Light sensor — is on top of the display frame. The sensor monitors the level of
ambient light and adjusts the screen brightness. The sensor can be viewed only from
above the panel.
Reset Buttons and LED
The front bezel is removed by inserting the Extron removal tool into the slots on the top of
the unit. Behind the bezel are two buttons and an LED.
10
11
12
9
Figure 4. TLP 710MV Front Panel with the Bezel Removed
i
Bezel attachment points
j
Menu button — activates the on-screen menus for calibrating the unit (see
page 14).
k Reset button — allows the unit to be reset in any of four different modes. For further
information see
Reset Modes on page 41.
l
Reset LED — provides feedback about the reset status when the user presses the
reset button. For further information see
Reset Modes on page 41.
TLP 710MV and TLP 710TV • Panel Features 5
