Panel Features
This section describes:
• TLP 710MV Front Panel Features and Operations
• TLP 710MV Rear Panel Features and Connections
• TLP 710TV Front Panel Features and Operations
• TLP 710TV Rear Panel Features and Connections
TLP 710MV Front Panel Features and Operations
Extron
4
1
2
3
4
5
6
7

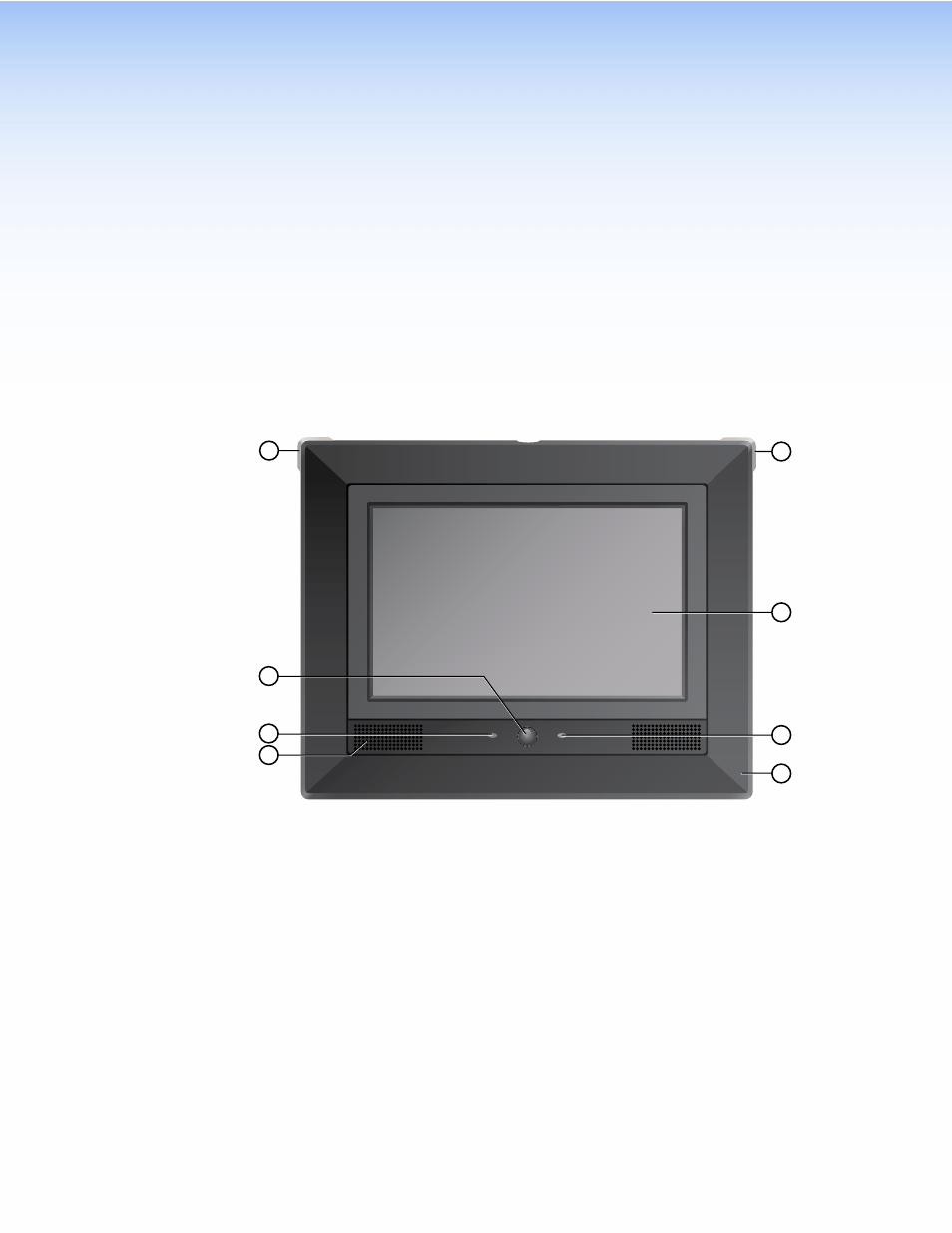

Figure 2. TLP 710MV Front Panel
a
Motion sensor — is capped with a small Fresnel lens that focuses light onto the
sensor. When no motion has been detected for a user-defined period of time, the
unit enters sleep mode. When motion is detected by the sensor, the screen display is
restored and active.
b
Microphone — is located below the LCD screen.
c
Speaker — one located under the screen, on the left side of the panel, provides
audible feedback for the user.
d
Programmable LEDs — one on each top corner can be programmed to provide
system feedback. They light red or green and can blink or light solid in response to
user-defined events.
e
LCD screen — has a 800x480 resolution with a touch overlay. A graphical user
interface, designed using the
Extron GUI Configurator software, displays buttons,
text, or icons on the screen (see page 24). These are configured for a range of user-
defined functions, using the
Extron Global Configurator software (see page 29).
TLP 710MV and TLP 710TV • Panel Features 4
