TLP 710MV Rear Panel Features and Connections
Extron
13
16
14
15

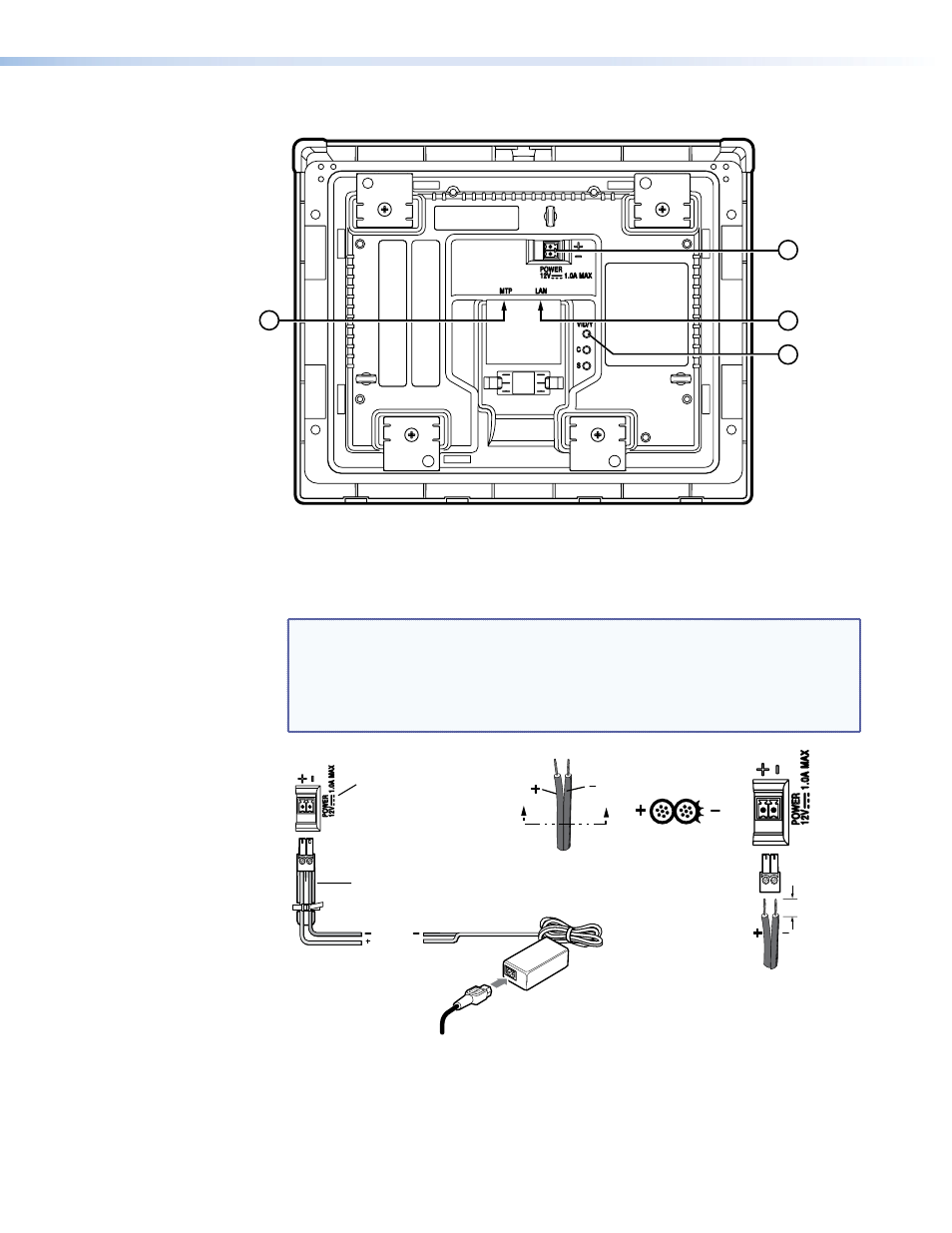

Figure 5. TLP 710MV Rear Panel Features
m
Power connector — Connect the 2-pole, 3.5 mm captive screw connector from the
12 VDC, 1.0 A power supply (not provided) to the power supply socket on the rear
panel. Ensure the connections have the correct polarity as shown below.
NOTES:
• Extron recommends using the Power over Ethernet power supply. The 12 VDC,
1.0 A power supply should be used only for setup or troubleshooting.
• If both power supplies are connected to the TLP 710MV, the PoE power supply
takes precedence.
Power Receptacle
Captive Screw Connector
AC Power Cord
Ground
+12 VDC
External
Power Supply
(12 VDC, 1 A )
SECTION A–A
Ridges Smooth
Power Supply
Output Cord
A A
3/16"
(5 mm) Max.
Figure 6. Power Supply Connection
TLP 710MV and TLP 710TV • Panel Features 6
