MTP input — A twisted pair cable, terminated with an RJ-45
connector, provides video and audio input from an Extron
MTP transmitter. The MTP port is in the top surface of the
recessed area (see the arrow to the left in
figure 9 ).
CAUTION: Connect the MTP transmitter to the MTP socket and the network
connector to the network socket. Although both use RJ-45 connectors, the
MTP socket (on the left) must be connected to an MTP transmitter and the
network socket (on the right) must be connected to a LAN. The wires on each
connector use different voltages and inputting the wrong voltages into a socket
will damage the TLP 710TV.
o
Network LAN and Power over Ethernet Connector — The TLP 710TV connects
to a network using a twisted pair cable, terminated with an RJ-45 connector. The LAN
port is in the top surface of the recessed area (see the arrow to the right in
figure 9 ).
The LAN port has two LEDs. The green LED lights steadily to indicate that the
touchpanel is connected correctly to a network. The yellow LED flashes to indicate
that data is being passed to or from the touchpanel.
An Extron IP Link control interface must also be connected to the same network
domain.
Suggested models are listed on page 3 .
Use a straight-through Ethernet cable to connect the panel to a switch or router. Use
a crossover cable to connect the panel directly to a computer.
Extron recommends using a Power over Ethernet (PoE) power supply. Use a
straight-through Ethernet cable to connect the power supply to a switch or router.
This cable carries network information from the switch or router to the power
supply input. A second straight-through cable carries the network information and
48 VDC from the power supply to the TLP 710TV. Connect the IEC power cord to a
convenient 100 VAC to 240 VAC, 50-60 Hz power source.

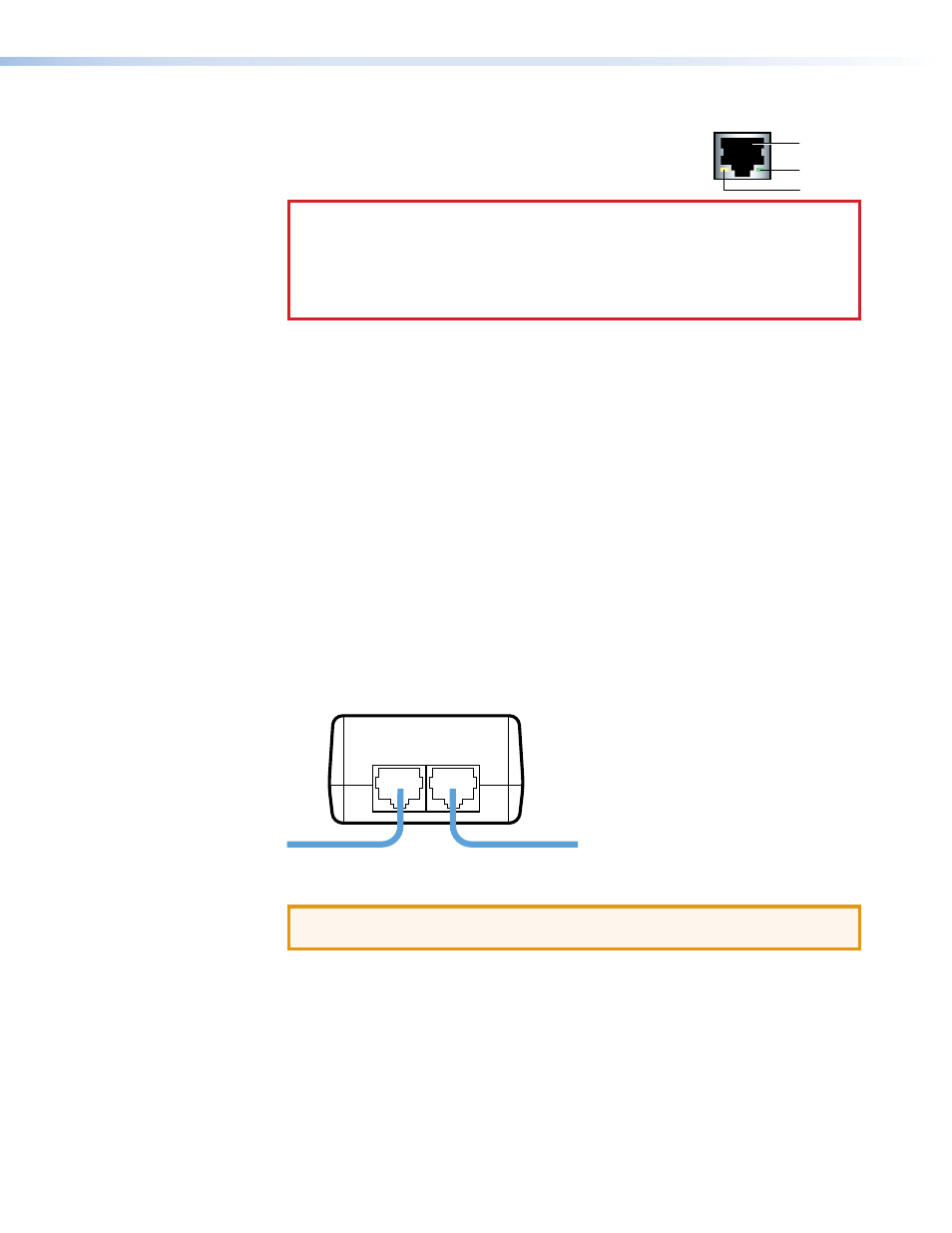

PWR LAN-OUT LAN-IN
To Network Switch To TLP 710TV
Power over Ethernet (PoE) Power Supply
Figure 11. Connecting the Power over Ethernet Power Supply
ATTENTION: See the Attention on page 8 for important information about
using a Power over Ethernet power supply.
LAN
Activity LED
Link LED
RJ-45 Port
TLP 710MV and TLP 710TV • Panel Features 12
