3. Depending on which option was selected in step 2, GUI Configurator opens a new or
existing project. The initial screen is divided into a series of panes offering a range of
tools that can be used to design or modify the project. For full details on how to use
these tools, see the help file (from the
Help menu select Contents or press the
key while the program is running).

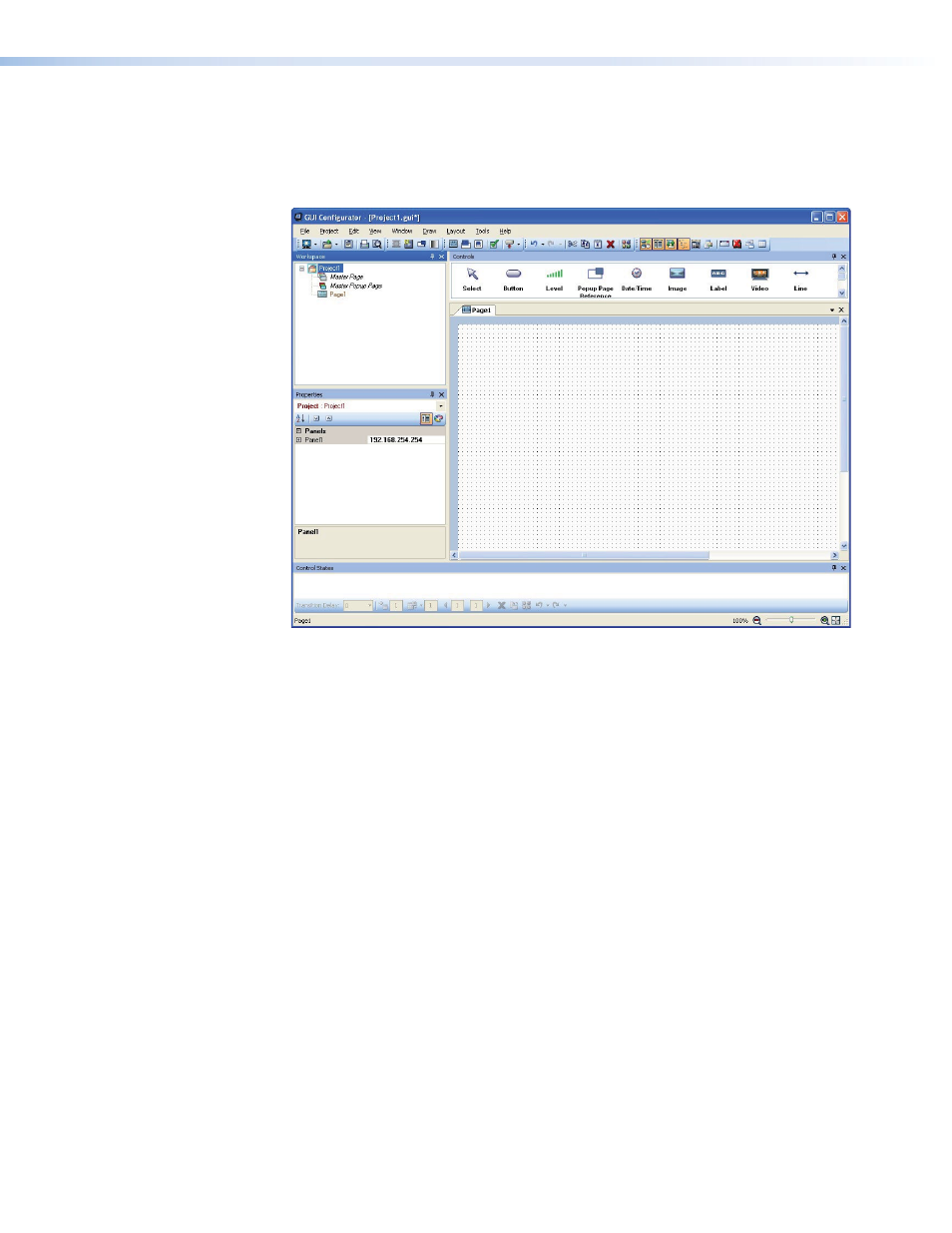

Figure 31. GUI Configurator Main Screen
4. To save the project, select Save Project from the File menu. If this is the first time
saving the project file, the Save As dialog box appears. If the Save As dialog box
appears:
a. Browse for the location where the project file is to be saved.
b. Enter a file name for the project.
c. Click Save .
TLP 710MV and TLP 710TV • Configuration Software 28
