TLP 710TV Front Panel Features and Operations
Extron
a
b
c
d
e
f
d

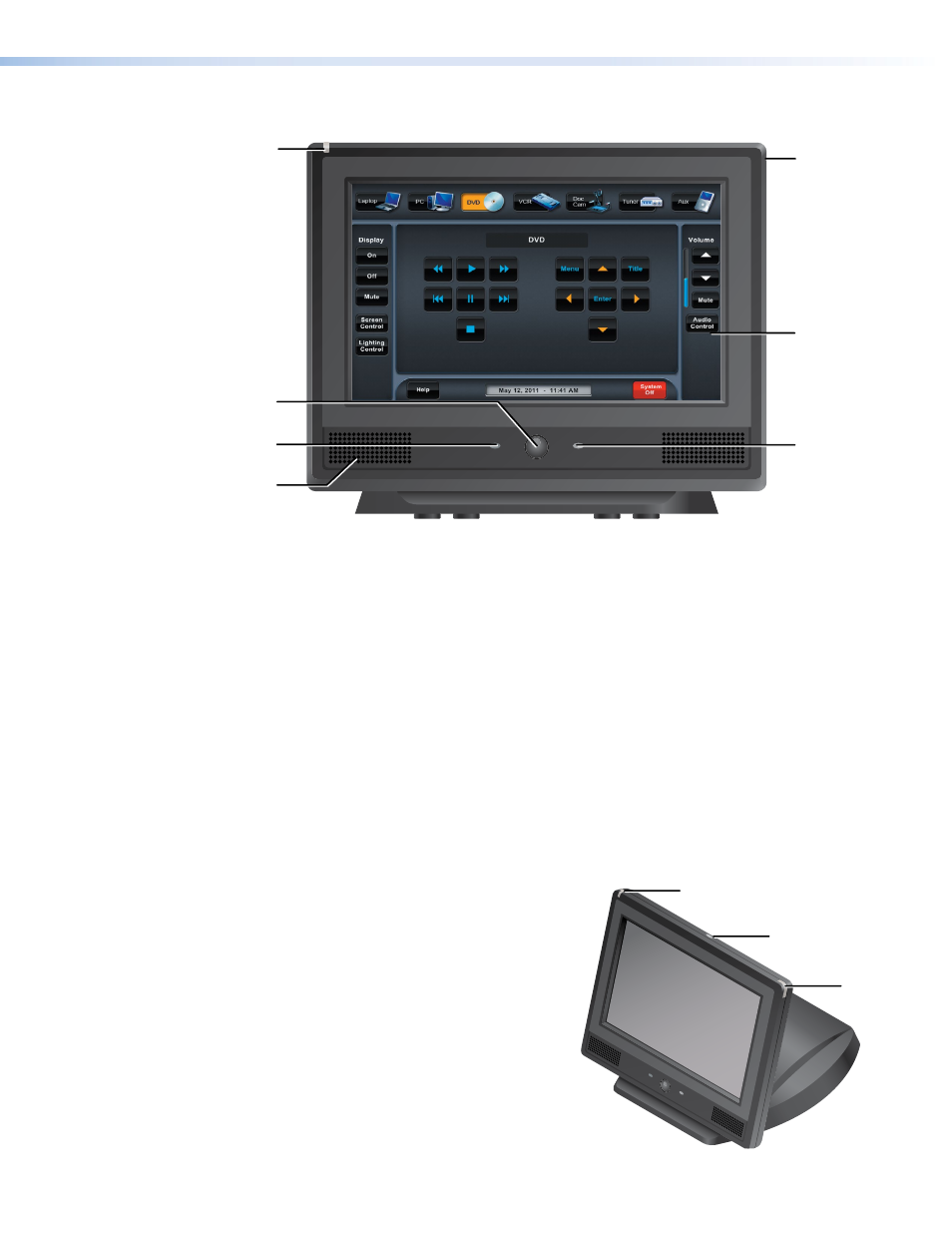

Figure 8. TLP 710TV Front Panel Features
a
Motion sensor — is capped with a small Fresnel lens that focuses light onto the
sensor. When no motion has been detected for a user-defined period of time, the
unit enters sleep mode. When motion is detected by the sensor, the screen display is
restored and active.
b
Microphone — is located below the LCD screen.
c
Speaker — one located under the screen, on the left side of the panel, provides
audible feedback for the user and audio for video previews.
d
Programmable LEDs — one on each top corner can be programmed to provide
system feedback. They light red or green and can blink or light steadily in response to
user-defined events. These can be seen more clearly in the figure below.
e
LCD screen — has a 800x480 resolution with a touch overlay. A graphical user
interface, designed using the
Extron GUI Configurator software, displays buttons,
text, or icons on the screen (see page 24). These are configured for a range of user-
defined functions, using the
Extron Global Configurator software (see page 29).
f Connection status LED — is unlit
during normal operation. Blinks red if the
connection to the IP Link controller is lost.
g
Light sensor — (see the figure to the
right) is on top of the display frame. The
sensor monitors the level of ambient light
and adjusts the screen brightness. The
sensor can be viewed only from above
the panel.
Ext
ron
Ext
ron
d
g
d
TLP 710MV and TLP 710TV • Panel Features 9
