2. Choose from the following options:
• Start a New Project — Clicking OK opens a dialog box that offers a choice of
project options.

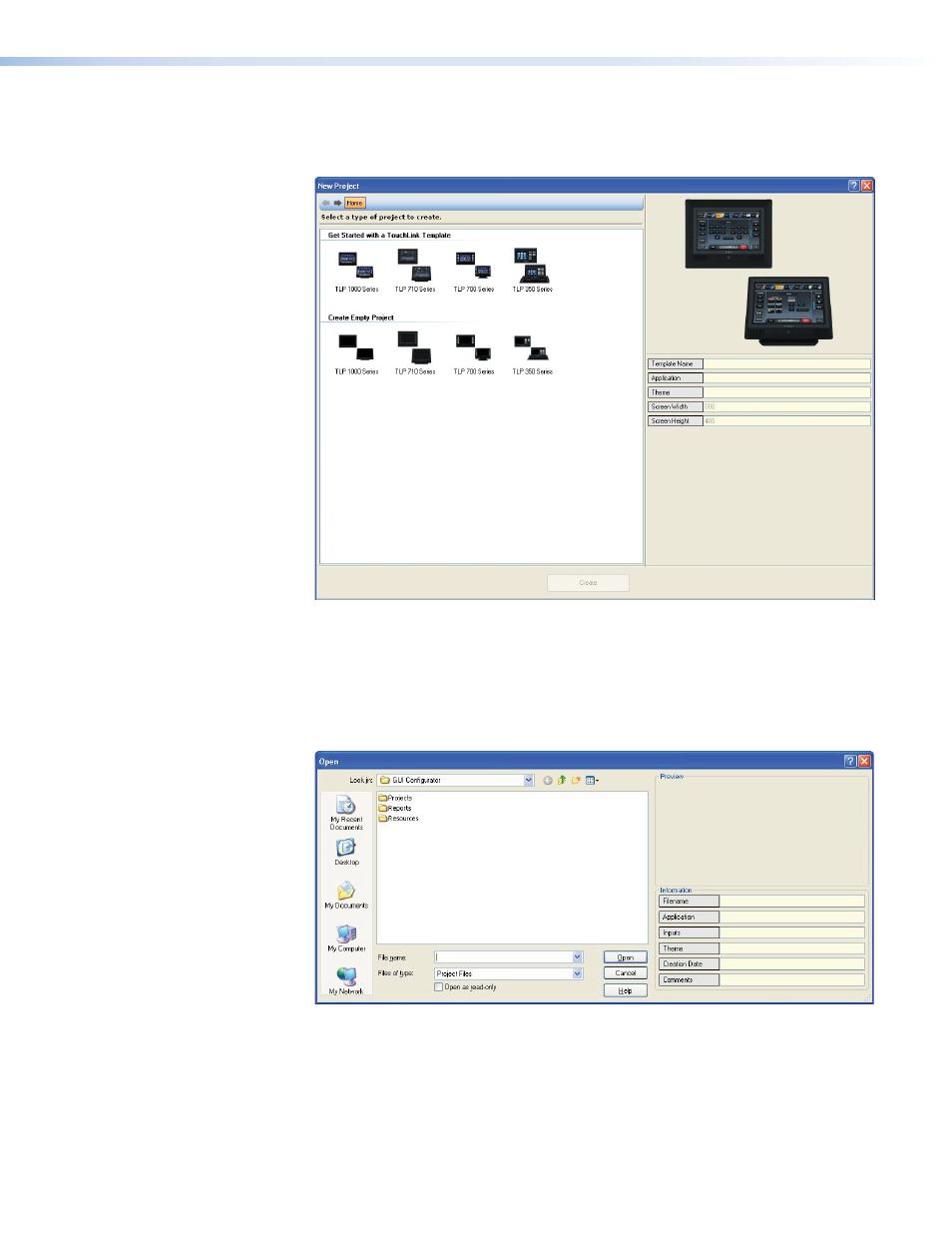

Figure 28. GUI Configurator New Project Dialog Box
A series of icons offers the choice of creating a project with or without a template
and allows the size and type of Touchlink panel to be selected. To work from a
template, users can choose from a range of factory-loaded templates or from a
template they have previously created.
• Open an Existing Project — Clicking OK opens a dialog box.
Figure 29. GUI Configurator Dialog Box to Open an Existing Project
a. Navigate to the existing file and select it. To look at a project without altering
it, ensure the
Open as read-only box is checked.
b. Click Open to open the file. The project opens in GUI Configurator.
TLP 710MV and TLP 710TV • Configuration Software 26
