80 12" & 16" Series II Sweep PNEG-720-G2
Parts List

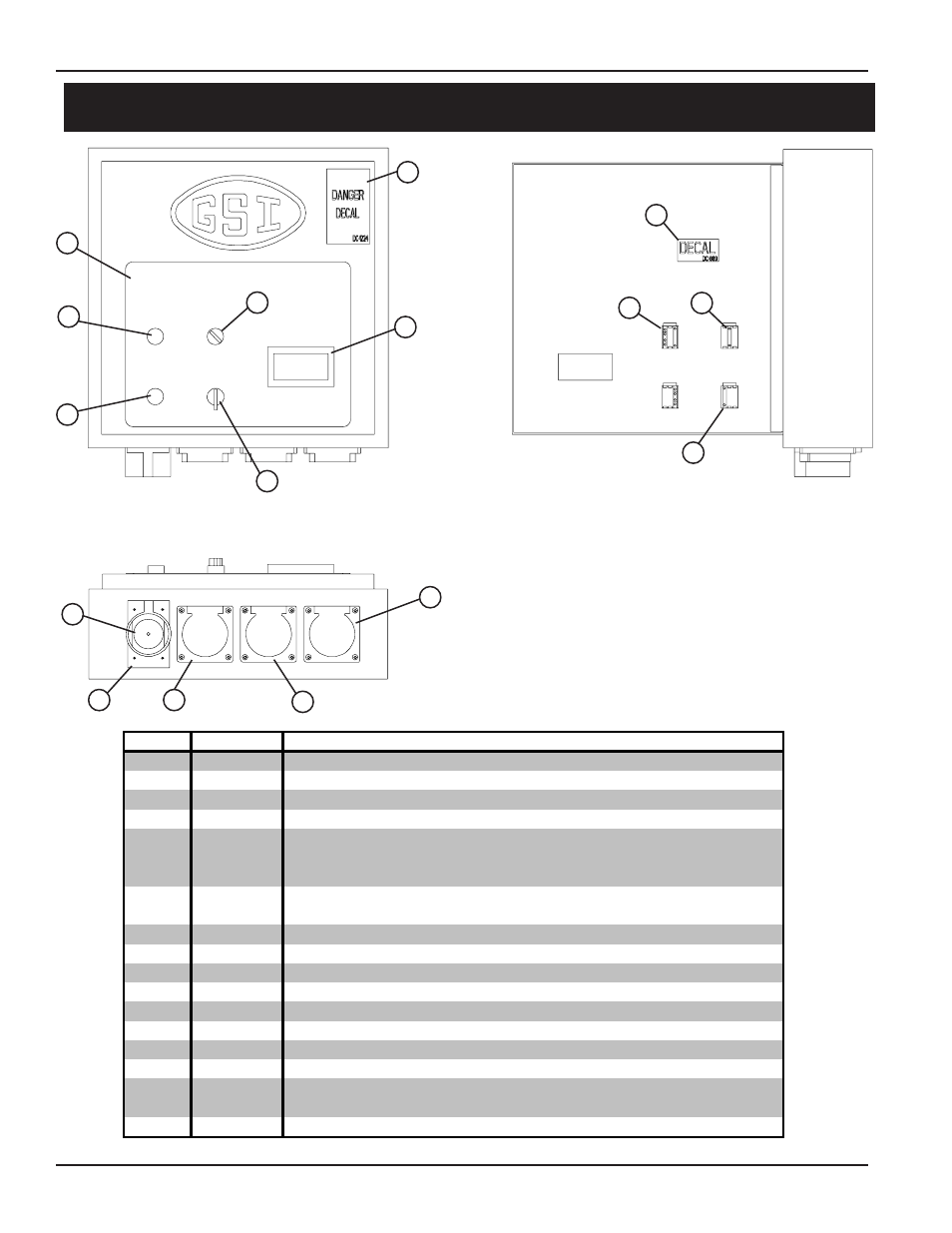

CONTROL PANEL COMPONENTS
1
14
3
15
2
8
5
6 7
9
10
13
12
4
11
16
Ref. # Part # Description
1 DC-1224 Decal, DANGER! Hi Voltage
2 DC-1536 Decal, Series 2 Sweep Panel Overlay
3 DC-889 Decal, DANGER! Hi Voltage
4 GC03659 Std-Round-Push Button-Plastic-Flush-Red
5 GC03666 Hubbell Locking Receptacle - 3-Pole 4-Wire 50 Amps 480 Voltage
6 GC03667 Hubbell Wdl Open Lift Cover
N/S GC03668 Hubbell Locking Plug - 3-Pole 4-Wire 50 Amps 480 Voltage
7 GC03669 Hubbell Locking Receptacle - Nema L16-20R
N/S GC03670 Hubbell Locking Plug - Nema L16-20P
8 GC06954 Hubbell Locking Receptacle - Nema L7-20R
9 GC06956 2 Position - Maint - Plastic - Black
10 GC06957 3 Position - Lever - SL - Sw - Momentary
11 GC06958 Std-Round-Push Button-Plastic-Flush-Green
12 GC06959 Cnt Blck/1NO/SCR
13 GC06960 Cnt Blck/1NC/SCR
14 GC06961 Cnt Blck/SCR
15 GC07585 Series 2 Sweep Amp Meter
16 GC03671 Hubbell Locking Receptacle - Nema L5-20R
N/S GC03672 Hubbell Locking Plug - Nema L5-20P
N/S GC06857 Series 2 Sweep Safety Footswitch Assembly
