Assembly – Grain Systems Bucket Elevtors, Conveyors, Series II Sweeps PNEG-1579 User Manual
Page 56
44

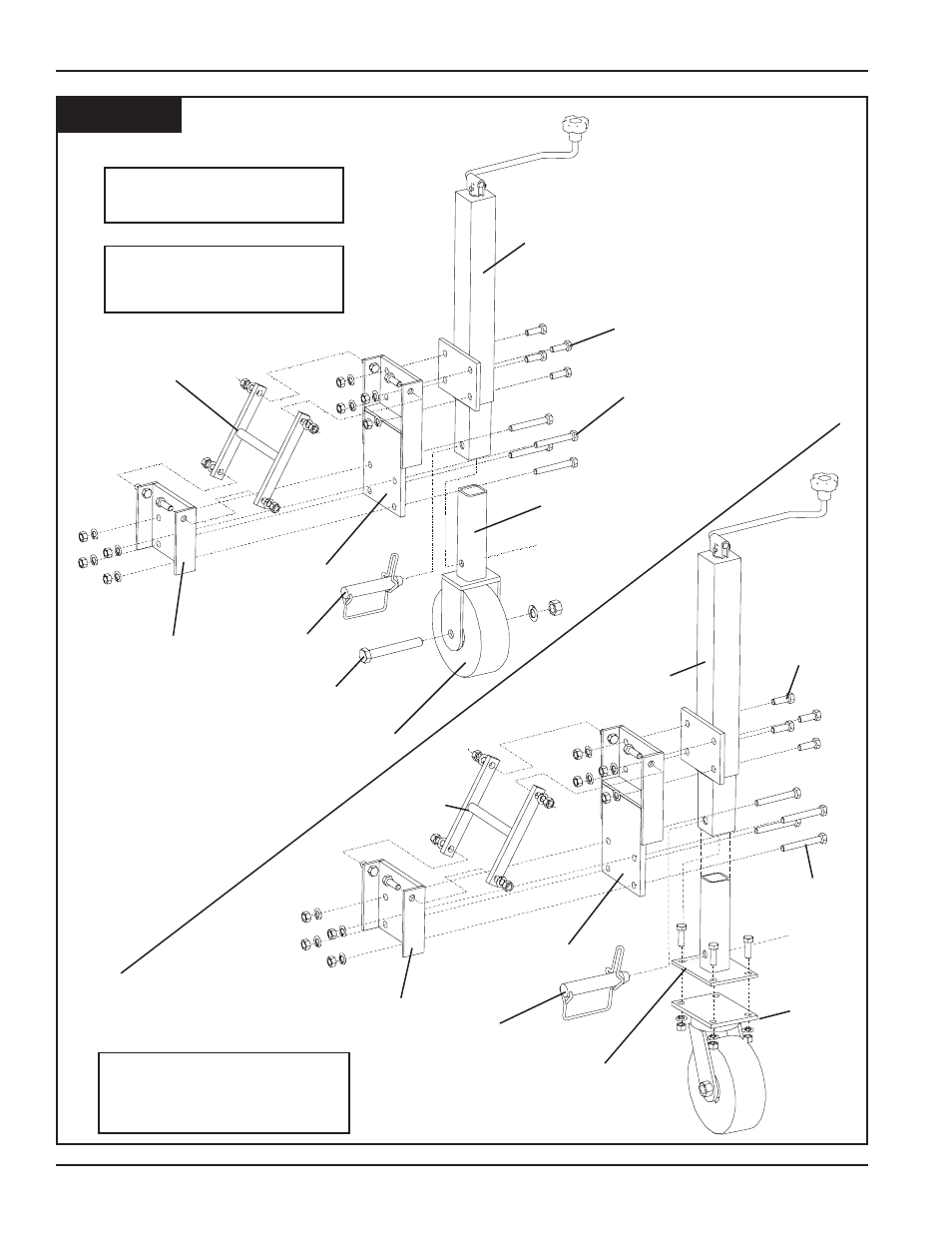

12" & 16" Series II Sweep PNEG-720-G2
Assembly
FIG. 16-A
12" JACK SUPPORT
OLD STYLE 16"
JACK SUPPORT
BEFORE 11-01-04
caster wheel
jack assembly
jack truss
jack mount plate
jack mount
assembly
1/2" x 3-3/4" HHCS
1/2" x 1-1/2"
HHCS
3/4" x 5-1/2"
sweep jack
caster
assembly
swivel
caster
jack assembly
jack truss
jack mount plate
jack mount
assembly
1/2" x 3-3/4"
HHCS
1/2" x 1-1/2"
HHCS
sweep jack
caster assembly
pin
pin
16" JACK SUPPORT
AFTER 11-01-04
