Assembly
23 PNEG-720-G2 12" & 16" Series II Sweep
B. Bolt the hanger brackets to the back
shields using two (2) 5/8"-11 x 2"
hex bolts, two (2) square washers, two
(2) lockwashers, and two (2) hex nuts.
A. Bolt the nylon bearings and hanger brack-
ets to the connecting stubs using hex bolts,
lockwashers, and hex nuts.
12" Two (2) 5/8"-11 x 2" Hex Bolts
16" Two (2) 1/2"-13 x 2 1/4" Hex Bolts

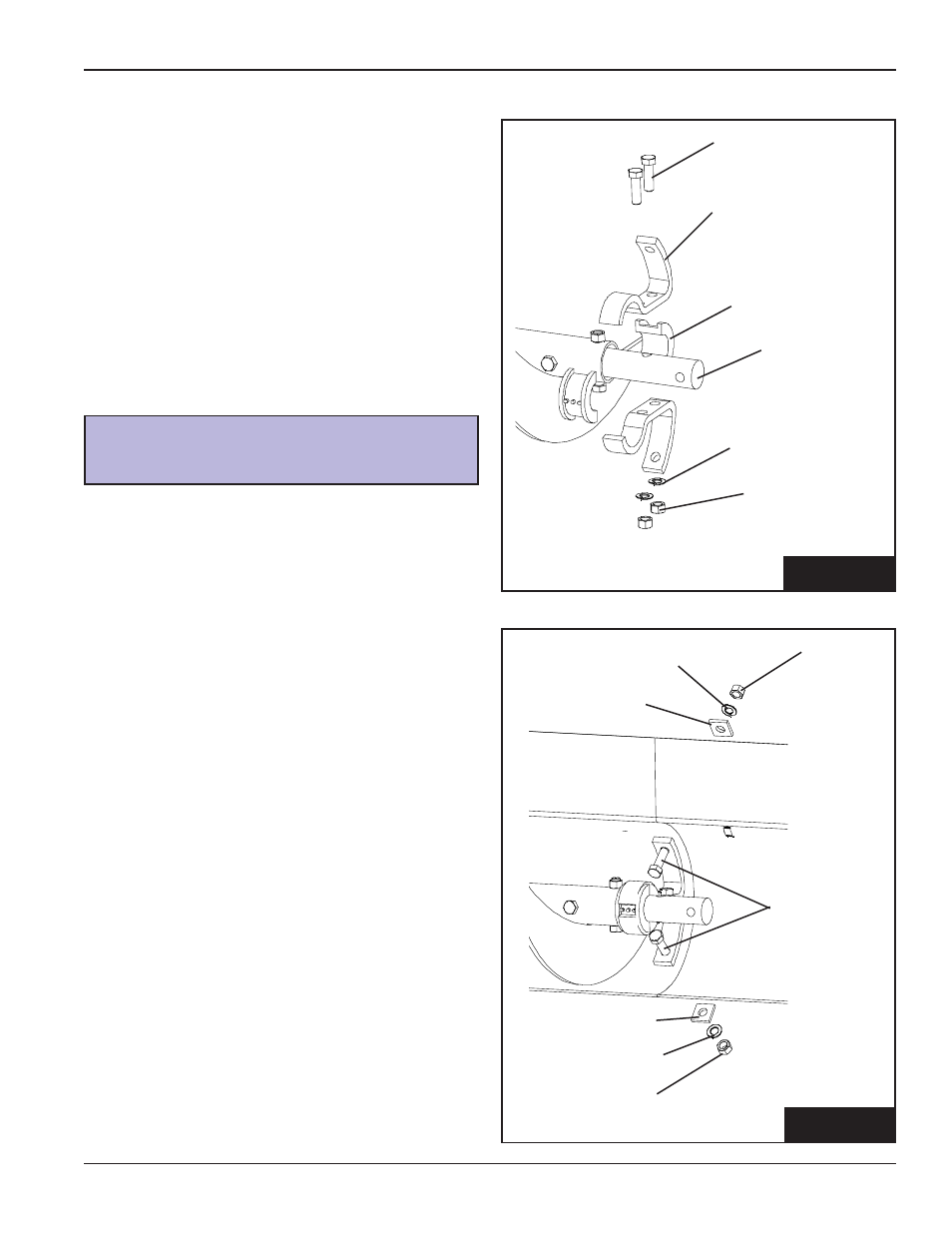

3. HANGER BRACKET ASSEMBLY
lockwasher
nylon bearing
hanger bracket
hex bolt
hex nut
connecting
stub
FIG. 3-A
5/8"-11
hex nut
5/8" lockwasher
square washer
5/8"-11x 2"
hex bolt
FIG. 3-B
5/8"-11 hex nut
5/8" lockwasher
square washer
