30

12" & 16" Series II Sweep PNEG-720-G2

Assembly

drive axle

7/16" hex nuts

7/16"
lockwashers

Rotation
Direction
of Tires

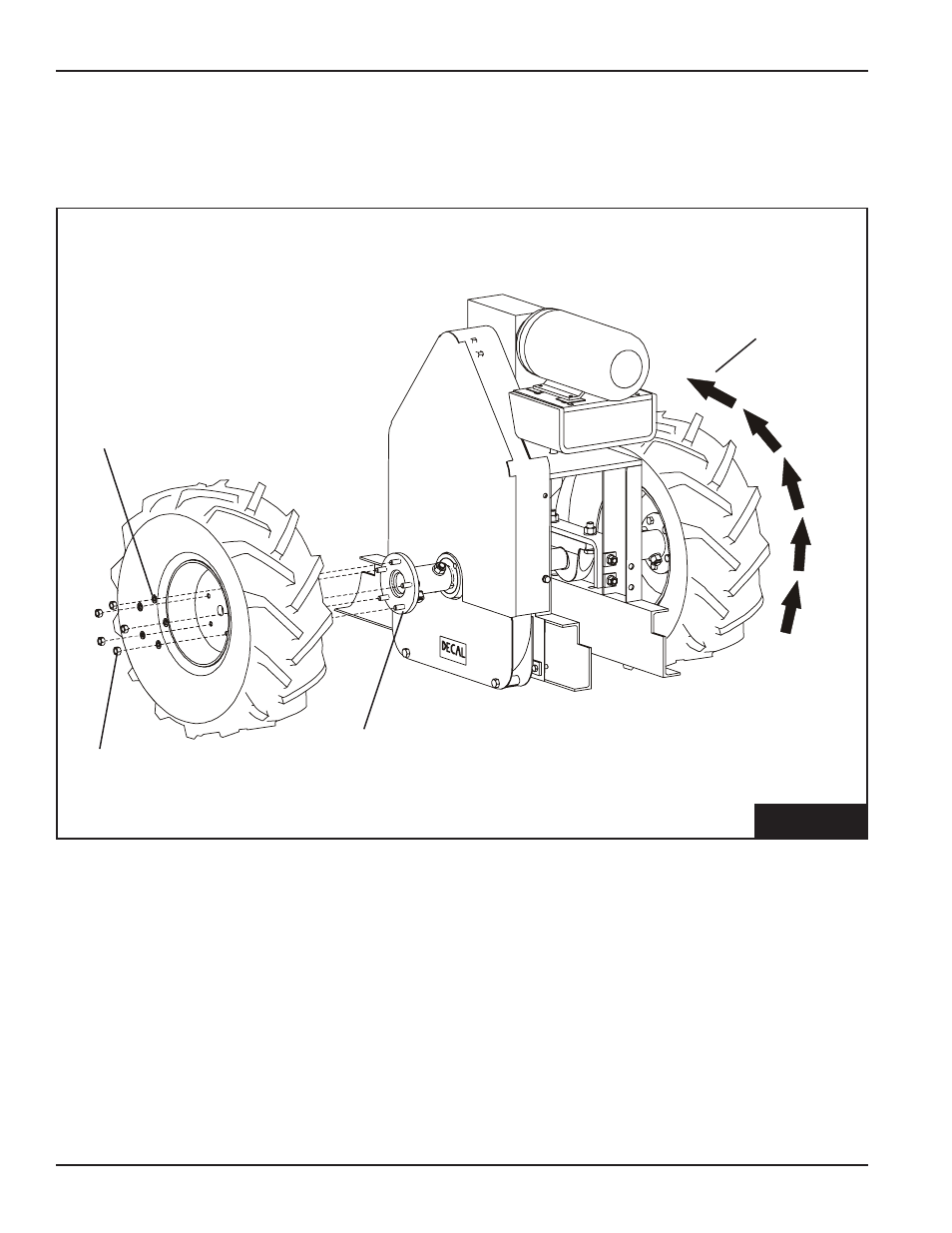

FIG. 10

NOTE: Tires go on backwards as shown.

A. Assemble the tires to the drive axle assembly using ten (10) 7/16" lockwashers, and hex nuts.

(See Fig 10)

10. TRACTOR WHEEL ASSEMBLY
