Assembly

PNEG-1579 12" & 16" Series II Sweep Special

29

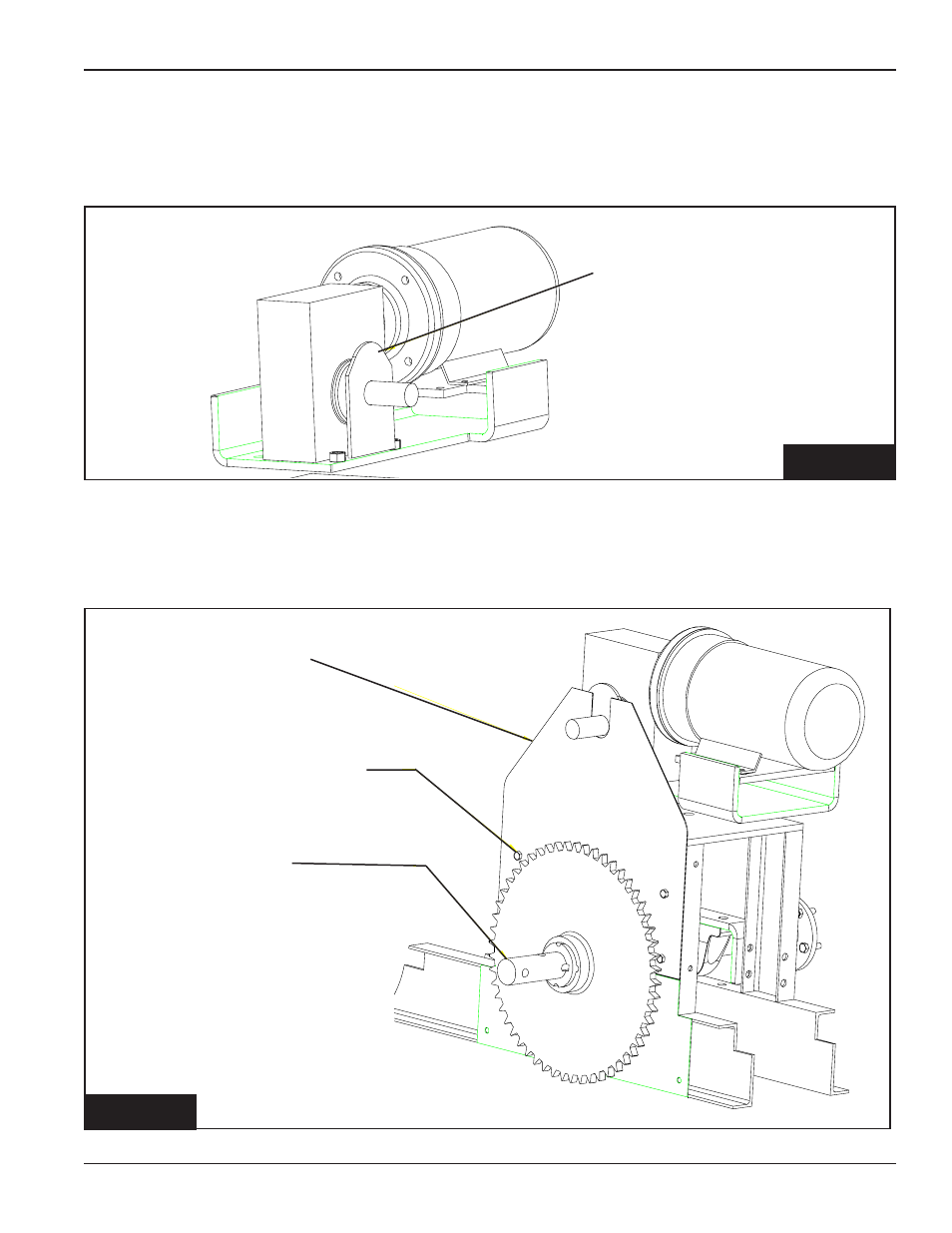

A.

Slide the Chain Guard Top Seal (GC11978) over the Gear Reducer Output Shaft before installing any

other components. Fig. TD1

9. GUARD ASSEMBLY

FIG. TD1

Slide Seal on
Reducer Shaft
Before Installing
Upper Guard Plate

B.

Attach the Guard Plate to the Tractor Drive Stand Legs using 3/8" bolts, lockwashers, and hex nuts

before attaching the Drive Sprocket (See Fig TD2)

C.

Remove the Wheel Hub Assembly on the sprocket side only

Attach Guard Plate
to Tractor Drive
Stand Legs

Use 3/8"-16 Bolts, 3/8"-16 Lock
Washers and 3/8" Hex Nuts

Remove Wheel Hub
Assembly this Side Only

FIG. TD2
