28 12" & 16" Series II Sweep PNEG-720-G2
Assembly
56C Frame Four (4) 3/8"-16 x 1 1/4" Hex Bolts & 3/16" x 3/16" x 1" Key
143TC Frame Four (4) 3/8"-16 x 1 1/4" Hex Bolts & 3/16" x 3/16" x 1" Key
182TC Frame Four (4) 1/2"-13 x 1 1/4" Hex Bolts & 1/4" x 1/4" x 1" Key

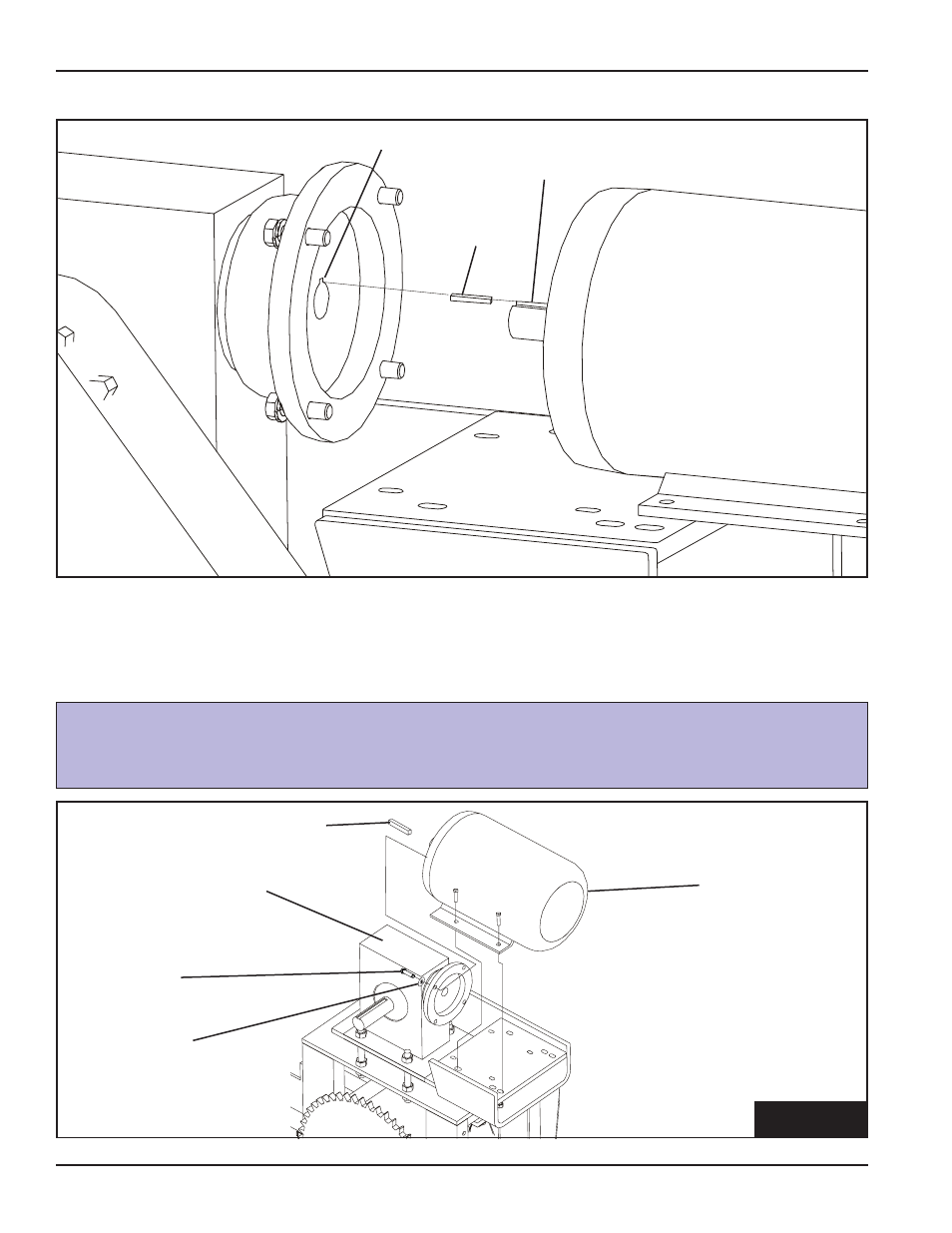

A. Bolt the C-Face motor to the reducer using hex bolts, lockwashers, and a key.
(See note below for bolt size.)
lockwasher
C-Face Reducer
hex bolt
motor
key
FIG. 8-B
8-B. INSTALL TRACTOR DRIVE MOTOR
Key
Keyway on Drive Shaft
Keyway on Reducer
FIGURE 8A-4
