OPERATION

Fill Guide

Fill Guide is

enabled only

when Fill Guide

Function is selected under the Setup menu.
Refer to page 46. To set options, refer to
page 55, Fill Options under the Setup
Options submenu.

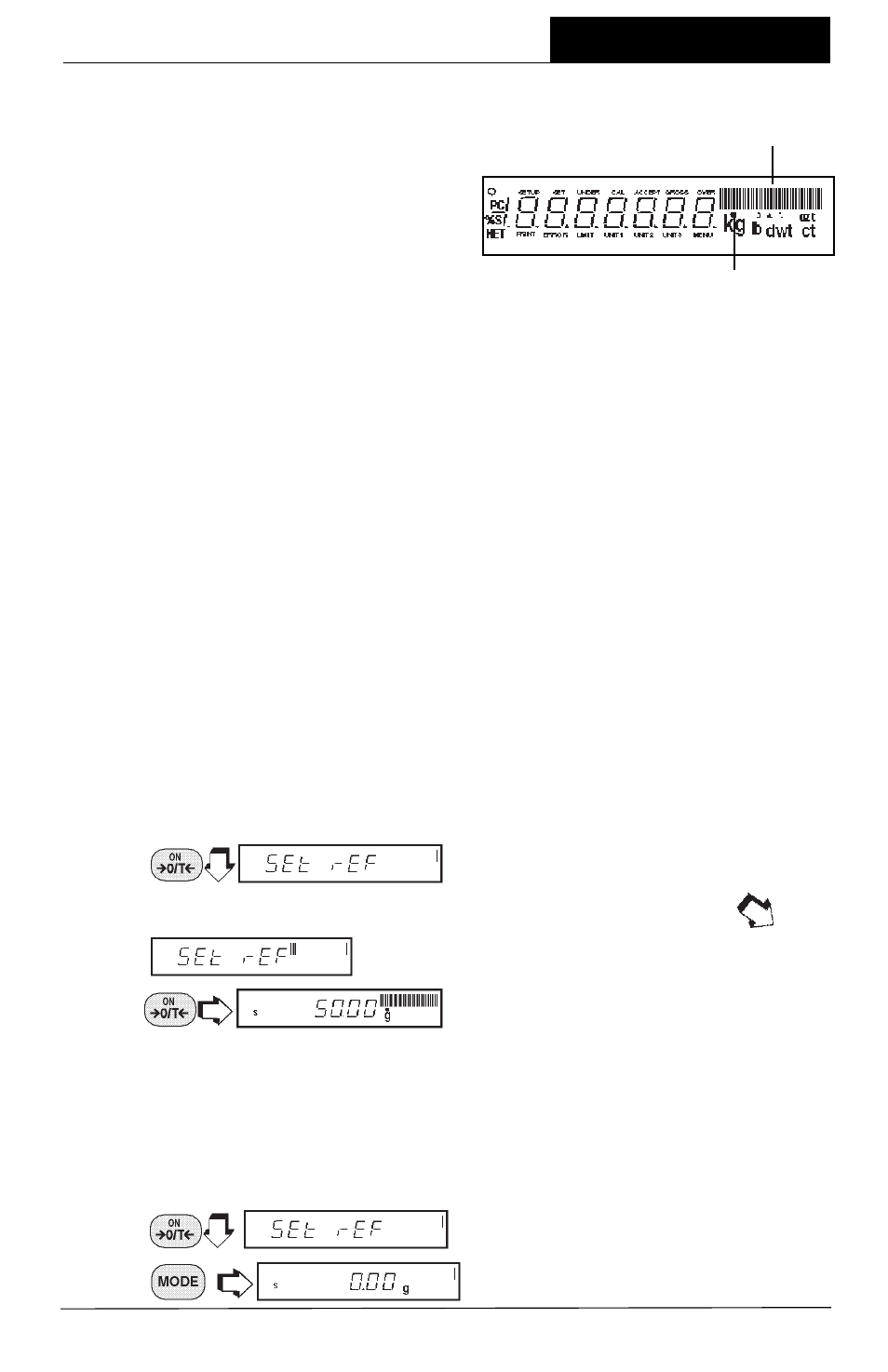

The FillGuide

is a bar graph which ap-

pears in the upper right hand portion of the
display. When the load on the balance is at the balance's capacity, all of the segments
are on. When the load is at half capacity, only the first half of the segments are on.
During normal operation of the balance, the bar graph displays the relationship
between the load on the pan and the capacity of the balance. In the Fill Guide mode,
the bar graph can be set to a desired target value. The FillGuide

feature can be used

in any one of the available weighing units.

The Fill Option under the Setup Options submenu provides two choices for a reference
weight (similar to check weighing). Either a mass can be placed on the pan and used
as a reference weight or a number can be entered to establish the weight value. Both
methods are used to establish a reference for a 100% bar graph reading. Target
parameter provides two choices, one is fill to the reference weight. The other option
sets the reference weight to a negative value and allows the operator to see the delta
between the actual fill weight and the target weight.

With the balance in a weighing mode, proceed as follows:

Reference Weight

With the balance in a weighing mode, and if reference weight was selected under Fill
Options submenu proceed as follows:

2. Place a sample weight on the pan which is the reference weight

. Assumes 50 grams weight reference.

. The display indicates a 50 gram mass

(target = reference. For target = to zero, display shows 0.0000 as the actual
weight of the sample with the bar graph at 100%.

4. The Fill Guide feature can now used by placing samples on the pan. If the

sample is equal to the reference weight used to calibrate the fill mode, the

actual

weight is displayed with a full bar graph. When target is selected, the

balance

will show the normal weight of the object on the pan.

to exit the fill option mode.

, the balance is now in a weighing mode.

FILLGUIDE

BAR GRAPH

FILLGUIDE

INDICATOR
