Ohaus GT Series Electronic Balance - Manual (Page 119)

2
INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION
This supplement describes the basic differences for Models GT310, GT310E and
GT310V which are not covered in the GT Series Instruction Manual.
UNPACKING UNPACKING UNPACKING UNPACKING UNPACKING
Your Precision Advanced balance was shipped with the following items:
•
Platform
•
Platform Support
•
Power Cord
•
Below Balance Weighing Hook
•
Draft Shield
•
Instruction Manual
•
Warranty Card
•
In-Service Cover
It is recommended to save the carton and packing material for storing, transporting the
balance or returning it for service.
Draft Shield Draft Shield Draft Shield Draft Shield Draft Shield
To install the Draft Shield:
1. Remove the two existing screws and
washers located on top of the bal-
ance.
2. Position the Draft Shield on top of the
balance as shown.
3. Insert the two screws, with washers
(supplied with the Draft Shield) though
the holes in the Draft Shield into the
balance. Tighten both screws se-
curely.
Platform and Platform Support Platform and Platform Support Platform and Platform Support Platform and Platform Support Platform and Platform Support
Insert the Platform Support into the hole in
the weighing mechanism as shown in the
illustration.
Place the Platform on the Platform Sup-
port making sure the Platform is properly
centered.

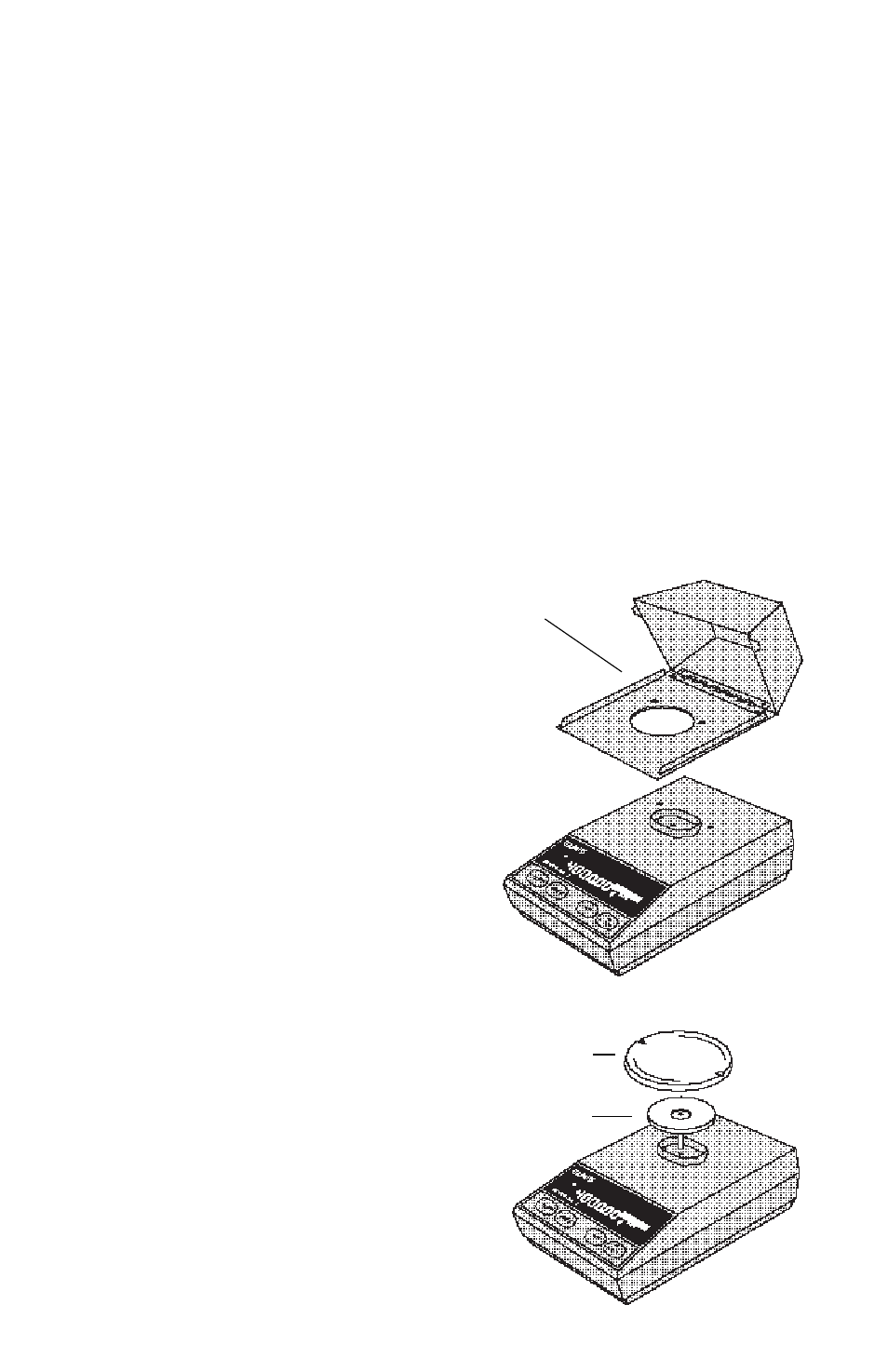

DRAFT SHIELD
PLATFORM
PLATFORM
SUPPORT
