26 MB45

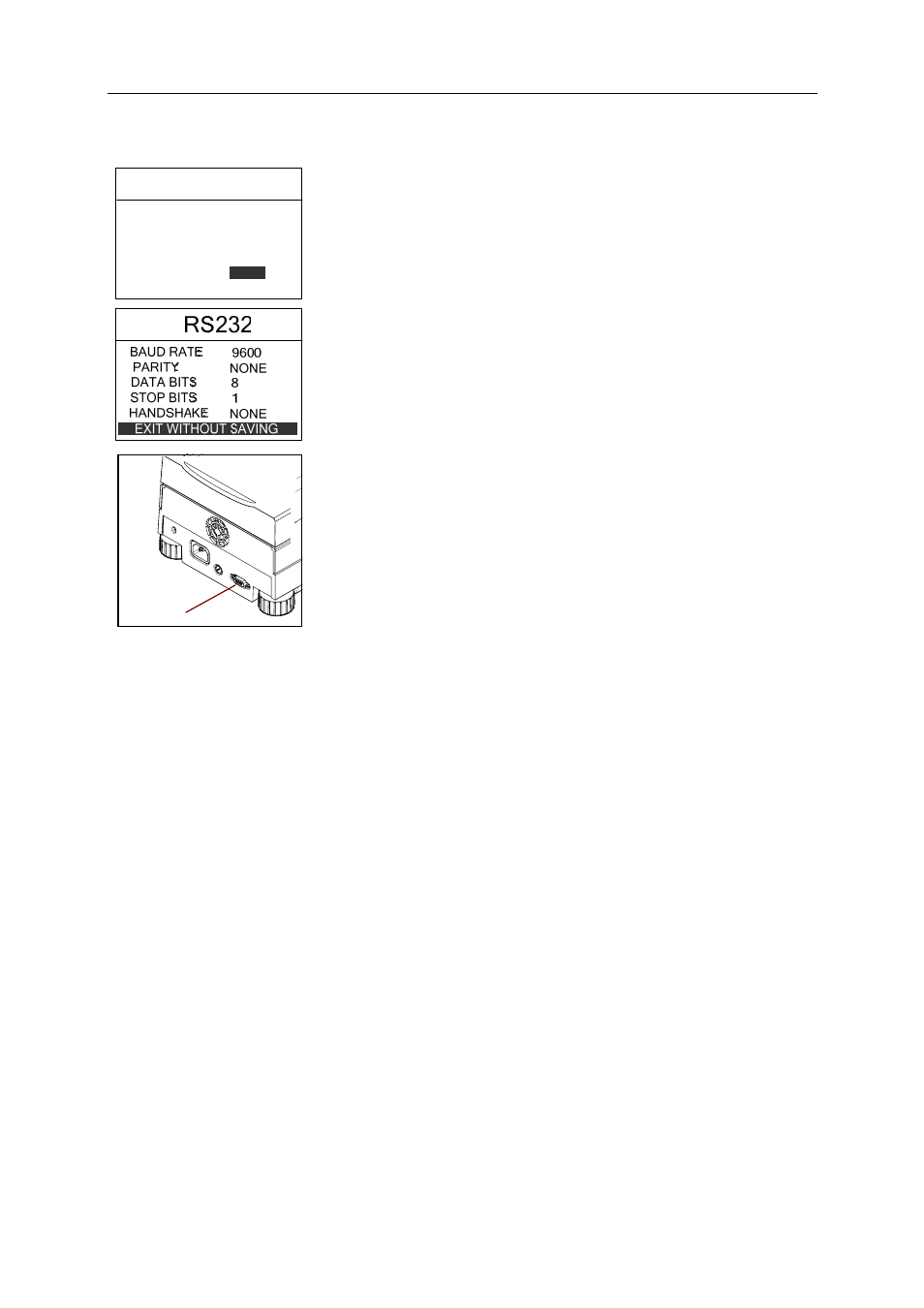

5.7 RS232 settings (cont)
RS232
9600
NONE
8
1
NONE
BAUD RATE:
PARITY:
DATA BITS:
STOP BITS:
HANDSHAKE:
EXIT WITHOUT SAVING
Setting handshake
Press the right arrow button to advance to HANDSHAKE. Using the
up/down arrow buttons, select the desired handshake of NONE, X ON-X
OFF, or RTS-CTS. Default setting is NONE. Press Enter button to save,
display advances to PRINT.
Exit without saving
Using the right arrow button, advance to EXIT WITHOUT SAVING and
press the Enter button. The display returns to ANALYZER SETUP.
Hardware
On the rear of the Moisture Analyzer is a 9-pin female subminiature “D”
connector provided for interfacing to other devices. Refer to the accessory
list at the rear of this manual for a proper cable.
Section 9.2 illustrates the pinout connections on the RS232 connector.
RS232 Connection
