Chapter 4 The Web Configurator
GS-4012F/4024 User’s Guide
56

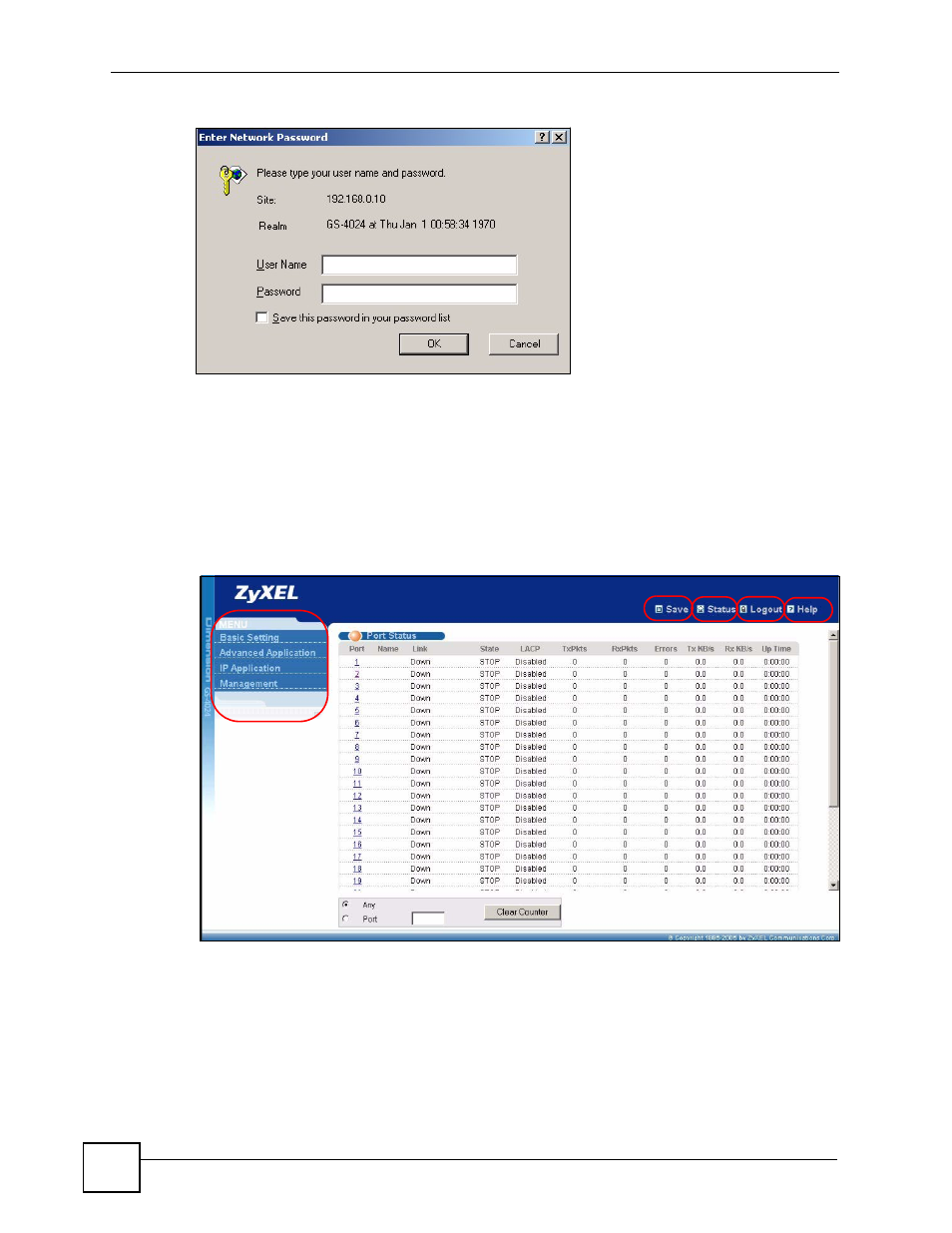

Figure 18 Web Configurator: Login
4 Click OK to view the first web configurator screen.
4.3 The Status Screen
The Status screen is the first screen that displays when you access the web configurator.
The following figure shows the navigating components of a web configurator screen.
Figure 19 Web Configurator Home Screen (Status)
A - Click the menu items to open submenu links, and then click on a submenu link to open the
screen in the main window.
B, C, D, E - These are quick links which allow you to perform certain tasks no matter which
screen you are currently working in.
B - Click this link to save your configuration into the Switch’s nonvolatile memory.
Nonvolatile memory is the configuration of your Switch that stays the same even if the
Switch’s power is turned off.
A
B C D E
