Chapter 32 Differentiated Services
GS-4012F/4024 User’s Guide
254
32.3 Activating DiffServ
Activate DiffServ to apply marking rules or IEEE 802.1p priority mapping on the selected
port(s).
Click IP Application > DiffServ in the navigation panel to display the screen as shown.

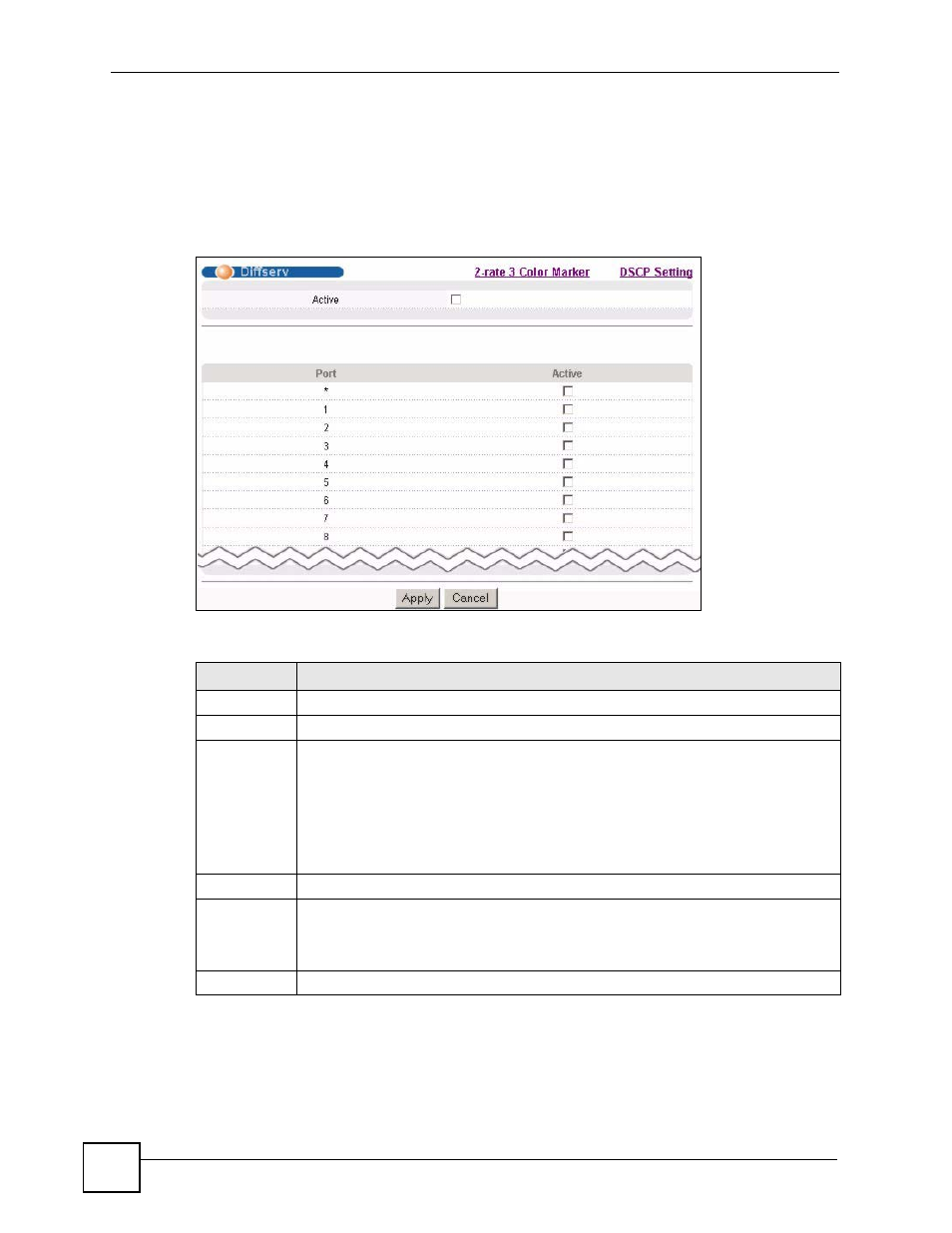

Figure 141 IP Application > DiffServ
The following table describes the labels in this screen.
32.3.1 Configuring 2-Rate 3 Color Marker Settings
Use this screen to configure TRTCM settings. Click the 2-rate 3 Color Marker link in the
DiffServ screen to display the screen as shown next.
Table 96 IP Application > DiffServ
LABEL DESCRIPTION
Active Select this option to enable DiffServ on the Switch.
Port This field displays the index number of a port on the Switch.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all ports. Use this
row first to set the common settings and then make adjustments on a port-by-port
basis.
Note: Changes in this row are copied to all the ports as soon as you
make them.
Active Select Active to enable DiffServ on the port.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the non-volatile memory when you are done
configuring.
Cancel Click Cancel to begin configuring this screen afresh.
