Chapter 8 VLAN

GS-4012F/4024 User’s Guide

101

"

In screens (such as IP Setup and Filtering) that require a VID, you must enter
1 as the VID.

The port-based VLAN setup screen is shown next. The CPU management port forms a VLAN
with all Ethernet ports.

8.8.1 Configure a Port-based VLAN

Select Port Based as the VLAN Type in the Switch Setup screen and then click VLAN
from the navigation panel to display the next screen.

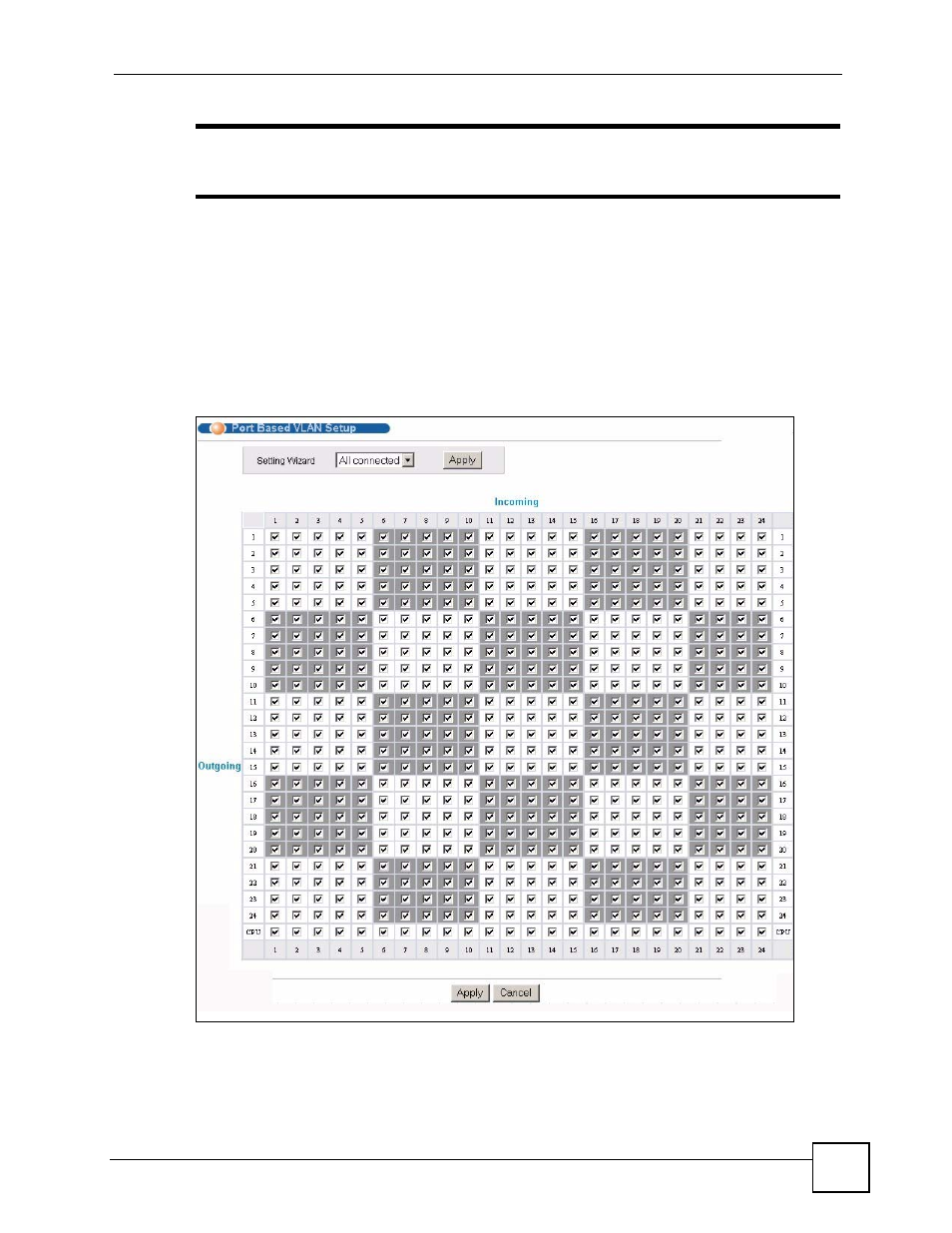

Figure 41 Port Based VLAN Setup (All Connected)
