Chapter 28 OSPF
GS-4012F/4024 User’s Guide
232

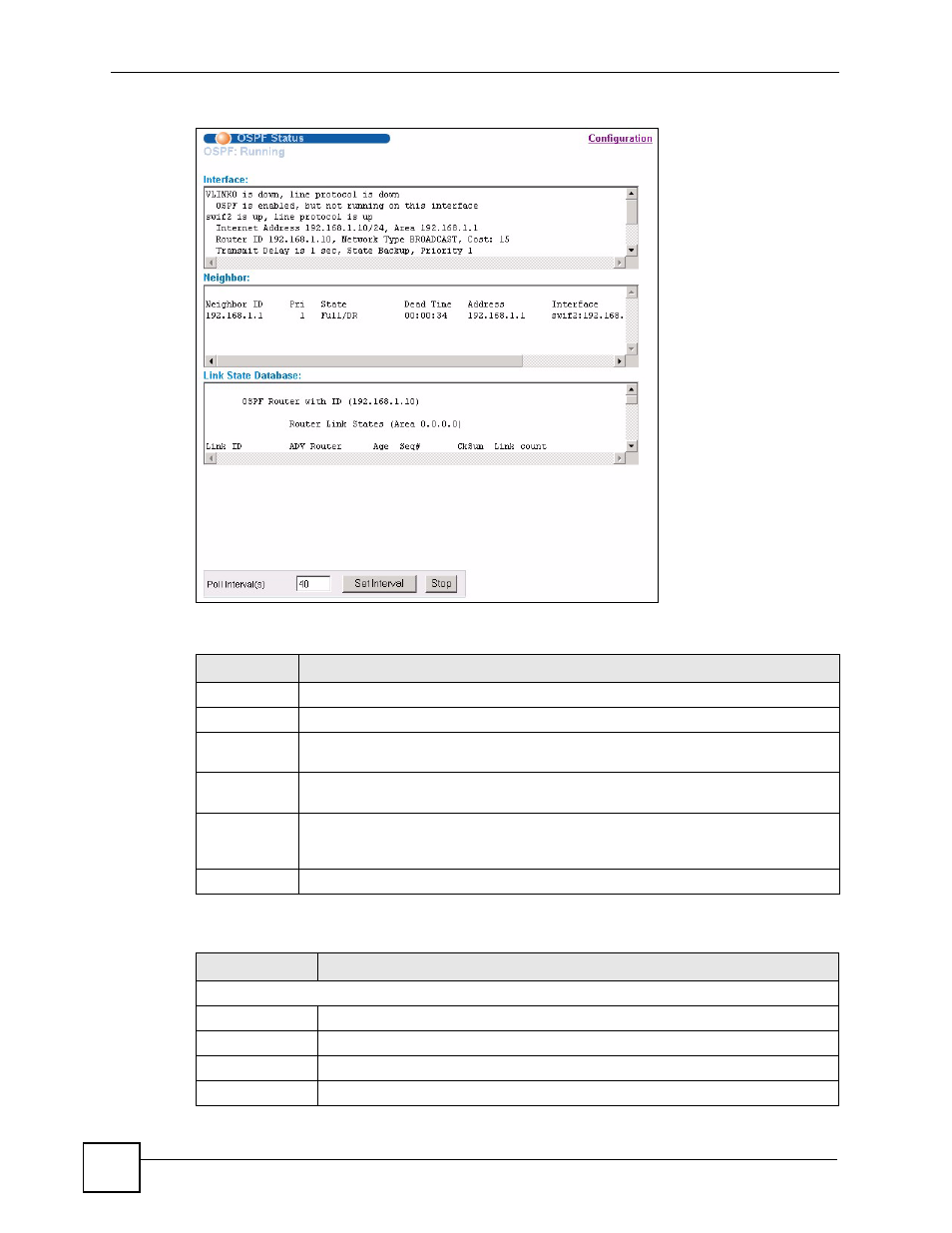

Figure 121 OSPF Status
The following table describes the labels in this screen.
The following table describes some common output fields.
Table 85 OSPF Status
LABEL DESCRIPTION
OSPF This field displays whether OSPF is activated (Running) or not (Down).
Interface The text box displays the OSPF status of the interface(s) on the Switch.
Neighbor The text box displays the status of the neighboring router participating in the OSPF
network.
Link State
Database
The text box displays information in the link state database which contains data in the
LSAs.
Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may change
the refresh interval by typing a new number in the text box and then clicking Set
Interval.
Stop Click Stop to end OSPF status polling.
Table 86 OSPF Status: Common Output Fields
FIELD DESCRIPTION
Interface
Internet Address This field displays the IP address and subnet bits of an IP routing domain.
Area This field displays the area ID.
Router ID This field displays the unique ID of the Switch.
Transmit Delay This field displays the transmission delay in seconds.
