Chapter 6 Tutorials
NBG420N User’s Guide
81
6.2.1 Configuring Bob’s NBG420N VPN Settings
To configure these settings Bob uses the NBG420N web configurator.
1 Log into the NBG420N web configurator and click VPN > Modify icon. This displays
the VPN Rule Setup (basic) screen.
2 Select the Active checkbox to enable the VPN rule after it has been created. Make sure
IKE is selected as the IPSec Keying Mode.

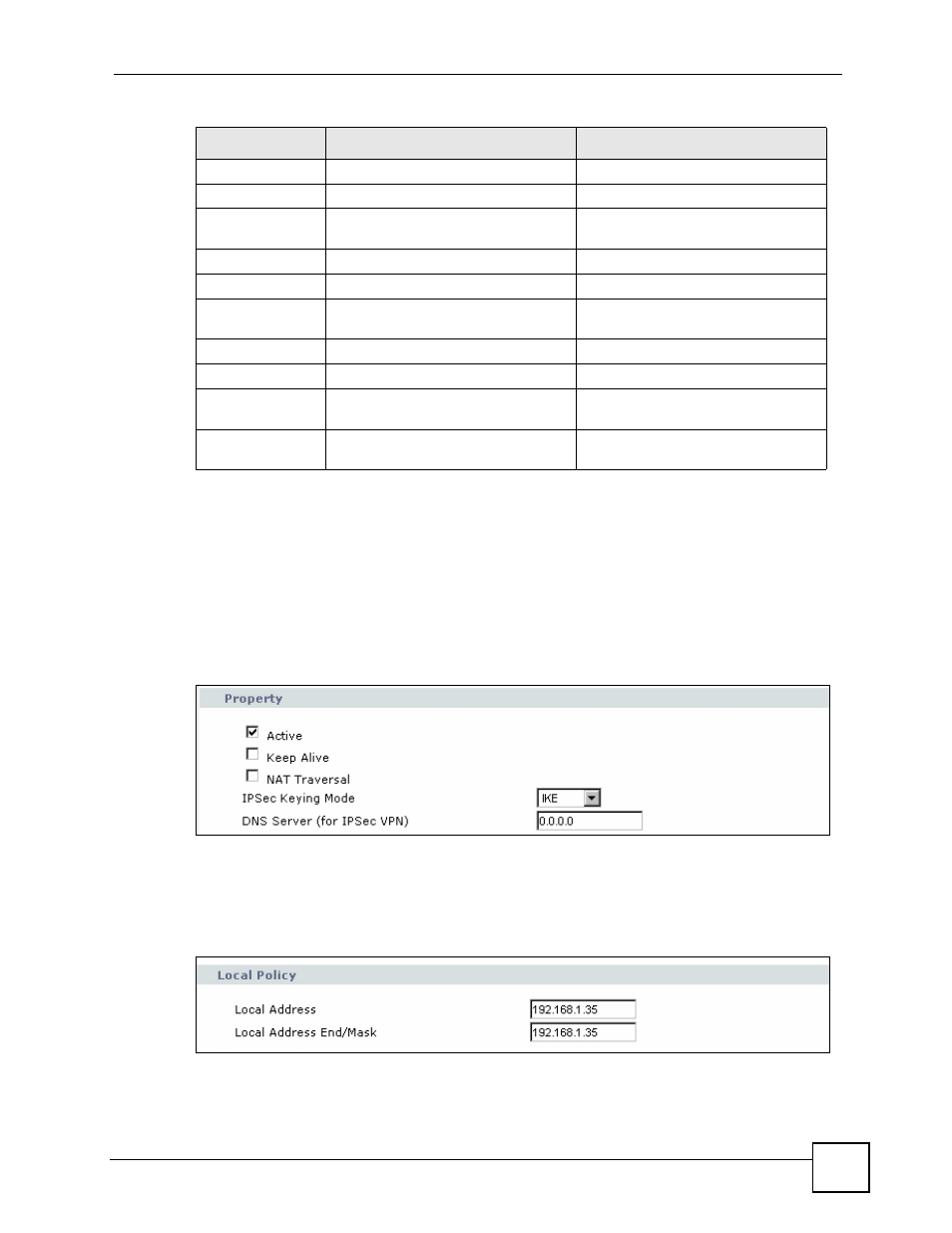

Figure 45 Property
3 Enter the IP address “192.168.1.35” in the Local Address text box. This is the IP
address of Bob’s computer. Enter the IP address “192.168.1.35” in the Local Address
End/Mask text box. This value is the same as Bob only wants Jack to access this single
IP address.
Figure 46 Local Policy
4 Enter the IP address “10.0.0.7” in the Remote Address Start text box. This is the IP
address of Jack’s computer. Enter the IP address “10.0.0.7” in the Remote Address
Local ID Type IP IP
Local Content 1.1.1.1 2.2.2.2
Secure Gateway
Address
2.2.2.2 1.1.1.1
Peer ID Type IP IP
Peer Content 2.2.2.2 1.1.1.1
Encapsulation
Mode
Tunnel Tunnel
IPSec Protocol ESP ESP
Pre-Shared Key ThisIsMySecretKey ThisIsMySecretKey
Encryption
Algorithm
3DES 3DES
Authentication
Algorithm
SHA1 SHA1
Table 26 Site-To-Site VPN Tunnel Settings (continued)
SETTING BOB’S NBG420N JACK’S NBG420N
